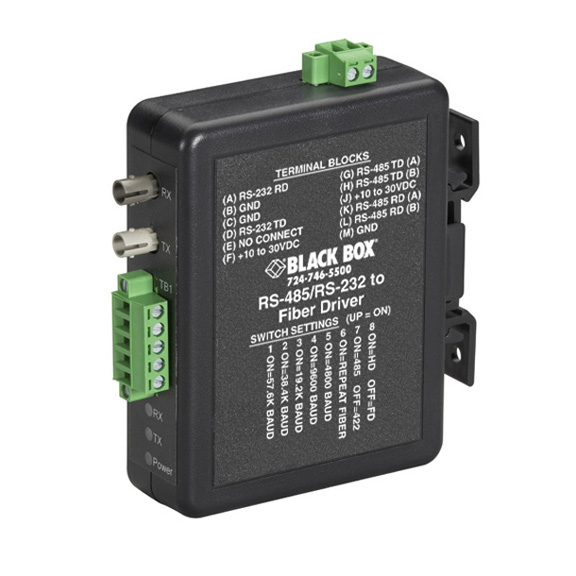

MED101A

Photo may show similar product

Other views

Industrial DIN Rail RS-232/RS-422/RS-485 to Fiber Driver

Choose this heavy-duty fiber driver for industrial environments.

MED101A

Extended Double Diamond™ Warranty Available
(3 Additional Year)

Product Highlights

  • UL® approved.
  • Three-way isolation, 2000-V input/output.
  • Great for use in harsh environments. Operates from -40° to +185° F (-40° to +85° C).
  • Enables any two async serial devices to communicate half- or full-duplex over two multimode ST® fibers at distances up to 2.5 miles (4 km).


  • Description

    Industrial DIN Rail RS-232/RS-422/RS-485 to Fiber Driver


    Quick Facts

  • UL® approved.
  • Three-way isolation, 2000-V input/output.
  • Great for use in harsh environments. Operates from -40° to +185° F (-40° to +85° C).
  • Enables any two async serial devices to communicate half- or full-duplex over two multimode ST® fibers at distances up to 2.5 miles (4 km).

  • Further Details

  • RS-232 signals are supported up to 115.2 kbps; RS-422 or RS-485 signals are supported up to 460.8 kbps.
  • Fiber optic cabling makes it immune to EMI/RFI and transient surges. It's ideal for data communications near heavy electrical equipment and other electrical or radio interference!
  • Replaces converters and isolators when you connect remote equipment.
  • Modbus ASCII or RTU compatible.
  • Automatic Send Data Control eliminates the need for driver software.
  • Removable terminal blocks.
  • Conveniently mounts on an optional DIN Rail.


  • Technical Specifications for Industrial DIN Rail RS-232/RS-422/RS-485 to Fiber Driver:

    Distance (Maximum) 2.5 mi. (4 km)
    Operating Environment Temperature: -40° to +185° F (-40° to +85° C);
    Humidity: Up to 95% noncondensing
    Operation RS-232: Half- or full-duplex;
    RS-422: Full-duplex;
    RS-485: 2-wire half-duplex or 4-wire full-duplex;
    Fiber ring: Half-duplex over multimode;
    All transmissions are async
    Speed RS-232: Up to 115.2 kbps;
    RS-422/RS-485: Up to 460.8 kbps
    CE Approval Yes
    Connectors (2) 5-position terminal blocks, (1) pair of ST
    Power +10 to -48 VDC (±20%) or from optional DIN Rail 12-VDC Power Supply (PSD100)
    Size 4.9"H x 4.5"W x 1.3"D (12.4 x 11.4 x 3.3 cm)
    This product works with:
  • DIN Rail (DR100)
  • DIN Rail 12-VDC Power Supply (PSD100)
