Industrial > Converters

click photo to enlarge

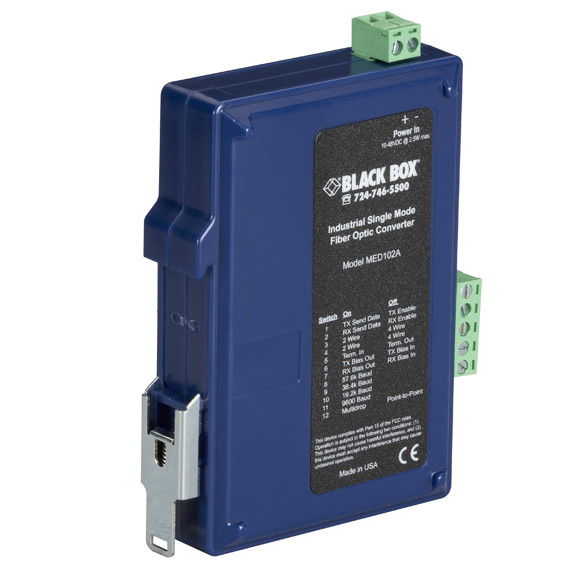

MED102A

Photo may show similar product

Other views

Industrial DIN Rail RS-232/RS-422/RS-485 Fiber Driver, Single-Mode

Extend industrial communications up to nine miles.

MED102A


Five year Warranty

Product Highlights

  • Supports serial data rates to 115.2 kbps.
  • Extends communications up to 9 miles (15 km).
  • IP30-rated, industrial, DIN-mounted enclosure.
  • 3 Way 2kv optical isolation.
  • Modbus ASCII or RTU compatible.
  • Removable terminal blocks.

  • Description

    Industrial DIN Rail RS-232/RS-422/RS-485 Fiber Driver, Single-Mode


    Quick Facts

  • Supports serial data rates to 115.2 kbps.
  • Extends communications up to 9 miles (15 km).
  • IP30-rated, industrial, DIN-mounted enclosure.
  • 3 Way 2kv optical isolation.
  • Modbus ASCII or RTU compatible.
  • Removable terminal blocks.

  • Further Details

    The MED102A is our premium serial to single-mode fiber optic converter. It provides versatile connections between asychronous full- or half-duplex serial equipment using duplex single-mode fiber optic cable. The converter can also be set up in a multi-drop configuration to allow one serial device to communicate with multiple devices on a fiber ring. It supports mixed standards, which allows you to replace other converters and isolators and add the EMI/RFI protection inherent to fiber optic communications.


    Technical Specifications for Industrial DIN Rail RS-232/RS-422/RS-485 Fiber Driver, Single-Mode:

    Bus Compatibility — MODBUS ASCII or RTU
    Data Rate — Up to 115.2 kbps
    Enclosure — IP30 Plastic Case
    Isolation — 2 KV RMS for 1 Minute 3 Way
    Range —9 mi. (14.4 km)
    CE — Yes
    Interface — RS-232/422/485
    Connectors — (1) 2-position terminal block, (1) 5-position terminal block, (1) duplex single-mode SC
    Power — Input: 10 to 48 VDC, external;
    Consumption: 1.4 W
    Size — 3.5"H x 1.2"W x 5.0"D (8.9 x 3 x 12.8 cm)
    Weight — 0.5 lb. (0.2 kg)


    NOTE: Technical specification weight is the unit weight. It is not the packaged shipping weight. For shipping weight, please contact Black Box customer service at 877-877-2269.


    Resources for Industrial DIN Rail RS-232/RS-422/RS-485 Fiber Driver, Single-Mode:


    Connect your Industrial DIN Rail RS-232/RS-422/RS-485 Fiber Driver, Single-Mode with:

    Accessory: MED100A

    DIN Rail RS-232/RS-485 to Fiber Driver

    DIN Rail RS-232/RS-485 to Fiber Driver

    Accessory: BC00200

    DB9 Serial Extension Cable, Male/Female, 6-ft. (1.8-m)

    DB9 Serial Extension Cable, Male/Female, 6-ft. (1.8-m)

    Accessory: PSD100-R2

    DIN Rail 12-VDC Power Supply

    DIN Rail 12-VDC Power Supply

    Accessory: IC980

    DB25 to Terminal Block Adapter

    DB25 to Terminal Block Adapter

    Accessory: ERN24A-0500

    Individually Shielded Low-Capacitance Cable, Extra Distance, PVC Jacket, 24 Conductors (12 Pairs), 500-ft. (152.4-m)

    Individually Shielded Low-Capacitance Cable, Extra Distance, PVC Jacket, 24 Conductors (12 Pairs), 500-ft. (152.4-m)
