Datacom > Modems & CSUs

click photo to enlarge

Other views

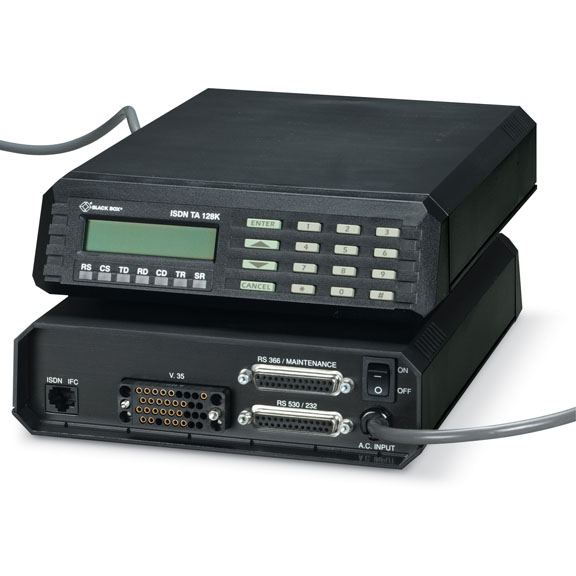

ISDN Terminal Adapter, 128K

Turn the two B channels of your ISDN line into a high-speed 128-kbps pipeline!

IS280A-R2-V

Extended Double Diamond™ Warranty Available
(Three years for two)

Product Highlights

Inverse multiplexing maximizes ISDN throughput rates to 128 kbps.

Built-in NTU makes the direct link to ISDN. No need to buy separate components.

Description

ISDN Terminal Adapter, 128K

Quick Facts

Inverse multiplexing maximizes ISDN throughput rates to 128 kbps.

Built-in NTU makes the direct link to ISDN. No need to buy separate components.

Further Details

Supports front-panel keypad, V.25 bis, AT commands, dial-on-DTR, and RS-366 dialing.

Automatic dialing from up to 10 stored numbers.

The U interface protects the Terminal Adapter from lightning spikes.

Optimal for high-speed applications such as LAN bridging or routing.

Think of it as a high-speed dialup modem for ISDN. The ISDN Terminal Adapter 128K packs all the perks of a full-featured ISDN terminal adapter: front-panel LCD menu configuration and diagnostics, plus support for sync and async data. But what really sets it apart is inverse multiplexing.

In high-speed applications such as bridging and routing, the TA 128K supports 128 kbps on a single port (over both B channels) using the "BONDING" standard. Your network gets high-speed bandwidth-on-demand capability. The TA 128K can communicate with Switched 56K services and use the V.120 rate-adaptation standard, so there's no problem communicating with sites that don’t have ISDN service.

Dialing options to support any application.
The TA 128K accommodates many different dialing standards. The RS-366 dialing port matches most videoconferencing systems. Dial-on-DTR is compatible with bridges and routers with BONDing features. V.25 bis in-band dialing supports IBM® SNA systems like mainframes and the AS/400®. PCs can use standard communication packages like ProComm® Plus and Winfax® since the TA 128K has AT Command Set compatibility. The built-in keypad supports manual dialing.

This product works with:
• RS-232 Cable, 25-Conductor (ECM25C)
• V.35 Interface Cable, Male/Male (EYN450)
Questions? Contact Tech Support.

Technical Specifications for ISDN Terminal Adapter, 128K:

Protocol — DTE: Async or sync;
BRI: 2B1Q
Speed (Maximum) — Async: 115.2 kbps;
sync: 128 kbps
Standards — ITU: V.120, T-Link;
Northern Telecom®: DMS-100;
AT&T®: 5ESS central office switches
Interface — RS-530 or V.35, RS-366, RS-232
Connectors — (2) DB25 F, (2) RJ-45, (1) M/34 F
Power — 115 VAC, 60 Hz
Size — 2.3“H x 8.8“W x 11“D (5.8 x 22.4 x 27.9 cm)
Weight — 3 lb. (1.4 kg)

This product works with:
• RS-232 Cable, 25-Conductor (ECM25C)
• V.35 Interface Cable, Male/Male (EYN450)
Questions? Contact Tech Support.

NOTE: Technical specification weight is the unit weight. It is not the packaged shipping weight. For shipping weight, please contact Black Box customer service at 877-877-2269.

Resources for ISDN Terminal Adapter, 128K:

Product Data Sheets

ISDN Terminal Adapter 128K

Connect your ISDN Terminal Adapter, 128K with:

Standard RS-232 Low-Noise Cable, 25 Conductors—Pins 1–25, Male/Male, 10-ft. (3.0-m)

Standard RS-232 Low-Noise Cable, 25 Conductors—Pins 1–25, M/M, 10-ft. (3.0-m)

» more info

V.35 Interface Cable (34-Conductor), Straight-Pinned, PVC, Male/Male, 10-ft. (3.0-m)

» more info
