Voice Communications > IP PBX

click photo to enlarge

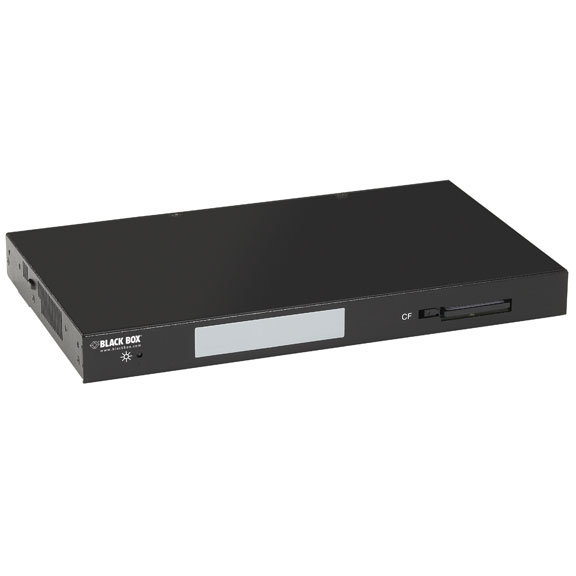

IPBX350A

Photo may show similar product

Other views

IP PBX Link-Up

A stand-alone IP PBX system for small offices—powerful, easy to use, and cost-effective.

IPBX350A


One year Warranty

Product Highlights

  • Sized for organizations with 3 to 50 phones.
  • Easy plug-and-play setup—automatically configures itself on initial startup.
  • Linux® based appliance hosts Asterisk® open source PBX software.

  • Description

    IP PBX Link-Up


    Quick Facts

  • Sized for organizations with 3 to 50 phones.
  • Easy plug-and-play setup—automatically configures itself on initial startup.
  • Linux® based appliance hosts Asterisk® open source PBX software.

  • Further Details

  • Supports up to 50 SIP extensions and up to 10 SIP trunks.
  • Integrates with desktop IP phones and expansion modules from Black Box (see Voice Communications>Voice over IP>SIP Phones at blackbox.com).

  • IP PBX Link-Up from Black Box is a simple, one-box appliance that provides VoIP phone service with full PBX/key system functionality to a small organization with up to 50 phones.

    The system features an auto-attendant and individual voicemail boxes and directs incoming calls to individuals or groups by extension dialing or name search—all of which can be preconfigured at Black Box for even more convenience. Its FXO ports can operate in a Shared Line Appearance (SLA), pooled, or mixed-line mode.

    The PBX telephony features include call forward, hold and hold alerts, call log, call transfer, three-way conferencing, and corporate and personal directories.

    Setup is easy—just plug the IP PBX Link-Up into your network, and it automatically discovers and configures connected IP phones.

    In addition, the system is scalable so it grows as your business grows. It hosts up to 50 extensions when SIP trunking is used. Daisychain up to nine Link-Up systems via IP to create a WAN-based, multisite office environment.

    This product works with:
  • Black Box Desktop IP Phones
  • Black Box Expansion Modules (DTIPM670I, DTIPM675I)
    Questions? Contact our FREE Tech Support.

  • Technical Specifications for IP PBX Link-Up:

    Codec — ITU G.711 PCM
    Environmental — Operating temperature: 32 to 104° F (0 to 40° C);
    Operating humidity: 10 to 85% noncondensing
    Management — Embedded Web server
    Protocols — SIP, RTP, RTCP, DTMF detection, TFTP, HTTP, DHCP, SMTP
    CE Approval — Yes
    RoHS — Yes
    Connectors — (6) RJ-11 FXO for connection to PSTN lines;
    (2) RJ-11 FXS analog;
    (2) RJ-45 100-Mbps Ethernet;
    (1) 3.5-mm audio input; (1) 3.5-mm audio output;
    (1) compact Flash slot;
    (1) 5-position terminal block
    Power — External power supply: 100–240 VAC, 50–60 Hz, 0.45 A secondary: 12 VDC 1.25A 15 W
    Size — 1.2"H x 11.8"W x 6.9"D (3 x 30 x 17.5 cm)
    Weight — 3.4 lb. (1.5 kg)
    This product works with:
  • Black Box Desktop IP Phones
  • Black Box Expansion Modules (DTIPM670I, DTIPM675I)
    Questions? Contact our FREE Tech Support.

    NOTE: Technical specification weight is the unit weight. It is not the packaged shipping weight. For shipping weight, please contact Black Box customer service at 877-877-2269.
