Datacom > Converters

click photo to enlarge

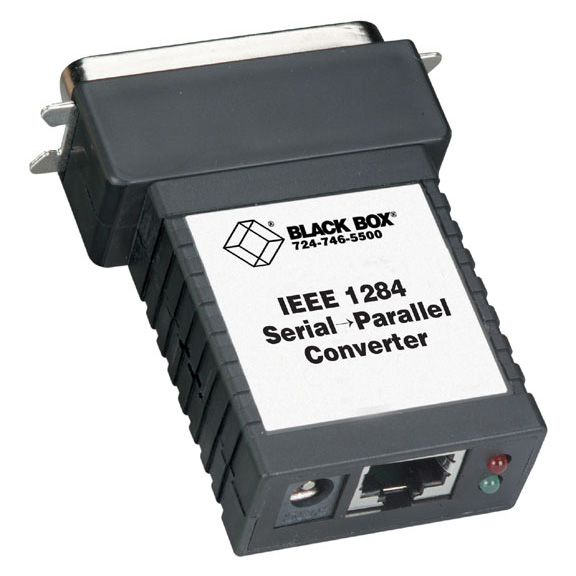

PI049A

Photo may show similar product

Other views

IEEE 1284 Serial to Parallel Converter

Connect async serial hardware to an IEEE 1284 bidirectional interface.

PI049A

Extended Double Diamond™ Warranty Available
(Three years for two)

Product Highlights

  • Runs at speeds up to 115.2 kbps.
  • Supports two IEEE 1284 Bi-Tronics modes: Compatible and Nibble (switchable).
  • Super compact, pocket size.
  • LEDs provide at-a-glance monitoring.
  • Power choices: from both interfaces or from an external power supply.
  • Features 10-kV ESD (electrostatic discharge) protection on the serial interface.

  • Description

    IEEE 1284 Serial to Parallel Converter


    Quick Facts

  • Runs at speeds up to 115.2 kbps.
  • Supports two IEEE 1284 Bi-Tronics modes: Compatible and Nibble (switchable).
  • Super compact, pocket size.
  • LEDs provide at-a-glance monitoring.
  • Power choices: from both interfaces or from an external power supply.
  • Features 10-kV ESD (electrostatic discharge) protection on the serial interface.

  • Further Details

    Get more out of your equipment with the IEEE 1284 Serial to Parallel Converter from Black Box. Use your speedy IEEE 1284 laser printer with your async RS-232/423 hardware. You can use this converter with all your hardware equipped with an IEEE 1284 Bi-Tronics® parallel interface.

    This tiny box gives you lots of operational options because it works in either Level 1 Compatible or Nibble modes (according to the IEEE 1284 standard). So it supports the high speeds—up to 115.2 kbps—necessary for graphics-intensive laser-printer applications. Depending on your equipment, all you have to do is set a switch to change modes.

    Conversion is simple. On the serial side, the converter translates Nibble operations into standard HP® LaserJet® IV serial printer escape sequences. This enables operation with standard printer drivers.

    On the parallel side, the converter translates all commands received from the PC or other serial devices into Bi-Tronics Nibble operations or compatible operations.

    The converter supports all Bi-Tronics Level 1 compatible hardware and is backward-compatible with Level 2 hardware.


    Technical Specifications for IEEE 1284 Serial to Parallel Converter:

    Electrostatic Discharge (ESD) Protection — 10 kV on the serial interface
    Flow Control — Serial: Hardware or software (X-ON/X-OFF), user selectable;
    Parallel: Hardware
    Leads Supported — Serial: 1–8;
    Parallel: Pins 1–13 active; 31, 32, 36 held high; 16–30 ground
    Power Requirements — IEEE 1284 B interface must support optional 5 V on Pin 18, IEEE 1284 C must support interface Pin 36; otherwise, use included external AC power supply
    Speed — 9600 bps; 19.2, 38.4, 115.2 kbps
    Transmission Format — Serial: Async, full-duplex;
    Parallel: IEEE 1284 [supports Nibble and Level 1 compatible modes (switchable)]
    CE Approval — Yes
    Interface — RS-232, RS-423
    Connectors — Serial: (1) RJ-45;
    Parallel: (1) 36-pin Centronics® M
    Indicators — (2) LEDs: Power, Data Mode
    Power — From RS-232/423 and IEEE 1284 interfaces;
    External wallmount transformer: Input: 120 VAC, 60 Hz, 10 watts;
    Output: 9 VDC, 500 mA
    Size — 3"H x 2.4"W x 0.8"D (7.6 x 6.1 x 2 cm)
    Weight — 0.5 lb. (0.2 kg)
    This product works with:
    • RJ-45 (8-Wire) Modular Cable, Straight-Pinned (EL08MS)
    • Modular Adapter Kits (FA065, FA027)
    Questions? Contact our FREE Tech Support.

    NOTE: Technical specification weight is the unit weight. It is not the packaged shipping weight. For shipping weight, please contact Black Box customer service at 877-877-2269.
