Networking > Wireless

click photo to enlarge

CA4N075

Photo may show similar product

Other views

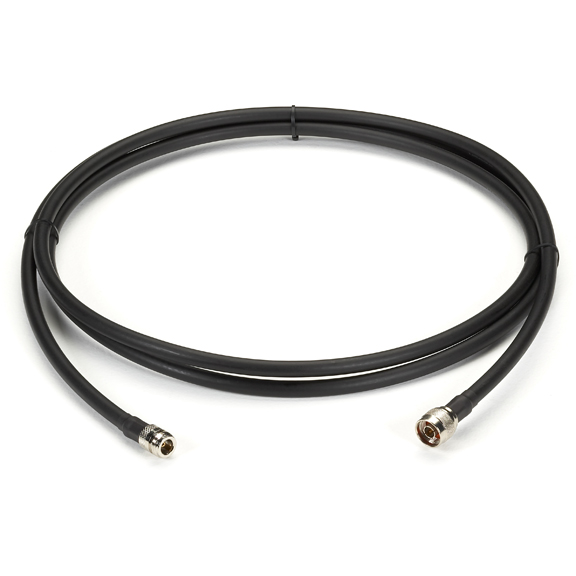

Hyperlink 400-Style, 50-Ohm Coax Cable, N-Type Connectors, Male/Female, 75-ft. (22.8-m)

This high-performance, low-loss 50-ohm coax cable is the right choice for wireless systems.

CA4N075

Extended Double Diamond™ Warranty Available
(Three years for two)

Product Highlights

  • Cables offer performance superior to RG-8/9913 cable and comparable to corrugated copper cable.
  • Highly flexible and nonkinking for easy installation and handling.
  • Use anywhere you would use high-performance coax cables.


    • Description

    Hyperlink 400-Style, 50-Ohm Coax Cable, N-Type Connectors, Male/Female, 75-ft. (22.8-m)


    Quick Facts

  • Cables offer performance superior to RG-8/9913 cable and comparable to corrugated copper cable.
  • Highly flexible and nonkinking for easy installation and handling.
  • Use anywhere you would use high-performance coax cables.

    • Further Details

  • Constructed to withstand the elements.
  • Eliminate jumper cables.

    If you’re setting up a wireless system, this is the cable you need. Use Hyperlink 400-Style Cable anywhere you use high-performance, low-loss coax cable: for cellular, PCS, paging, 2-way radios, and almost any wireless application. It’s perfect for base station and antenna runs, in-building runs, internal wiring, runs on tops of buildings, and for virtually any wireless application.

    This cable is extremely flexible so handling and installation are much easier. Because the cable has such a small minimum bend radius (2-inch), you can easily run it through tight spaces without kinking. And because it’s so flexible, you can save money by eliminating jumper cable in many applications.

    With its high-velocity, gas-injected, closed-cell foam dielectric and aluminum tape outer conductor, it features the lowest loss of any RG-8/9913 type cable. The tinned copper outer braid provides grounding.

    The cable is tough, too. A heavy-duty, UV- and weather-resistant, polyethylene jacket blocks water and moisture, offering robust performance in rugged environments.


    • Technical Specifications for Hyperlink 400-Style, 50-Ohm Coax Cable, N-Type Connectors, Male/Female, 75-ft. (22.8-m):

    Attenuation — 150 MHz: 1.5 dB;
    450 MHz: 2.7 dB;
    900 MHz: 3.9 dB;
    1.8 GHz: 5.7 dB;
    2.5 GHz: 6.8 dB
    Bend Radius (Minimum) — 2“ (5.1 cm)
    Capacitance — 23.9 pF/ft.
    Conductor — Center: Copper/aluminum, 0.108“ nominal diameter
    Dielectric — Foam polyethylene, 0.285“ nominal diameter
    Impedance — 50 ohms
    Jacket — Black polyethylene, 0.405“ diameter
    Shield — Tinned copper braid, 90% coverage over aluminum tape; Diameter: Over tape: 0.291“ nominal; Over braid: 0.320“ nominal
    Shield Effectiveness — >90 dB
    Temperature — Installation and Operating: -40 to +185° F (-40 to +85° C)
    Tensile Strength — 160 lb. (72.6 kg)
    Velocity of Propagation — 85%
    Voltage Withstand — 2500 VDC%
    Weight — 0.068 lb./ft. (0.1kg/m)
    Warranty — 1 Year


    NOTE: Technical specification weight is the unit weight. It is not the packaged shipping weight. For shipping weight, please contact Black Box customer service at 877-877-2269.


    Resources for Hyperlink 400-Style, 50-Ohm Coax Cable, N-Type Connectors, Male/Female, 75-ft. (22.8-m):


    Connect your Hyperlink 400-Style, 50-Ohm Coax Cable, N-Type Connectors, Male/Female, 75-ft. (22.8-m) with:

    Double Diamond Warranty

    Standard Manufacturer's Warranty


    A 90 DAYS warranty is included.

    Extended Two years for one Warranty Available


    Protect your purchase with an additional Two years for oneDouble Diamond™ warranty!
    Cost: $10.00

    Extended Three years for two Warranty Available


    Protect your purchase with an additional Three years for twoDouble Diamond™ warranty!
    Cost: $19.99

    Diamond

    Double Diamond™ Warranty (Standard)

    Coverage:

    The most complete product warranty exclusively from Black Box

    The Double Diamond™ Warranty is our no-questions-asked warranty that protects your Black Box® brand products* from accidental damage, including drops, water, and power surges.

    Most products come with a one- or two-year warranty. Some products, such as copper cables, manual switches, cabinets, and racks, are guaranteed for life! Standard Warranty features are as follows:

    Worry-Free Purchases

    If your new Black Box® brand products are accidentally damaged, you're covered with this no-questions asked warranty. FREE

    Coverage

    Double Diamond™ is the standard warranty that comes with your new Black Box® brand product. Most products come with a one- or two-year warranty.

    Lifetime Guarantees

    Many products, such as copper cables, manual switches, cabinets, and racks, are guaranteed for life.

    Fast Service

    During the warranty period, Black Box® Network Services will repair or replace your damaged equipment within one week of receipt at NO CHARGE!

    Extra Coverage

    Extend your warranty or protect a previously purchased Black Box® brand product* for an additional year for only 10% of the current retail price! And when you do, we give you the second year of extended coverage free! FREE Tech Support Hotline. No cost. No contracts. No kidding!

    No-Risk 45-Day Return Policy

    If it's not right, send it back.
    (Excludes custom built products)

    * Certain products may not be eligible.

    Warranty Compared

    Black Box® Double Diamond™ Warranty The Competition
    Warranty Length One Year to Lifetime, Depending on the Product. Read the fine print.
    Guaranteed for Life! Black Box® Brand Copper Cables, Manual Switches and More! No.
    Accidental Damage 100% Covered! No.
    Water Damage 100% Covered! No.
    Power Surges 100% Covered! No.
    Warranty Replacements No Questions Asked! Forget It.
    Tech Support Hotline 100% FREE! $$$
    You can find this product in the following subcategory(s)


    Add to Cart

    Price: $99.95

    Quantity

    Warranty

    Total

    Shipping Info

    Usually Ships in 3-5 days


    45-day return policy
