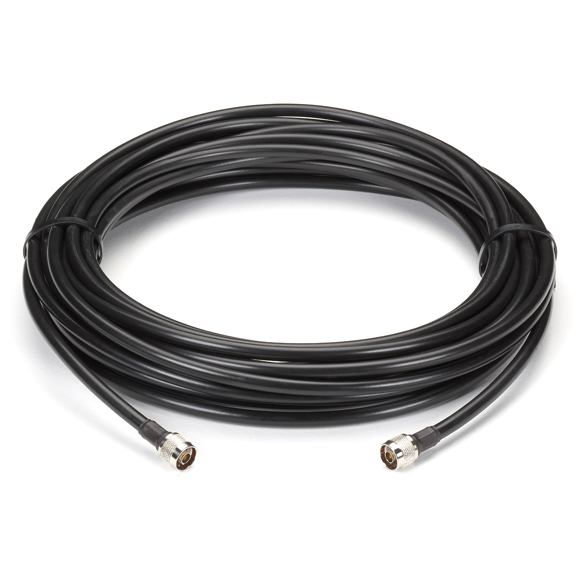

Hyperlink 400-Style, 50-Ohm Coax Cable, N-Type Connectors, Male/Male, 50-ft. (15.2-m)

This high-performance, low-loss 50-ohm coax cable is the right choice for wireless systems.

CA3N050

90 DAY DoubleDiamond™ Warranty (Standard)

Product Highlights

  • Cables offer performance superior to RG-8/9913 cable and comparable to corrugated copper cable.
  • Highly flexible and nonkinking for easy installation and handling.
  • Use anywhere you would use high-performance coax cables.


  • Further Details

  • Constructed to withstand the elements.
  • Eliminate jumper cables.

  • If you’'nk 400-Style Cable anywhere you use high-performance, low-loss coax cable: for cellular, PCS, paging, 2-way radios, and almost any wireless application. It's perfect for base station and antenna runs, in-building runs, internal wiring, runs on tops of buildings, and for virtually any wireless application.

    This cable is extremely flexible so handling and installation are much easier. Because the cable has such a small minimum bend radius (2-inch), you can easily run it through tight spaces without kinking. And because it's so flexible, you can save money by eliminating jumper cable in many applications.

    With its high-velocity, gas-injected, closed-cell foam dielectric and aluminum tape outer conductor, it features the lowest loss of any RG-8/9913 type cable. The tinned copper outer braid provides grounding.

    The cable is tough, too. A heavy-duty, UV- and weather-resistant, polyethylene jacket blocks water and moisture, offering robust performance in rugged environments.

    Attenuation (db/100 ft.) 150 MHz: 1.5 dB;
    450 MHz: 2.7 dB;
    900 MHz: 3.9 dB;
    1.8 GHz: 5.7 dB;
    2.5 GHz: 6.8 dB
    Bend Radius (Minimum) — 2“ (5.1 cm)
    Capacitance — 23.9 pF/ft.
    Conductor — Center: Copper/aluminum, 0.108“ nominal diameter
    Dielectric — Foam polyethylene, 0.285“ nominal diameter
    Impedance — 50 ohms
    Jacket — Black polyethylene, 0.405“ diameter
    Shield — Tinned copper braid, 90% coverage over aluminum tape; Diameter: Over tape: 0.291“ nominal; Over braid: 0.320“ nominal
    Shield Effectiveness — >90 dB
    Temperature — Installation and Operating: -40 to +185° F (-40 to +85° C)
    Tensile Strength — 160 lb. (72.6 kg)
    Velocity of Propagation — 85%
    Voltage Withstand — 2500 VDC%
    Weight — 0.068 lb./ft. (0.1kg/m)
    Warranty — 1 Year


    NOTE: Technical specification weight is the unit weight. It is not the packaged shipping weight. For shipping weight, please contact Black Box customer service at 1-800-316-7107.


    Double Diamond Warranty
    90 DAY DoubleDiamond™ Warranty (Standard)
    Diamond

    Double Diamond™ Warranty (Standard)

    Coverage:

    Take the risk out of equipment purchases with the Double Diamond™ Warranty from Black Box Network Services.


    The Double Diamond Warranty is our warranty that protects your Black Box® brand products* from accidental damage, including drops, water, and power surges.

    The Hyperlink 400-Style, 50-Ohm Coax Cable, N-Type Connectors, Male/Male, 50-ft. (15.2-m) comes with a standard 90 DAY warranty already included.

    During the warranty period, Black Box Network Services will repair or replace your damaged equipment within one week of receipt at NO CHARGE!*

    Plus, get an Extended Double Diamond Warranty.


    You can also extend your warranty or protect a previously purchased Black Box® brand product** for an additional year—for only 10% of the purchase price! Or, extend your coverage for a full three years for only 20% of the purchase price!

    Ordering an extended warranty is easy: When viewing a product in your shopping cart, just select the one or three years of additional coverage in the dropdown menu under “Warranty Options.” For details, contact Customer Service at 724-746-5500.

    * Warranty subject to certain exclusions and limitations
    ** Certain products may not be eligible.

    What’s more, we also have a 45-day return policy. Simply call Customer Service for a Return Authorization (RA) number, return your product in new condition and in the original package, and receive a full refund.

    Product SKU Price Quantity
    Hyperlink 400-Style, 50-Ohm Coax Cable, N-Type Connectors, Male/Male, 10-ft. (3.0-m) CA3N010 $53.95

    Hyperlink 400-Style, 50-Ohm Coax Cable, N-Type Connectors, Male/Male, 25-ft. (7.6-m) CA3N025 $75.95

    Hyperlink 400-Style, 50-Ohm Coax Cables, N-Type Connectors, Male/Male, 75-ft. (22.8-m) CA3N075 $189.95

    Hyperlink 400-Style, 50-Ohm Coax Cable, N-Type Connectors, Male/Male, 100-ft. (30.4-m) CA3N100 $259.95

    Hyperlink 400-Style, 50-Ohm Coax Cables, N-Type Connector, Male/Female, 10-ft. (3.0-m) CA4N010 $53.95

    Hyperlink 400-Style, 50-Ohm Coax Cable, N-Type Connectors, Male/Female, 25-ft. (7.6-m) CA4N025 $77.95

    Hyperlink 400-Style, 50-Ohm Coax Cable, N-Type Connectors, Male/Female, 50-ft. (15.2-m) CA4N050 $133.95

    Hyperlink 400-Style, 50-Ohm Coax Cable, N-Type Connectors, Male/Female, 75-ft. (22.8-m) CA4N075 $191.95

    Hyperlink 400-Style, 50-Ohm Coax Cable, N-Type Connectors, Male/Female, 100-ft. (30.4-m) CA4N100 $259.95
