Voice Communications > IP PBX

click photo to enlarge

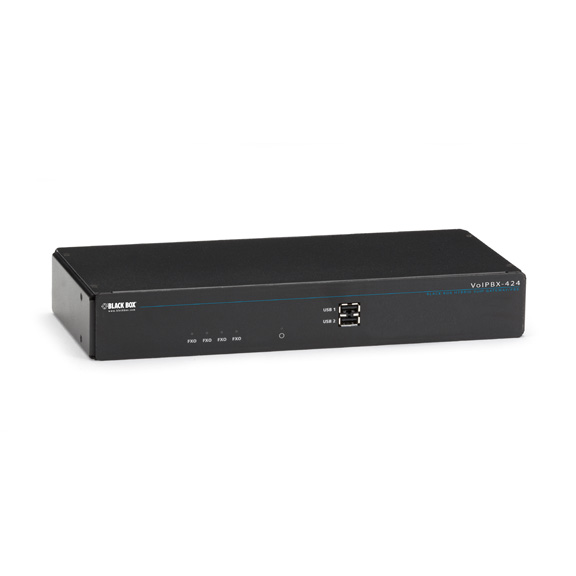

IPBX424

Photo may show similar product

Other views

Hybrid PBX & VoIP Gateway with (4) FXO, (2) FXS, and 4-Port Ethernet Switch with (4) 10/100 Ports

Enables your office to communicate through both telephone and VoIP lines.

IPBX424

Extended Double Diamond™ Warranty Available
(Three years for two)

Product Highlights

  • Combines traditional telephony and VoIP into a single device.
  • Enables you to communicate through VoIP or SIP lines for lower-cost long-distance calling and unified communications.
  • Supports customized greetings per user and includes e-mail, fax, and voice mail notifications.
  • Includes voicemail system that accepts, stores, and converts all voicemails and sends them to e-mail.

  • Description

    Hybrid PBX & VoIP Gateway with (4) FXO, (2) FXS, and 4-Port Ethernet Switch with (4) 10/100 Ports


    Quick Facts

  • Combines traditional telephony and VoIP into a single device.
  • Enables you to communicate through VoIP or SIP lines for lower-cost long-distance calling and unified communications.
  • Supports customized greetings per user and includes e-mail, fax, and voice mail notifications.
  • Includes voicemail system that accepts, stores, and converts all voicemails and sends them to e-mail.

  • Further Details

    This powerful gateway integrates traditional telephone and VoIP for more cost-effective voice communications, routing calls accordingly to desk, home, or cellular phones. It enables you to save on charges for long-distance calling, voice mail, and other services right out of the box.

    As a fully functional PBX appliance, it features dual FXS connections for phones or fax machines, 4 FXO connections for analog phone lines, and an integrated four-port 10-/100-Mbps Ethernet switch. What’s more, the gateway features a high-performance CPU, hardware-based echo cancellation, and QoS.

    Plus, the gateway offers easy setup through a Web-based configuration interface. It also seamlessly detects and installs SIP phones so every user in your office can be making and receiving calls in no time at all.

    Even better, users can connect through PBX with SIP phones even when working remotely.
    This gateway works with Black Box® brand SIP Phones.


    Numerous cost-saving and call-enhancing features:
  • Unlimited VoIP phone numbers.
  • Voice mail—the gateway stores and converts voice mail messages and sends them to e-mail as a WAV or MP3 file attachment.
  • Full PBX feature set, including call hold, call transfer, call forward, caller ID, and call waiting, plus conferencing.
  • Long-distance calling from mobile phones.
  • Call pickup—answer any call, whether on hold or ringing, even if it’s coming from another line.
  • Customizable settings per user.
  • VoIP failover—if your Internet connection is lost, calls can be made through the POTS line.
  • Digital receptionist—dial-by-name directory and the ability to create personalized greetings for every VoIP number.

  • Technical Specifications for Hybrid PBX & VoIP Gateway with (4) FXO, (2) FXS, and 4-Port Ethernet Switch with (4) 10/100 Ports:



    NOTE: Technical specification weight is the unit weight. It is not the packaged shipping weight. For shipping weight, please contact Black Box customer service at 877-877-2269.


    Resources for Hybrid PBX & VoIP Gateway with (4) FXO, (2) FXS, and 4-Port Ethernet Switch with (4) 10/100 Ports:

    Manuals

    • Hybrid PBX & VoIP Gateway Administrator's Guide
      Administrator's Guide for the IPBX424 and IPBX1224 (Version 1)
    • Hybrid PBX & VoIP Gateway Installation Guide
      Installation Guide for the IPBX424 and IPBX1224 (Version 1)

    Product Data Sheets
