Power > Power Distribution

click photo to enlarge

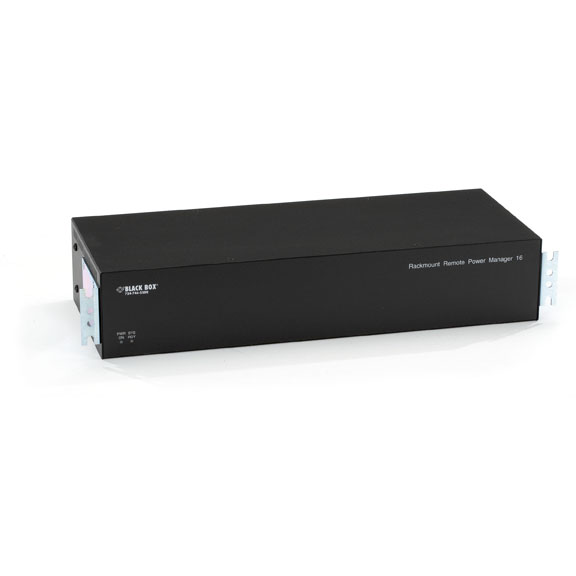

PS569A

Photo may show similar product

Other views

  • PS569A
  • PS569A

Horizontal Rackmount Remote Power Manager, 100–120 VAC, Dual Circuit, 15-Amp, (16) NEMA 5-15 Outlets

Convenient rackmount power control for up to 16 remote network devices.

PS569A

Extended Double Diamond™ Warranty Available
(Three years for two)

Product Highlights

  • Reboot remote servers, routers, Web cams, firewalls, and other devices from your home or office.


    • Description

    Horizontal Rackmount Remote Power Manager, 100–120 VAC, Dual Circuit, 15-Amp, (16) NEMA 5-15 Outlets


    Quick Facts

  • Reboot remote servers, routers, Web cams, firewalls, and other devices from your home or office.

    • Further Details

  • Horizontal configuration.
  • Control devices via Telnet™ over a TCP/IP network, a Web browser and a modem, or serial commands.
  • Feature individually controllable outlet plugs.
  • Versions available for 105–120-VAC, 100–120-VAC, 100–125-VAC, and 208–240-VAC equipment.
  • Two levels of password protection and encrypted 64-bit password security.
  • Only authorized users can make configuration changes.
  • An RS-232 port is for modem or console connections. A 10BASE-T interface provides network connections.
  • Takes up only 1U or 2U of space.
  • Models with dual power circuits available.


    • No more traveling to reboot your equipment in the middle of the night! No more service calls just to flip a switch! BLACK BOX® Rackmount Remote Power Managers enable you to reboot up to 16 network devices from across your network, by modem, with Telnet, or even from the Internet.

    Just type the power manager’s IP address into your Web browser, enter your name and password, and you can access your network devices to switch them on, switch them off, or reboot. The power managers are perfect for remotely rebooting servers, routers, network switches, Web cams, firewalls, and many other network devices.

    The Web browser interface works across any TCP/IP network—even the Internet—with any JavaScript enabled Web browser. Its intuitive interface features easy-to-use menus. Control power by plug number or by name (such as ATM Switch 1, Gateway, Router 1, etc.) that you assign to each outlet.

    You can also operate the Horizontal Rackmount Remote Power Manager through an ASCII command line interface via Telnet™ over a TCP/IP network, through a modem connection, or from a local PC using a terminal emulator.

    Horizontal Rackmount Remote Power Managers have built-in password security to prevent unauthorized users from switching your devices or changing your configuration. Both the Web browser and the command-line interface use 64-bit encryption.

    Two levels of operational passwords provide an additional layer of security: System-level passwords provide access to all configuration and switching functions. The user level limits switching to assigned plugs and cannot be used to change the power manager configuration.

    Horizontal Rackmount Remote Power Managers feature an IP-addressed 10BASE-T interface for network connections and an RS-232 port for modem or console connections.


    Technical Specifications for Horizontal Rackmount Remote Power Manager, 100–120 VAC, Dual Circuit, 15-Amp, (16) NEMA 5-15 Outlets:

    Data Format — PS580A–PS581A: Serial ASCII, 8 bits, no parity;
    PS568A–PS569A, PS582A–PS583A, PS590A-520P, PS590A-L520P, PS591A-520P, PS591A-L520P: Serial ASCII, 7/8 bits, no parity, 300 bps–38.4 kbps
    Operating Environment — Temperature: 32 to 122° F (0 to 50° C);
    Humidity: 10 to 90% noncondensing
    Protocols — HTTP, Telnet, RS-232
    User Controls — PS580A–PS581A: (1) manual control button, (1) circuit breaker;
    PS590A-520P, PS590A-L520P, PS569A, PS591A-520P, PS591A-L520P, PS582A–PS583A: (1) manual control button, (2) circuit breakers
    Connectors — All: RS-232C: (1) DB9 M (DTE); Network: (1) RJ-45 (10BASE-T Ethernet);
    PS580A: AC input: (1) IEC 320 inlet; AC output: (4) NEMA 5-15 outlets;
    PS590A-520P, PS590A-L520P: AC input: (2) IEC 320-C14 inlets; AC output: (8) NEMA 5-15 outlets;
    PS569A, PS591A-520P, PS591A-L520P: AC input: (2) IEC 320-C14 inlets; AC output: (16) NEMA 5-15 outlets;
    PS581A: AC input: (1) IEC 320-C14 inlet; AC output: (4) IEC 320-C13 outlets;
    PS582A: AC input: (2) IEC 320-C14 inlets; AC output: (8) IEC 320-C13 outlets;
    PS583A: AC input: (2) IEC 320-C14 inlets; AC output: (16) IEC 320-C13 outlets;
    Power — PS580A: AC input: 105–120 VAC, 60 Hz, 15 amps maximum; AC output: (4) plugs, supporting a load of 15 amps total;
    PS568A: AC input: 100–120 VAC, 50/60 Hz, 15 amps maximum per circuit; AC output: (8) plugs split into (2) 15-amp circuits with Power Circuit A (Plugs 1–4) and Power Circuit B (Plugs 5–8) supporting a load of 30 amps total;
    PS590A-520P, PS590A-L520P: AC input: 100–120 VAC, 50/60 Hz, 20 amps maximum per circuit; AC output: (8) plugs split into (2) 20-amp circuits with Power Circuit A (Plugs 1–4) and Power Circuit B (Plugs 5–8) supporting a load of 40 amps total;
    PS569A: AC input: 100–120 VAC, 50/60 Hz, 15 amps maximum per circuit; AC output: (16) plugs split into (2) 15-amp circuits with Power Circuit A (Plugs 1–8) and Power Circuit B (Plugs 9–16) supporting a load of 30 amps total;
    PS591A-520P, PS591A-L520P: AC input: 100–120 VAC, 50/60 Hz, 20 amps maximum per circuit; AC output: (16) plugs split into (2) 20-amp circuits with Power Circuit A (Plugs 1–8) and Power Circuit B (Plugs 9–16) supporting a load of 40 amps total;
    PS581A: AC input: 208–240 VAC, 50/60 Hz, 10 amps maximum; AC output: (4) plugs, supporting a load of 10 amps total;
    PS582A: AC input: 208–240 VAC, 50/60 Hz, 10 amps maximum per circuit; AC output: (8) plugs split into (2) 10-amp circuits with Power Circuit A (Plugs 1–4) and Power Circuit B (Plugs 5–8) supporting a load of 20 amps total;
    PS583A: AC input: 208–240 VAC, 50/60 Hz, 10 amps maximum per circuit; AC output: (16) plugs split into (2) 10-amp circuits with Power Circuit A (Plugs 1–8) and Power Circuit B (Plugs 9–16) supporting a load of 20 amps total
    Size — PS580A–PS581A: 1.75"H x 19"W x 4.5"D (4.4 x 48.3 x 11.4 cm);
    PS568A, PS590A-520P, PS590A-L520P, PS582A: 1.75"H x 19"W x 7"D (4.4 x 48.3 x 17.8 cm);
    PS569A, PS591A-520P, PS591A-L520P, PS583A: 3.5"H x 19"W x 7"D (8.9 x 48.3 x 17.8 cm)
    Weight — PS580A–PS581A: 6 lb. (2.7 kg);
    PS568A, PS590A-520P, PS590A-L520P, PS582A: 10 lb. (4.5 kg);
    PS569A, PS591A-520P, PS591A-L520P, PS583A: 12 lb. (5.4 kg)


    NOTE: Technical specification weight is the unit weight. It is not the packaged shipping weight. For shipping weight, please contact Black Box customer service at 877-877-2269.
