ME242A-M

Photo may show similar product

Other views

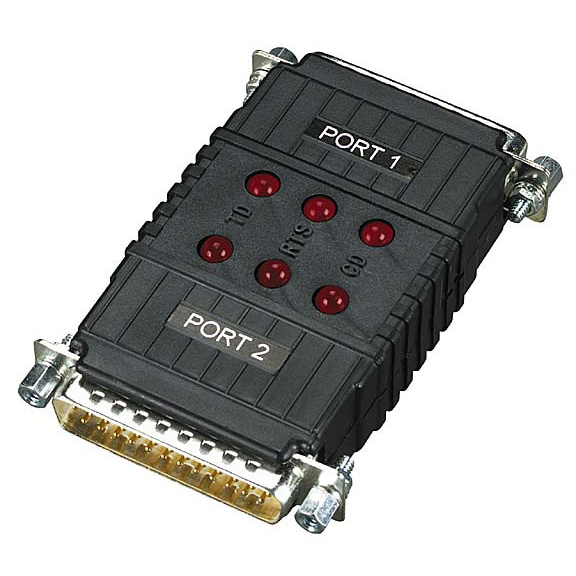

High-Speed Synchronous Modem Eliminator–Nonpowered, DB25 Male

A higher speed with convenient DB25 connectors.

ME242A-M

Extended Double Diamond™ Warranty Available (3 Additional Year)

Product Highlights

  • Interface powered.
  • Installs inline with RS-232 cable.
  • Emulates dialup or leased-line modem service.


  • Further Details

  • Distances supported up to 75 feet (22.8 m) on either side of the connector.
  • Supports data rates from 7 to 224 kbps, including 56 kbps.
  • Indicator LEDs display TX, RX, and CD.
  • Internal or external clocking.

    Why use an expensive sync modem to connect two sync DTEs that are close to each other? Instead, save a bundle with a High-Speed Sync Modem Eliminator–Nonpowered. (SME–NPRs).

    Just install one between your two devices with straight-through RS-232 cable.

    The High-Speed Sync Modem Eliniator—Nonpowered synchronizes the clocking and matches the wiring. You can set handshaking to emulate a dialup or leased line. To check activity status, just glance at the TX, RX, and CD LEDs.

    Because this super-small SME doesn';t require power, you can plug it in anywhere.

    Sync data rates for the ME242A-M zip along at speeds from 7 to 224 kbps, including 56 kbps.

  • Distance (Maximum) 75 ft. (22.8 m) on either side
    Operation Point-to-point, full- or half-duplex
    Protocol Synchronous
    Speed (Maximum) 224 kbps
    CE Approval Yes
    Interface RS-232
    Connectors (2) DB25 M
    Power Pins 4 or 20 on Port 1
    Size 1.2"H x 2"W x 5.3"D (3 x 5.1 x 13.5 cm)
    Weight 0.2 lb. (<0.1 kg)
    This product works with:
    • RS-232 Cable, 25-Conductor, Male/Male (ECM25C)
    Questions? Contact our FREE Tech Support.

    NOTE: Technical specification weight is the unit weight. It is not the packaged shipping weight. For shipping weight, please contact Black Box customer service at 1-800-316-7107.

    Accessory: ECM25T-0010-MM

    Standard RS-232 Low-Noise Cable, 25 Conductors—Pins 1–25, Male/Male, 10-ft. (3.0-m)

    Standard RS-232 Low-Noise Cable, 25 Conductors—Pins 1–25, M/M, 10-ft. (3.0-m)
