Datacom > Converters

click photo to enlarge

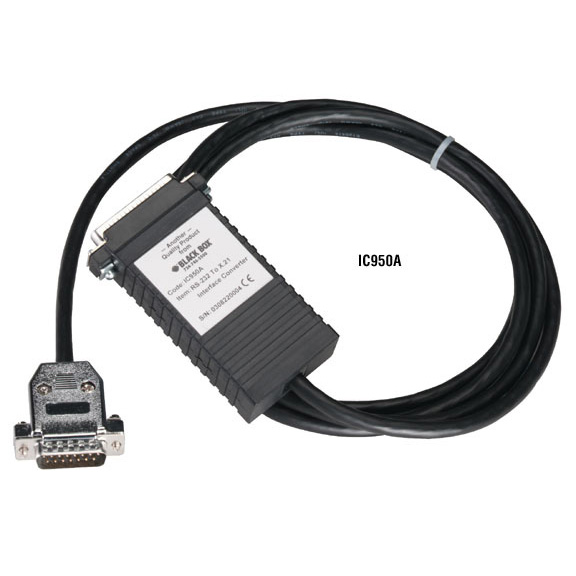

IC950A

Photo may show similar product

Other views

High-Speed RS-232 to X.21 Interface Converter, RS-232 DTE to X.21 DCE

Connect a sync RS-232 host to a sync X.21 modem for bidirectional communication.

IC950A

Extended Double Diamond™ Warranty Available
(Three years for two)

Product Highlights

  • Enable bisynchronous communication between a sync RS-232 host and a sync X.21 modem.
  • Support data rates up to 384 kbps.
  • No configuration and no power supply necessary.
  • Protocol independent.

  • Description

    High-Speed RS-232 to X.21 Interface Converter, RS-232 DTE to X.21 DCE


    Quick Facts

  • Enable bisynchronous communication between a sync RS-232 host and a sync X.21 modem.
  • Support data rates up to 384 kbps.
  • No configuration and no power supply necessary.
  • Protocol independent.

  • Further Details



    Get your RS-232 and X.21 devices in sync! The BLACK BOX® High-Speed RS-232<–>X.21 Interface Converter enables a synchronous RS-232 host to communicate bidirectionally with a synchronous X.21 modem.

    This interface converter supports sync data rates up to an incredible 384 kbps. With its scorching data rates, you can use it for WAN connectivity, videoconferencing, and any other application that requires high speed.

    Link the converter to the RS-232 and X.21 interfaces with the included 6-foot (1.8-m) adapter cable. Even with the cable, the High-Speed RS-232<–>X.21 Interface Converter is the smallest of its kind. You get so much packed into such a small converter!

    Use this interface converter for RS-232 DTE<–>X.21 DCE communications. It's protocol independent and passes all appropriate data, clocking, and control signals—it's as easy to use as patch cable. And you don’t have to worry about configuration either. This interface converter is ready to go right out of the box.


    Technical Specifications for High-Speed RS-232 to X.21 Interface Converter, RS-232 DTE to X.21 DCE:

    Clocking — From the DCE devices
    Operation — Synchronous, transparent to protocol
    Speed (Maximum) — 384 kbps
    Transmission Mode — Full- or half-duplex
    CE Approval — Yes
    Interface — RS-232, X.21
    Connectors — RS-232: (1) DB25 F;
    X.21: DB15 F
    Power — From RS-232 data and control signals
    Size — 0.8"H x 2.1"W x 3.6"D (2 x 5.3 x 9.1 cm)
    Weight — 0.9 lb. (0.4 kg)
    This product works with:
    • Gender Changer (FA402-R2)
    • DB15 Thumbscrew Cable (EGM16E)
    Questions? Contact our FREE Tech Support.


    NOTE: Technical specification weight is the unit weight. It is not the packaged shipping weight. For shipping weight, please contact Black Box customer service at 877-877-2269.


    Resources for High-Speed RS-232 to X.21 Interface Converter, RS-232 DTE to X.21 DCE:


    Connect your High-Speed RS-232 to X.21 Interface Converter, RS-232 DTE to X.21 DCE with:

    Accessory: EGM16T-0002-FF

    DB15 Thumbscrew Cable, Female/Female, 2-ft. (0.6-m)

    DB15 Thumbscrew Cable, Female/Female, 2-ft. (0.6-m)

    Accessory: TS400

    DB25 Gender Changer, Unshielded, Male/Male

    DB25 Gender Changer, Unshielded, Male/Male
