Datacom > Converters

click photo to enlarge

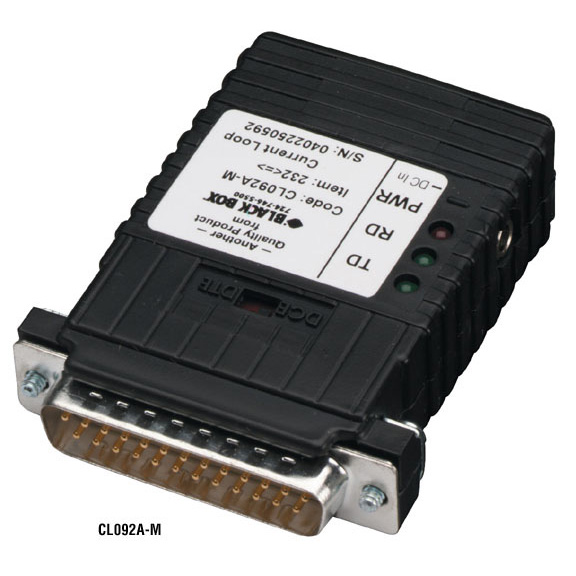

CL092A-M

Photo may show similar product

Other views

High Speed RS-232 to Current Loop Interface Converters

Integrate Current Loop equipment into your system.

CL092A-M

Extended Double Diamond™ Warranty Available
(Three years for two)

Product Highlights

  • Enable an asynchronous RS-232 device with a DB25 male interface to communicate with a Current Loop device.
  • 20-mA models support 115-kbps speeds; 60-mA converter supports 19.2-kbps speeds.
  • Send data up to 4 miles (6.4 km) and operate full-duplex over 4 wires.

  • Description

    High-Speed RS-232 to Current Loop Converter, Active/Passive, DB25 Male/20-mA RJ-45


    Quick Facts

  • Enable an asynchronous RS-232 device with a DB25 male interface to communicate with a Current Loop device.
  • 20-mA models support 115-kbps speeds; 60-mA converter supports 19.2-kbps speeds.
  • Send data up to 4 miles (6.4 km) and operate full-duplex over 4 wires.

  • Further Details

  • Easy to configure. Connect directly to the RS-232 interface using a DB25 male connector.
  • External DCE/DTE switch eliminates the need for crossover cables.
  • Optical isolation prevents ground loops on the line side.
  • Active/passive model includes an external wallmount power supply. Passive-only models draw power from the RS-232 interface.

    These compact High-Speed RS-232↔Current Loop Interface Converters enable async RS-232 devices to communicate with Current Loop devices at higher data rates over 24 AWG twisted-pair cabling.

    All models feature an external DCE/DTE switch for easy configuration. Optical isolation on the line side protects against data loss caused by ground loops.

    The CL092A-M model enables connections to active or passive 20-mA Current Loop hosts or devices with an RJ-45 interface and communicates at speeds up to 115.2 kbps. An external 115-VAC power supply is included for use in active applications.

    For linking to a passive 20-mA Current Loop device with an RJ-11 connector, order the CL096A-M. It also supports 115.2-kbps data rates.

    The CL080A-M enables you to connect an async RS-232 device to a passive 60-mA Current Loop device via a terminal block connection. It offers speeds up to 19.2 kbps and features 2500V RMS optical isolation and Silicon Avalanche Diode protection.

  • Technical Specifications for High Speed RS-232 to Current Loop Interface Converters:

    Operation — Asynchronous, full-duplex
    Speed (Maximum) — CL092A-M, CL096A-M: 115.2 kbps;
    CL080A-M: 19.2 kbps
    CE Approval — Yes
    Connectors — RS-232: All: (1) DB25 M;
    Current Loop: CL092A-M: (1) RJ-45;
    CL096A-M: (1) RJ-11;
    CL080A-M: (1) terminal block
    Distance (Maximum) — 4 mi. (6.4 km) on 24 AWG twisted pair
    Power — CL092A-M: Active: 115-VAC, 60-Hz external wallmount transformer (230-VAC version on request);
    Passive: From the RS-232 interface;
    CL096A-M, CL080A-M: Passive only: From the RS-232 interface
    Size — 1.2"H x 0.8"W x 2.5"D (3 x 2 x 6.4 cm)
    Weight — 0.2 lb. (0.1 kg)
    These products work with:
  • Standard RS-232 Low-Noise Cable, 12-Conductor (ECM12C)
  • Questions? Contact our FREE Tech Support.

    NOTE: Technical specification weight is the unit weight. It is not the packaged shipping weight. For shipping weight, please contact Black Box customer service at 877-877-2269.
