Power > Opto-Isolators

click photo to enlarge

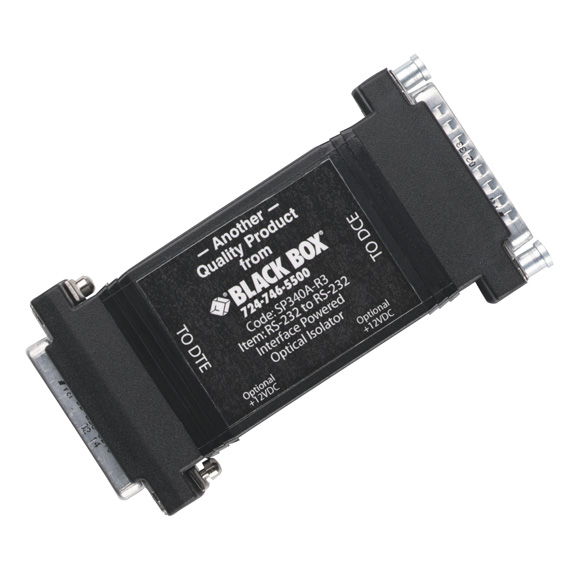

SP340A-R3

Photo may show similar product

Other views

High-Speed Opto-Isolator

Stop ground loops of up to 2500 volts from wreaking havoc on your system.

SP340A-R3

Extended Double Diamond™ Warranty Available
(Three years for two)

Product Highlights

  • Protect your computer and your data from ground loops.
  • Internal fiber optic air gap prevents ground loops.
  • Data signals are converted to line pulses inside the Opto-Isolator and continue along the circuit.

  • Description

    High-Speed Opto-Isolator


    Quick Facts

  • Protect your computer and your data from ground loops.
  • Internal fiber optic air gap prevents ground loops.
  • Data signals are converted to line pulses inside the Opto-Isolator and continue along the circuit.

  • Further Details

    Linking two devices powered by separate AC sources can create the potential for a ground-loop surge—a damaging electrical condition that can destroy your computer and wipe out data. But a Black Box ® Opto-Isolator interrupts that lethal pathway by completing the connection between the two devices with an internal fiber optic link.

    Data signals, converted to light pulses inside the Isolator, continue along on the circuit. But the fiber optic air gap stops ground loops from wreaking havoc with your hardware.

    Our High-Speed Opto-Isolator protects devices with 115.2-kbps serial ports up to 1000 feet (304.8 m) on either side of the interface. If the interface doesn’t provide enough power, order the optional 120-VAC Wallmount Power Supply (PS1002).

    NOTE: To protect RS-232 to RS-422/485 lines, see our RS-232↔RS-485/422 Converter Plus with Opto-Isolation (IC108A).


    NOTE: To protect RS-232 to RS-422/485 lines, see our RS-232↔ RS-485/422 Converter Plus with Opto-Isolation (IC109A-R3).

    This product works with:
    • Standard RS-232 Low-Noise Cable, 25-Conductor (ECM25C)
    Questions? Contact our FREE Tech Support.


    Technical Specifications for High-Speed Opto-Isolator:

    Protocol — Asynchronous
    Speed — Serial data rates up to 115.2 kbps
    Interface — RS-232
    Connectors — (1) DB25 F, (1) DB25 M
    Power — From the interface or optional 120-VAC Wallmount Power Supply (PS1002)
    Size — 0.8"H x 2.1"W x 3.8"D (2 x 5.3 x 9.7 cm)
    Weight — 0.8 lb. (0.4 kg)
    NOTE: To protect RS-232 to RS-422/485 lines, see our RS-232↔ RS-485/422 Converter Plus with Opto-Isolation (IC109A-R3).

    This product works with:
    • Standard RS-232 Low-Noise Cable, 25-Conductor (ECM25C)
    Questions? Contact our FREE Tech Support.

    NOTE: Technical specification weight is the unit weight. It is not the packaged shipping weight. For shipping weight, please contact Black Box customer service at 877-877-2269.


    Resources for High-Speed Opto-Isolator:


    Connect your High-Speed Opto-Isolator with:

    Accessory: IC108A

    RS-232 to RS-485/422 Bidirectional Converter Plus, Standalone

    RS-232 to RS-485/422 Bidirectional Converter Plus, Standalone

    Accessory: PS1002

    120-VAC Wallmount Power Supply

    120-VAC Wallmount Power Supply

    Accessory: ECM25T-0010-MM

    Standard RS-232 Low-Noise Cable, 25 Conductors—Pins 1–25, Male/Male, 10-ft. (3.0-m)

    Standard RS-232 Low-Noise Cable, 25 Conductors—Pins 1–25, M/M, 10-ft. (3.0-m)
