Networking > Extenders

click photo to enlarge

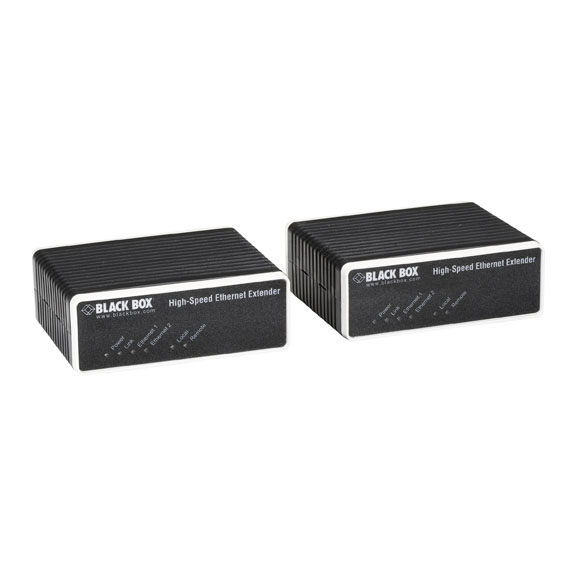

LB401A-R2

Photo may show similar product

Other views

  • LB401A-R2
  • LB401A-R2

High-Speed Ethernet Extender Kit

Offers data throughput of 50 Mbps at 800 feet.

LB401A-R2

Extended Double Diamond™ Warranty Available
(Three years for two)

Product Highlights

  • Use a single voice-grade twisted-pair cable to extend your network at greater distances without forgoing speed or having to use CAT5e or fiber cabling.
  • Distances up to 6000 feet (1828.8 m).
  • Ideal for extending 10-/100-Mbps links to remote buildings, those beyond the 328-foot (100-m) limit of Ethernet.


    • Description

    High-Speed Ethernet Extender Kit


    Quick Facts

  • Use a single voice-grade twisted-pair cable to extend your network at greater distances without forgoing speed or having to use CAT5e or fiber cabling.
  • Distances up to 6000 feet (1828.8 m).
  • Ideal for extending 10-/100-Mbps links to remote buildings, those beyond the 328-foot (100-m) limit of Ethernet.

    • Further Details

  • Offers data rates up to 50 Mbps in each direction for an aggregated full-duplex speed of 100 Mbps.
  • Switch-selectable line rates—choose the optimal speed for a particular application.
  • Asymmetric or symmetric operation.
  • Great for bandwidth-intensive applications, with performance approximating that of fiber.
  • Interconnect remote devices or networks to a central LAN for videoconferencing, VoIP calling, Ethernet bridging, or provisioning broadband triple-play (Internet, TV, and telephone) services.
  • Simple to install, and there’s no configuration or complex cabling to deal with.
  • Autodetects 10-/100-Mbps connections, autonegotiating full- or half-duplex.
  • Auto MDI-X detects the link’s pinning, so you can use straight or cross-pinned cables.
  • Bridges LANs transparently, passing higher layer protocols. Also supports 802.1Q VLAN tagged and untagged traffic.
  • Configure each extender in the kit as a local or remote unit with a slide of a switch.
  • Not backwards compatible with the earlier version of this product (LB401A).

    • The High-Speed Ethernet Extender Kit is ideal for service providers who want to differentiate their services and provide various speeds to customers.

    The High-Speed Ethernet Extender Kit includes (2) extender units, switch-selectable for use as either a remote or local unit.

    NOTE: Line rates are for 24 AWG, 0.5-mm cable.


    Technical Specifications for High-Speed Ethernet Extender Kit:

    Duplexing Method — Frequency Division (FDD)
    Line Rates, Asymmetrical — 6000 ft. (1828.8 m): 1 Mbps upstream, 4 Mbps downstream;
    4000 ft. (1219.2 m): 1 Mbps upstream, 16 Mbps downstream;
    2000 ft. (609.6 m): 2 Mbps upstream, 50 Mbps downstream
    Line Rates, Symmetrical — 4000 ft. (1219.2 m): 10 Mbps upstream and downstream;
    2000 ft. (609.6 m): 25 Mbps upstream and downstream;
    800 ft. (243.8 m): 50 Mbps upstream and downstream
    Modulation — Quadrature Amplitude (QAM) 4-band
    Operation — Half- or full-duplex
    CE Approval — Yes
    RoHS — Yes
    Connectors — (2) 10/100BASE-TX RJ-45; (1) copper link RJ-45
    Indicators — (3) front-panel LEDs: Power, Link, Ethernet
    Power — 100–240 VAC, 50–60 Hz, autosensing, external
    Size — Each extender unit: 1.5"H x 4.1"W x 3.75"D (3.8 x 10.4 x 9.5 cm)
    Weight — Each extender unit: 1.4 lb. (0.2 kg)
    NOTE: Line rates are for 24 AWG, 0.5-mm cable.

    NOTE: Technical specification weight is the unit weight. It is not the packaged shipping weight. For shipping weight, please contact Black Box customer service at 877-877-2269.
