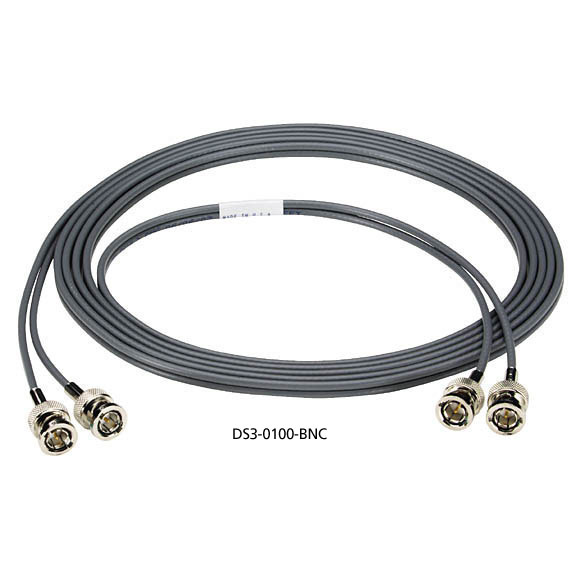

DS3-0100-BNC

Photo may show similar product

Other views

High-Speed DS-3 Coax Cable, BNC-BNC, 100-ft. (30.4-m)

The right connection for your high-speed DS-3 equipment.

DS3-0100-BNC

Extended Double Diamond™ Warranty Available
(Lifetime)

Product Highlights

  • Use to interconnect or cross-connect DS-3 transmission equipment and Digital System Cross-connect (DSX) systems.
  • Guaranteed for life!


  • Description

    High-Speed DS-3 Coax Cable, BNC-BNC, 100-ft. (30.4-m)


    Quick Facts

  • Use to interconnect or cross-connect DS-3 transmission equipment and Digital System Cross-connect (DSX) systems.
  • Guaranteed for life!

  • Further Details

  • Cable is Siamese-style with two conductors.
  • For superior performance, conductors are solid, silver-plated, 26 AWG copper.
  • Low attenuation at standard frequencies.
  • For indoor environments.
  • UL® listed to NEC® and CEC Type CMR.
  • Compliant with Bellcore GR-139-CORE specifications and flame resistant to UL® 1666.
  • Available with TNC connectors also.
  • Other lengths are available.


  • Technical Specifications for High-Speed DS-3 Coax Cable, BNC-BNC, 100-ft. (30.4-m):

    Impedance (Nominal) 75 ohms
    Conductors 26 AWG silver-plated, solid copper
    Construction 95% coverage braid
    CSA CXC FT-4
    Dielectric Cellular polyethylene
    Jacket Gray PVC
    Rating UL® Listed, NEC® Type CMR
    Return Loss (Minimum) 30 dB at 100 MHz
    Shield Foil with tinned copper
    Structural Loss 30 dB at 15-90 MHz
    Velocity of Propagation (Nominal) 78%


    NOTE: Technical specification weight is the unit weight. It is not the packaged shipping weight. For shipping weight, please contact Black Box customer service at 877-877-2269.


    Resources for High-Speed DS-3 Coax Cable, BNC-BNC, 100-ft. (30.4-m):


    Connect your High-Speed DS-3 Coax Cable, BNC-BNC, 100-ft. (30.4-m) with:

    Double Diamond Warranty

    Standard Manufacturer's Warranty


    A warranty is included.

    Diamond

    Double Diamond™ Warranty (Standard)

    Coverage:

    Take the risk out of equipment purchases with the Double Diamond™ Warranty from Black Box Network Services.


    The Double Diamond Warranty is our no-questions-asked warranty that protects your Black Box® brand products* from accidental damage, including drops, water, and power surges.

    Most of our products come with a one- or two-year warranty. Some products—such as copper cables, manual switches, cabinets, and racks—are even guaranteed for life!

    During the warranty period, Black Box Network Services will repair or replace your damaged equipment within one week of receipt at NO CHARGE!

    Plus, get an Extended Double Diamond Warranty.


    You can also extend your warranty or protect a previously purchased Black Box® brand product* for an additional year—for only 10% of the purchase price! Or, extend your coverage for a full three years for only 20% of the purchase price!

    Ordering an extended warranty is easy: When viewing a product in your shopping cart, just select the one or three years of additional coverage in the dropdown menu under “Warranty Options.” For details, contact Customer Service at 724-746-5500.

    * Certain products may not be eligible.

    Warranty Compared

    Black Box® Double Diamond™ Warranty The Competition
    Warranty Length One Year to Lifetime, Depending on the Product. Read the fine print.
    Guaranteed for Life! Black Box® Brand Copper Cables, Manual Switches and More! No.
    Accidental Damage 100% Covered! No.
    Water Damage 100% Covered! No.
    Power Surges 100% Covered! No.
    Warranty Replacements No Questions Asked! ?
    Tech Support Hotline 100% FREE! $$$

    What’s more, we also have a 45-day, no-questions-asked return policy. Simply call Customer Service for a Return Authorization (RA) number, return your product in new condition and in the original package, and receive a full refund.

    You can find this product in the following subcategory(s)


    Add to Cart

    Price: $80.95

    Quantity Available: 40

    Quantity

    Warranty

    Total

    Shipping Info

    In Stock - orders received before 5PM ET ship same day

    Weight: 2.718 lbs.
    HxWxD: 3.75 x 8.75 x 8.75 in.

    What’s more, we also have a 45-day, no-questions-asked return policy. Simply call Customer Service for a Return Authorization (RA) number, return your product in new condition and in the original package, and receive a full refund.
