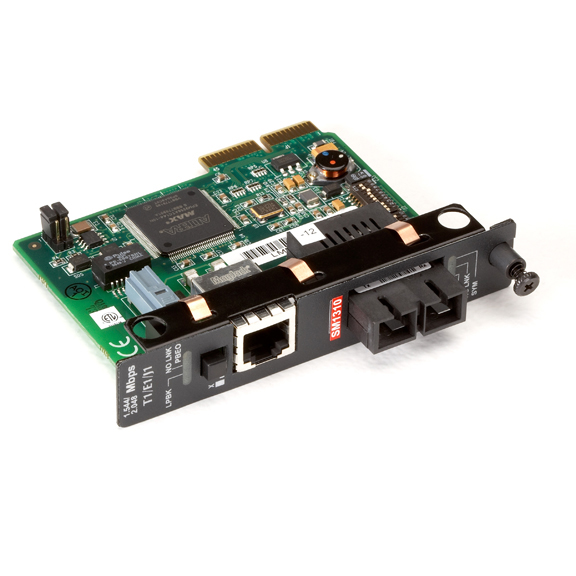

LME005A

Photo may show similar product

Other views

High-Density Media Converter System II T1/E1/J1 to Duplex Fiber Module, Twisted Pair (RJ-48) to Single-Mode Plus, 1310-nm, 40 km, SC

Extend 1.544-Mbps T1/J1 or 2.048-Mbps E1 over fiber optic cable.

LME005A

Extended Double Diamond™ Warranty Available
(3 Additional Year)

Product Highlights

  • Convert T1/E1/J1 to multimode or single-mode fiber for extending copper-based circuits.
  • Extend in interference-heavy areas—up to 2 kilometers (1.2 mi.) with the multimode models and as far as 80 kilometers (49.7 mi.) with the Long single-mode modules.
  • Install in our High-Density Media Converter System II Chassis.


  • Description

    High-Density Media Converter System II T1/E1/J1 to Duplex Fiber Module, Twisted Pair (RJ-48) to Single-Mode Plus, 1310-nm, 40 km, SC


    Quick Facts

  • Convert T1/E1/J1 to multimode or single-mode fiber for extending copper-based circuits.
  • Extend in interference-heavy areas—up to 2 kilometers (1.2 mi.) with the multimode models and as far as 80 kilometers (49.7 mi.) with the Long single-mode modules.
  • Install in our High-Density Media Converter System II Chassis.

  • Further Details

    These modules plug into the fully manageable High-Density Media Converter System II and convert RJ-48 twisted-pair copper links to fiber media for multimode or single-mode extensions over duplex fiber.

    These Physical Layer modules for the High-Density Media Converter System II belong to a large family of modular media converter and communications options for your managed enterprise network. With many modules to choose from, this system can adapt to even the most demanding network configurations.

    They convert the incoming electrical signal from one cable type and then transmit it over another type. The media converters are totally transparent to network operation, having no effect on the data being sent across the link. What's more, all of the modules are hot-swappable—you never need to power down a chassis to change a module.

    The High-Density Media Converter System II T1/E1/J1 to Duplex Fiber Modules featured here enable you to extend 1.544-Mbps T1/J1 or 2.048-Mbps E1 copper-based circuits over multimode or single-mode fiber optic cable. They're ideal for use with PBX systems or legacy telco circuits.

    These modules are selectable to support 1.544-Mbps T1 (ANSI T1.403), 2.048-Mbps E1 (G.703), or 1.544-Mbps J1. Offering protocol-selectable operation, the converters enable you to easily choose between T1/J1 and E1 rates via DIP switches on their boards. Built-in jitter removal ensures maximum throughput.

    The modules also feature full diagnostics, including three modes of operation for loopback testing (Fiber Analog Loopback, Fiber Digital Loopback, and Twisted-Pair Digital Loopback), a line integrity test feature, and a Transmit Data Source diagnostic feature. Manage the modules through an optional SNMP Management Module (LMC5200A) plugged into the High-Density Media Converter System II Chassis.

    In addition, an MDI/MDI-X switch on the modules configures the RJ-48 port for crossover or straight-through cable connection automatically.


    Technical Specifications for High-Density Media Converter System II T1/E1/J1 to Duplex Fiber Module, Twisted Pair (RJ-48) to Single-Mode Plus, 1310-nm, 40 km, SC:

    Encoding AMI, B8ZS, HDB3
    Fiber Type 50/125-µm or 62.5/125-µm multimode; or 9/125-µm single-mode
    Speed (Maximum) T1, J1: 1.544 Mbps;
    E1: 2.048 Mbps
    CE Approval Yes
    Connectors T1/E1/J1: (1) RJ-48;
    Fiber optic: (1) pair of ST®, SC, or MT-RJ
    Power From the High-Density Media Conversion System II Chassis

    These products work with:
  • High-Density Media Converter System II Chassis
  • SNMP Management Module (LMC5200A)
  • Questions? Contact our FREE Tech Support.

    NOTE: Technical specification weight is the unit weight. It is not the packaged shipping weight. For shipping weight, please contact Black Box customer service at 877-877-2269.


    Resources for High-Density Media Converter System II T1/E1/J1 to Duplex Fiber Module, Twisted Pair (RJ-48) to Single-Mode Plus, 1310-nm, 40 km, SC:


    Connect your High-Density Media Converter System II T1/E1/J1 to Duplex Fiber Module, Twisted Pair (RJ-48) to Single-Mode Plus, 1310-nm, 40 km, SC with:

    Double Diamond Warranty

    Extended 1 Year Warranty Available


    Protect your purchase with an additional 1 Year Double Diamond™ warranty!
    Cost: $53.60

    Extended 3 Year Warranty Available


    Protect your purchase with an additional 3 Year Double Diamond™ warranty!
    Cost: $107.19

    Diamond

    Double Diamond™ Warranty (Standard)

    Coverage:

    Take the risk out of equipment purchases with the Double Diamond™ Warranty from Black Box Network Services.


    The Double Diamond Warranty is our warranty that protects your Black Box® brand products* from accidental damage, including drops, water, and power surges.

    The High-Density Media Converter System II T1/E1/J1 to Duplex Fiber Module, Twisted Pair (RJ-48) to Single-Mode Plus, 1310-nm, 40 km, SC comes with a standard 6 Year warranty already included.

    During the warranty period, Black Box Network Services will repair or replace your damaged equipment within one week of receipt at NO CHARGE!*

    Plus, get an Extended Double Diamond Warranty.


    You can also extend your warranty or protect a previously purchased Black Box® brand product** for an additional year—for only 10% of the purchase price! Or, extend your coverage for a full three years for only 20% of the purchase price!

    Ordering an extended warranty is easy: When viewing a product in your shopping cart, just select the one or three years of additional coverage in the dropdown menu under “Warranty Options.” For details, contact Customer Service at 724-746-5500.

    * Warranty subject to certain exclusions and limitations
    ** Certain products may not be eligible.

    What’s more, we also have a 45-day return policy. Simply call Customer Service for a Return Authorization (RA) number, return your product in new condition and in the original package, and receive a full refund.

    Product SKU Price Quantity
    High-Density Media Converter System II T1/E1/J1 to Duplex Fiber Module, Twisted Pair (RJ-48) to Multimode, 1300-nm, 2 km, ST LME001A $461.95

    High-Density Media Converter System II T1/E1/J1 to Duplex Fiber Module, Twisted Pair (RJ-48) to Multimode, 1300-nm, 2 km, SC LME002A $461.95

    High-Density Media Converter System II T1/E1/J1 to Duplex Fiber Module, Twisted Pair (RJ-48) to Single-Mode Plus, 1310-nm, 40 km, ST LME004A $535.95



    Add to Cart

    Price: $535.95

    Quantity Available: 6

    Quantity

    Warranty

    Total

    Shipping Info

    In Stock - orders received before 5PM ET ship same day

    Weight: 0.406 lbs.
    HxWxD: 2 x 4.5 x 7.25 in.
