Networking > Media Converters

click photo to enlarge

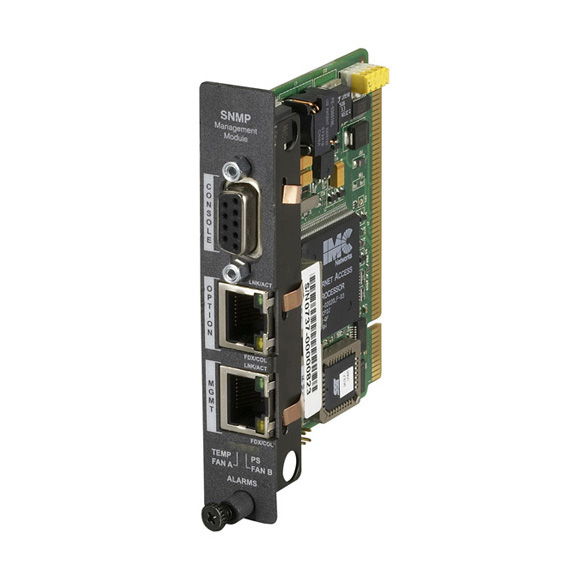

LMC5200A

Photo may show similar product

Other views

High-Density Media Converter System II SNMP Management Module , SNMP Management Module

Adds SNMP management capability to High-Density Media Converter System II managed chassis.

LMC5200A

Extended Double Diamond™ Warranty Available
(Three years for two)

Product Highlights

  • Supports full platform control when installed in a managed chassis.
  • Easy installation—just slide the module in until seated firmly against the chassis backplane and tighten a screw.

  • Description

    SNMP Management Module for High-Density Media Converter System II Chassis


    Quick Facts

  • Supports full platform control when installed in a managed chassis.
  • Easy installation—just slide the module in until seated firmly against the chassis backplane and tighten a screw.

  • Further Details


    The managed chassis models of the High-Density Media Converter System II become fully manageable if you add this optional SNMP Management Module. It features a 10BASE-T/100BASE-TX twisted-pair port for connection to your LAN and is used in the chassis to enable both module and chassis management. Once connected to your network, a chassis can even be assigned its own IP address.

    The software included with the SNMP Management Module enables you to configure and manage your chassis and its connections. Through the user-friendly IView® interface, you can manage the chassis’ modules and any intelligent networking devices on virtually any 32-bit Windows® system. The GUI features device control panels, gives you detailed conversion port information, presents statistical information as charts, and more!

    And because the management module includes SNMP MIBs for support of industry-standard SNMP, you can monitor chassis temperature and voltage levels, diagnose network problems, and set up SNMP traps to alert you to potential network failures to lessen any potential downtime.

    You can even set a SNMP write-lock switch to protect the configurations of your installed modules from being accidentally overwritten.

    For out-of-band management, connect a console to the SNMP module’s RS-232 port. The managed system uses DCHP, includes a TFTP client, and supports Telnet.


    Technical Specifications for High-Density Media Converter System II SNMP Management Module , SNMP Management Module:

    Approvals — FCC Class B, Part 15
    Environmental — Operating Temperature: +32 to +122° F (0 to +50° C);
    Storage Temperature: -13 to +158° F (-25 to +70° C);
    Humidity: 5 to 95% (noncondensing)
    SNMP Supported — V1 and V2c compatible
    CE Approval — Yes
    Connectors — Network management: (1) RJ-45 (10BASE-T/100BASE-TX);
    Serial management: (1) DB9 F (RS-232), with included serial cable;
    Also has an OPTION port (for future use)
    Indicators — LNK/ACT, FDX/COL, TEMP, PS, FAN A/FAN B
    Power — From the chassis
    NOTE: For assistance specifying your complete High-Density Media Converter System II, contact our FREE Tech Support experts today.

    This product works with:
  • High-Density Media Converter Managed Chassis
  • Questions? Contact our FREE Tech Support.

    NOTE: Technical specification weight is the unit weight. It is not the packaged shipping weight. For shipping weight, please contact Black Box customer service at 877-877-2269.


    Resources for High-Density Media Converter System II SNMP Management Module , SNMP Management Module:

    Product Data Sheets

    Firmware

    • Media Converters/High-Density Media Converter System II Firmware
      Firmware for LMC5200, LMC5228A, LMC5208A-R2, LMC5207A-R2, LMC5227A, LMC5205A, LMC5206A, LMC5204A, LMC5203A, LMC5237A, LMC5236A, LMC5235A, LMC5234A, and LMC5233A (1)


    Connect your High-Density Media Converter System II SNMP Management Module , SNMP Management Module with:

    Accessory: LMC5203A

    High-Density Media Converter System II Chassis, Managed, 6-Slot Desktop/Rackmount, AC Power

    High-Density Media Converter System II Chassis, Managed, 6-Slot Desktop/Rackmount, AC Power
