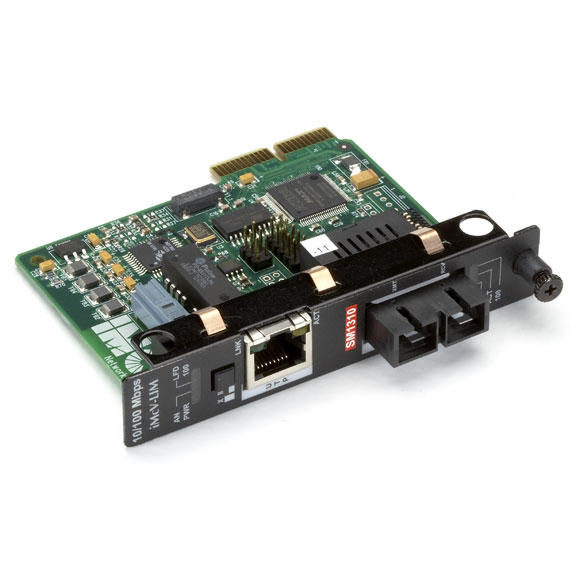

LMC5193C

Photo may show similar product

Other views

High-Density Media Converter System II Layer 1 Module, 10BASE-T/100BASE-TX to 10BASE-FL/100BASE-FX, Single-Mode, 1310-nm, 40 km, SC

Extend a copper 10/100 network up to 40 kilometers over fiber!

LMC5193C

Extended Double Diamond™ Warranty Available
(3 Additional Year)

Product Highlights

  • This module plugs into the fully manageable High-Density Media Converter System II.
  • Convert 10- or 100-Mbps copper to 100-Mbps multimode 1300-nm or single-mode 1310-nm fiber.
  • Enable you to increase your network reach.
  • Install in our High-Density Media Converter System II Chassis.
  • LinkLoss™ notifies you of "silent failures" on the copper-to-fiber links.

  • Description

    High-Density Media Converter System II Layer 1 Module, 10BASE-T/100BASE-TX to 10BASE-FL/100BASE-FX, Single-Mode, 1310-nm, 40 km, SC


    Quick Facts

  • This module plugs into the fully manageable High-Density Media Converter System II.
  • Convert 10- or 100-Mbps copper to 100-Mbps multimode 1300-nm or single-mode 1310-nm fiber.
  • Enable you to increase your network reach.
  • Install in our High-Density Media Converter System II Chassis.
  • LinkLoss™ notifies you of "silent failures" on the copper-to-fiber links.

  • Further Details

    These Layer 1 modules for the High-Density Media Converter System II belong to a large family of modular media converter and communications options for your managed enterprise network. With many modules to choose from, this system can adapt to even the most demanding network configurations.

    The modular media converters for the High-Density Media Converter System II convert the incoming electrical signal from one cable type and then transmit it over another type. Bridging the gap between two different Ethernet types, the media converters are totally transparent to network operation, having no effect on the data being sent across the link. What's more, all of the modules are hot-swappable—you never need to power down a chassis to change a module.

    The High-Density Media Converter System II 10BASE-T/100BASE-TX to 100BASE-FX Layer 1 Modules featured here have an autosensing 10-/100-Mbps copper port and a 100-Mbps multimode or single-mode fiber port. They're a good choice for remote Fast Ethernet connections to Ethernet devices that may later be upgraded to Fast Ethernet. Use the converters to increase your fiber reach across your campus or far beyond your LAN—up to 40 kilometers (24.8 mi.) with the singe-mode modules!

    All of the modules include a LinkLoss™ feature, which notifies you of "silent failures" on copper-to-fiber links. LinkLoss enables you to troubleshoot network problems just by looking at the media converter's Link LED—the link status of the fiber segment will always be reflected by the twisted-pair segment so you're informed quickly of fiber problems.

    This product works with:
  • High-Density Media Converter System II Chassis (LMC5203A–LMC5206A)
  • Questions? Contact our FREE Tech Support.


    Technical Specifications for High-Density Media Converter System II Layer 1 Module, 10BASE-T/100BASE-TX to 10BASE-FL/100BASE-FX, Single-Mode, 1310-nm, 40 km, SC:

    This product works with:
  • High-Density Media Converter System II Chassis (LMC5203A–LMC5206A)
  • Questions? Contact our FREE Tech Support.

    NOTE: Technical specification weight is the unit weight. It is not the packaged shipping weight. For shipping weight, please contact Black Box customer service at 877-877-2269.


    Resources for High-Density Media Converter System II Layer 1 Module, 10BASE-T/100BASE-TX to 10BASE-FL/100BASE-FX, Single-Mode, 1310-nm, 40 km, SC:


    Connect your High-Density Media Converter System II Layer 1 Module, 10BASE-T/100BASE-TX to 10BASE-FL/100BASE-FX, Single-Mode, 1310-nm, 40 km, SC with:
