Networking > Media Converters

click photo to enlarge

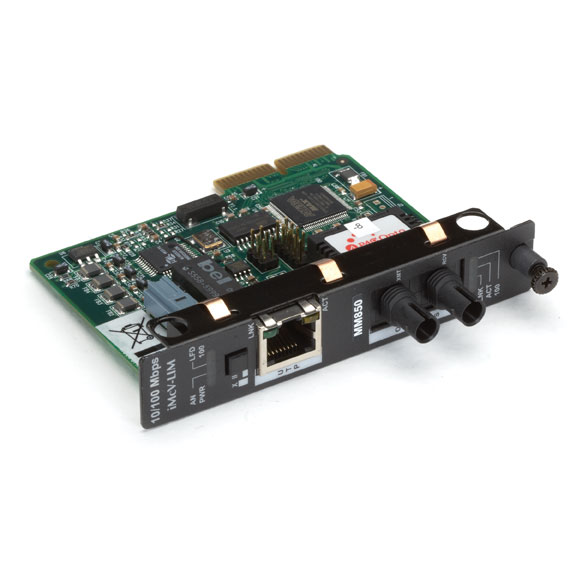

LMC5040C

Photo may show similar product

Other views

High-Density Media Converter System II Layer 1 Module, 10BASE-T/100BASE-TX to 10BASE-FL/100BASE-FX, Multimode, 850-nm, 300 m, ST

Extend a copper 10/100 network up to 300 meters over fiber!

LMC5040C

Extended Double Diamond™ Warranty Available
(Three years for two)

Product Highlights

  • Converts 10- or 100-Mbps copper to 100-Mbps multimode fiber operating at 850-nm wavelength.
  • Enables you to extend a network in areas with electrical interference.
  • Installs in our High-Density Media Converter System II Chassis.
  • LinkLoss™ notifies you of “silent failures” on the copper-to-fiber links.

  • Description

    High-Density Media Converter System II Layer 1 Module, 10BASE-T/100BASE-TX to 10BASE-FL/100BASE-FX, Multimode, 850-nm, 300 m, ST


    Quick Facts

  • Converts 10- or 100-Mbps copper to 100-Mbps multimode fiber operating at 850-nm wavelength.
  • Enables you to extend a network in areas with electrical interference.
  • Installs in our High-Density Media Converter System II Chassis.
  • LinkLoss™ notifies you of “silent failures” on the copper-to-fiber links.

  • Further Details

    This Layer 1 module for the High-Density Media Converter System II belongs to a large family of modular media converter and communications options for your managed enterprise network. With many modules to choose from, this system can adapt to even the most demanding network configurations.

    The modular media converters for the High-Density Media Converter System II convert the incoming electrical signal from one cable type and then transmit it over another type. Bridging the gap between two different Ethernet types, the media converters are totally transparent to network operation, having no effect on the data being sent across the link. What’s more, all of the modules are hot-swappable—you never need to power down a chassis to change a module.

    The High-Density Media Converter System II 10BASE-T/100BASE-TX to 100BASE-SX Layer 1 Module featured here has an autosensing 10-/100-Mbps copper port and a 100-Mbps multimode fiber port. It’s a good choice for remote Fast Ethernet connections to Ethernet devices that may later be upgraded to Fast Ethernet. Use multiple converters to increase your fiber reach throughout your enterprise—up to 300 meters (984 ft.), in fact.

    The module includes a LinkLoss™ feature, which notifies you of “silent failures” on copper-to-fiber links. LinkLoss enables you to troubleshoot network problems just by looking at the media converter’s Link LED—the link status of the fiber segment will always be reflected by the twisted-pair segment so you’re informed quickly of fiber problems.


    Technical Specifications for High-Density Media Converter System II Layer 1 Module, 10BASE-T/100BASE-TX to 10BASE-FL/100BASE-FX, Multimode, 850-nm, 300 m, ST:

    This product works with:
  • High-Density Media Converter System II Chassis (LMC5203A–LMC5206A)
  • Questions? Contact our FREE Tech Support.

    NOTE: Technical specification weight is the unit weight. It is not the packaged shipping weight. For shipping weight, please contact Black Box customer service at 877-877-2269.


    Resources for High-Density Media Converter System II Layer 1 Module, 10BASE-T/100BASE-TX to 10BASE-FL/100BASE-FX, Multimode, 850-nm, 300 m, ST:


    Connect your High-Density Media Converter System II Layer 1 Module, 10BASE-T/100BASE-TX to 10BASE-FL/100BASE-FX, Multimode, 850-nm, 300 m, ST with:

    Accessory: LGC5108C-R4

    High-Density Media Converter System II 1000BASE-TX to 1000BASE-SX Duplex Layer 1 Module, Multimode, 850-nm, 220 m, SC

    High-Density Media Converter System II 1000BASE-TX to 1000BASE-SX Duplex Layer 1 Module, Multimode, 850-nm, 550 m, SC

    Accessory: LGC5184C-R3

    High-Density Media Converter System II 1000BASE-TX to 1000BASE-LX Duplex Layer 1 Module, Single-Mode, 1310-nm, 15 km, SC

    High-Density Media Converter System II 1000BASE-TX to 1000BASE-LX Duplex Layer 1 Module, Single-Mode, 1310-nm, 15 km, SC

    Accessory: LMC5203A

    High-Density Media Converter System II Chassis, Managed, 6-Slot Desktop/Rackmount, AC Power

    High-Density Media Converter System II Chassis, Managed, 6-Slot Desktop/Rackmount, AC Power

    Accessory: LMC5014C-R2

    High-Density Media Converter System II, Layer 1 Module, 10BASE-T to 10BASE-FL, Multimode, 850-nm, 4 km, ST

    High-Density Media Converter System II, Layer 1 Module, 10BASE-T to 10BASE-FL, Multimode, 850-nm, 4 km, ST

    Accessory: LMC5196C

    High-Density Media Converter System II Layer 1 Module, 10BASE-T/100BASE-TX to 10BASE-FL/100BASE-FX, Multimode, 1300-nm, 2 km, ST

    High-Density Media Converter System II Layer 1 Module, 10BASE-T/100BASE-TX to 10BASE-FL/100BASE-FX, Multimode, 1300-nm, 2 km, ST

    Accessory: LGC5844C-R3

    High-Density Media Converter System II Gigabit Module, 1000BASE-TX to 1000BASE-SSLX Single-Strand, 1310-nm TX/1550-nm RX, 15 km, SC

    High-Density Media Converter System II Gigabit Module, 1000BASE-TX to 1000BASE-SSLX Single-Strand, 1310-nm TX/1550-nm RX, 15 km, SC
