LMC5201A

Photo may show similar product

Other views

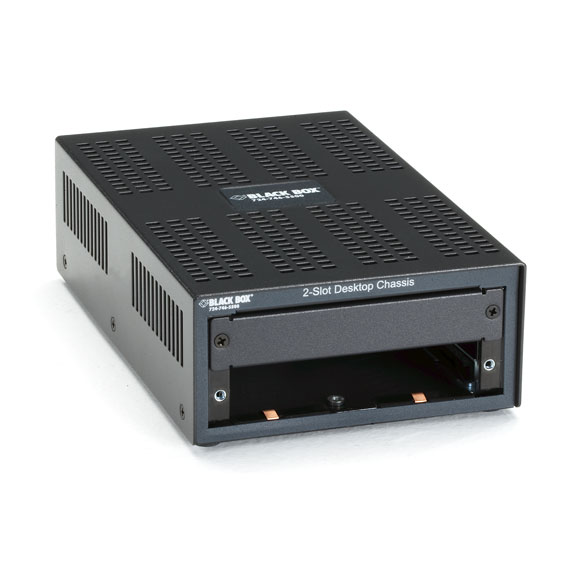

High-Density Media Converter System II Chassis, Unmanaged, 2-Slot Desktop, AC Power

House two media-converter modules in a convenient desktop chassis.

LMC5201A

Extended Double Diamond™ Warranty Available
(3 Additional Year)

Product Highlights

  • Compatible with a number of modules: copper-to-fiber, fiber-to-fiber, single-strand, VDSL, and others!


  • Description

    High-Density Media Converter System II Chassis, Unmanaged, 2-Slot Desktop, AC Power


    Quick Facts

  • Compatible with a number of modules: copper-to-fiber, fiber-to-fiber, single-strand, VDSL, and others!

  • Further Details

  • Provides unmanaged remote office links for up to two media-converter modules.
  • We also offer several managed chassis models: a 3-slot desktop chassis, a 6-slot 1U-high rackmount or desktop chassis, and a 20-slot 3U-high rackmount chassis.

  • The Black Box® High-Density Media Converter System II 2-Slot Chassis makes it easy to consolidate multiple media converters in a single platform at a central point in your application.

    Installing modules is easy—you just slide them in until seated firmly against the chassis backplane and tighten a screw.

    Order unmanaged chassis for remote sites.
    This compact desktop chassis can be used as a remote unit to communicate with the larger High-Density Media Converter System II Chassis located at a central office.

    This chassis can also be used in pairs if you don't require any SNMP management capabilities in your application.

    To save desktop space, use the optional brackets to mount your chassis in a rack or on a wall. You can also order a Rackmount Shelf, which enables you to install up to three unmanaged chassis in a standard rack.

    For assistance specifying your complete High-Density Media Converter System II, contact our FREE Tech Support.

    This product works with:
  • SNMP Management Module (LMC5200A)
  • High-Density Media Converter System II Layer 1 Modules
  • High-Density Media Converter System II Layer 2 Modules
  • High-Density Media Converter System II Fiber Mode Conversion/Repeater Modules
  • High-Density Media Converter System II VDSL Modules
  • High-Density Media Converter System II T1/E1/J1 Modules
  • High-Density Media Converter System II DS3/E3/STS-1 Modules
  • High-Density Media Converter System II Bandwidth Manager (LE1028C)
  • CAT5 100-MHz Solid-Conductor Cable, 4-Pair, Straight-Pinned (EYN737MS)
  • Questions? Contact our FREE Tech Support.


    Technical Specifications for High-Density Media Converter System II Chassis, Unmanaged, 2-Slot Desktop, AC Power:

    Approvals FCC Class B, Part 15
    Environmental Operating Temperature: +32 to +122° F (0 to +50° C)
    Humidity: 5 to 95% (noncondensing)
    CE Approval Yes
    Indicators LNK, FDX, RCV, XMT, MGMT, SNMP
    Power 115-240 VAC, 50-60 Hz, autosensing
    Size 2.3"H x 4.75"W x 7.3"D (5.8 x 12.1 x 18.6 cm)
    Weight 3.2 lb. (1.5 kg)
    NOTE: For assistance specifying your complete High-Density Media Converter System II, contact our FREE Tech Support experts today.

    This product works with:
  • SNMP Management Module (LMC5200A)
  • High-Density Media Converter System II Layer 1 Modules
  • High-Density Media Converter System II Layer 2 Modules
  • High-Density Media Converter System II Fiber Mode Conversion/Repeater Modules
  • High-Density Media Converter System II VDSL Modules
  • High-Density Media Converter System II T1/E1/J1 Modules
  • High-Density Media Converter System II DS3/E3/STS-1 Modules
  • High-Density Media Converter System II Bandwidth Manager (LE1028C)
  • CAT5 100-MHz Solid-Conductor Cable, 4-Pair, Straight-Pinned (EYN737MS)
  • Questions? Contact our FREE Tech Support.

    NOTE: Technical specification weight is the unit weight. It is not the packaged shipping weight. For shipping weight, please contact Black Box customer service at 877-877-2269.
