Networking > Media Converters


click photo to enlarge

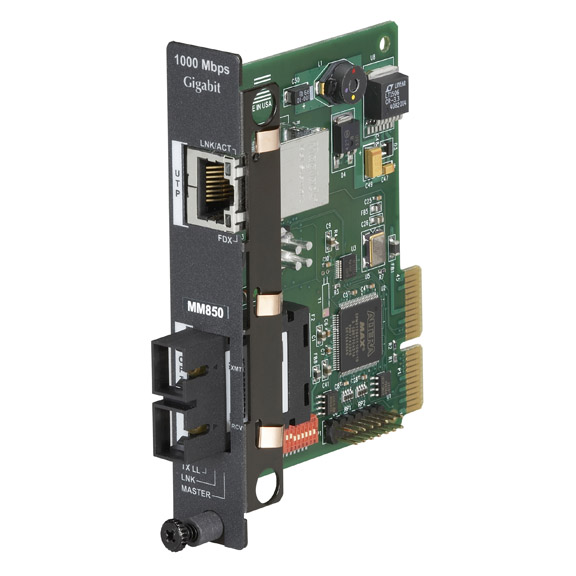

LGC5108C-R4

Photo may show similar product

Other views

High-Density Media Converter System II 1000BASE-TX to 1000BASE-SX Duplex Layer 1 Module, Multimode, 850-nm, 220 m, SC

Convert your Gigabit copper network to fiber and extend it 550 meters.

LGC5108C-R4

Extended Double Diamond™ Warranty Available
(3 Additional Year)

Product Highlights

  • Converts Gigabit-speed copper networks to multimode fiber for 1000-Mbps network extension.
  • Extends Gigabit Ethernet connections up to 550 meters (1640.2 ft.).
  • Enables you to establish backbone runs either within a building or between neighboring buildings in a campus environment.


  • Description

    High-Density Media Converter System II 1000BASE-TX to 1000BASE-SX Duplex Layer 1 Module, Multimode, 850-nm, 550 m, SC


    Quick Facts

  • Converts Gigabit-speed copper networks to multimode fiber for 1000-Mbps network extension.
  • Extends Gigabit Ethernet connections up to 550 meters (1640.2 ft.).
  • Enables you to establish backbone runs either within a building or between neighboring buildings in a campus environment.

  • Further Details

  • Installs in our High-Density Media Converter System II Chassis.
  • LinkLoss™ notifies you of "silent failures" on the copper-to-fiber links.

  • This Layer 1 module for the High-Density Media Converter System II belongs to a large family of modular media converter and communications options for your managed enterprise network. With many modules to choose from, this system can adapt to even the most demanding network configurations.

    The modular media converters for the High-Density Media Converter System II convert the incoming electrical signal from one cable type and then transmit it over another type. Bridging the gap between two different Ethernet types, the media converters are totally transparent to network operation, having no effect on the data being sent across the link. What's more, all the modules are hot-swappable—you never need to power down a chassis to change a module.

    The High-Density Media Converter System II 1000BASE-TX to 1000BASE-SX Duplex Layer 1 Module featured here is ideal for establishing Gigabit fiber links. It provides you with blazing Gigabit throughput at distances of up to 550 meters (1640.2 ft.) over multimode fiber cable, using less-expensive short-wavelength (850 nm) optics in the receive and transmit process.

    The Configuration Control feature retains the latest configuration regardless of whether it was set using DIP switches or SNMP.

    This module has LinkLoss™, which notifies you of "silent failures" on copper-to-fiber links. LinkLoss enables you to troubleshoot network problems just by looking at the media converter's Link LED—the link status of the fiber segment will always be reflected by the twisted-pair segment so you're informed quickly of fiber problems. The module also features link fault pass-through (LFPT), which automatically shuts down a link if its link partner fails.


    Technical Specifications for High-Density Media Converter System II 1000BASE-TX to 1000BASE-SX Duplex Layer 1 Module, Multimode, 850-nm, 220 m, SC:


    This product works with:
  • High-Density Media Converter System II Chassis (LMC5203A–LMC5206A)
  • Questions? Contact our FREE Tech Support.

    NOTE: Technical specification weight is the unit weight. It is not the packaged shipping weight. For shipping weight, please contact Black Box customer service at 877-877-2269.


    Resources for High-Density Media Converter System II 1000BASE-TX to 1000BASE-SX Duplex Layer 1 Module, Multimode, 850-nm, 220 m, SC:

    Manuals

    • High-Density Media Converter System II Gigabit Module Manual
      Manual for LGC5845C-R3, LGC5844C-R3, LGC5846C-R3, LGC5847C-R3, LGC5184C-R3, LGC5108C-R4, and LGC5109C-R4 (Version 1)

    Product Data Sheets

    Black Box Explains


    Connect your High-Density Media Converter System II 1000BASE-TX to 1000BASE-SX Duplex Layer 1 Module, Multimode, 850-nm, 220 m, SC with:

    Accessory: LMC5233A

    High-Density Media Converter System II Chassis, Managed, 3-Slot Desktop, AC Power

    High-Density Media Converter System II Chassis, Managed, 3-Slot Desktop, AC Power

    Accessory: LMC5203A

    High-Density Media Converter System II Chassis, Managed, 6-Slot Desktop/Rackmount, AC Power

    High-Density Media Converter System II Chassis, Managed, 6-Slot Desktop/Rackmount, AC Power

    Accessory: LMC5227A

    High-Density Media Converter System II Chassis, 20-Slot Rackmount, AC Power

    High-Density Media Converter System II Chassis, 20-Slot Rackmount, AC Power

    Double Diamond Warranty

    Standard Manufacturer's Warranty


    A warranty is included.

    Extended 1 Year Warranty Available


    Protect your purchase with an additional 1 Year Double Diamondâ„¢ warranty!
    Cost: $51.50

    Extended 3 Year Warranty Available


    Protect your purchase with an additional 3 Year Double Diamondâ„¢ warranty!
    Cost: $102.99

    Diamond

    Double Diamond™ Warranty (Standard)

    Coverage:

    Take the risk out of equipment purchases with the Double Diamond™ Warranty from Black Box Network Services.


    The Double Diamond Warranty is our no-questions-asked warranty that protects your Black Box® brand products* from accidental damage, including drops, water, and power surges.

    Most of our products come with a one- or two-year warranty. Some products—such as copper cables, manual switches, cabinets, and racks—are even guaranteed for life!

    During the warranty period, Black Box Network Services will repair or replace your damaged equipment within one week of receipt at NO CHARGE!

    Plus, get an Extended Double Diamond Warranty.


    You can also extend your warranty or protect a previously purchased Black Box® brand product* for an additional year—for only 10% of the purchase price! Or, extend your coverage for a full three years for only 20% of the purchase price!

    Ordering an extended warranty is easy: When viewing a product in your shopping cart, just select the one or three years of additional coverage in the dropdown menu under “Warranty Options.” For details, contact Customer Service at 724-746-5500.

    * Certain products may not be eligible.

    Warranty Compared

    Black Box® Double Diamond™ Warranty The Competition
    Warranty Length One Year to Lifetime, Depending on the Product. Read the fine print.
    Guaranteed for Life! Black Box® Brand Copper Cables, Manual Switches and More! No.
    Accidental Damage 100% Covered! No.
    Water Damage 100% Covered! No.
    Power Surges 100% Covered! No.
    Warranty Replacements No Questions Asked! ?
    Tech Support Hotline 100% FREE! $$$

    What’s more, we also have a 45-day, no-questions-asked return policy. Simply call Customer Service for a Return Authorization (RA) number, return your product in new condition and in the original package, and receive a full refund.



    Add to Cart

    Price: $514.95

    Quantity Available: 32

    Quantity

    Warranty

    Total

    Shipping Info

    Weight: 0.406 lbs.
    HxWxD: 2 x 7.25 x 4.5 in.
