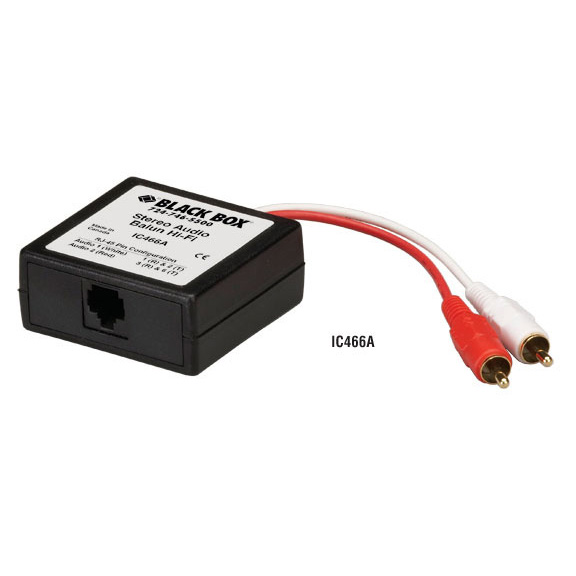

IC466A

Photo may show similar product

Other views

Hi-Fi Stereo Audio Balun

Extend your Hi-Fi analog audio over inexpensive twisted-pair cable.

IC466A

Extended Double Diamond™ Warranty Available
(Lifetime)

Product Highlights

  • Link Hi-Fi stereo audio devices up to 5000 feet (1.5 m) apart using inexpensive UTP cable instead of coax cable.
  • Guaranteed for life!

  • Description

    Hi-Fi Stereo Audio Balun, Analog


    Quick Facts

  • Link Hi-Fi stereo audio devices up to 5000 feet (1.5 m) apart using inexpensive UTP cable instead of coax cable.
  • Guaranteed for life!

  • Further Details

  • Lightweight and compact—fits next to audio equipment.
  • Baluns work with full-range, hi-fidelity audio frequency systems.
  • Extend the distance between input and output devices up to 3250 feet (1 km).

    Use inexpensive UTP cable instead of bulky coax to link an analog audio source to an integrated audio-video receiver or audio Hi-Fi system. These tiny baluns are ideal for multimedia configurations—use them in boardrooms, classrooms, auditoriums, home installations, and intercom systems.

    Connect DVD players, satellite receivers, MPEG players, laptops, hi-fidelity stereo audio amplifiers, audio switchers, AV monitors, and other Hi-Fi audio equipment to a Hi-Fi audio output with a pair of Hi-Fi Stereo Audio Baluns.

    The baluns operate in a point-to-point configuration at a distance of up to 3250 feet (1 km). They're compatible with other BLACK BOX® baluns, such as the Audio Balun, Analog (IC460A) and the CATV Balun (IC448A-R2).

  • Technical Specifications for Hi-Fi Stereo Audio Balun:

    Bandwidth 20 Hz to 20 kHz at up to 3250 ft. (1 km)
    Input (Maximum) — 1.1 Vp-p (unbalanced)
    Cable Required 24 AWG or lower solid copper unshielded twisted-pair (UTP) cable;
    Impedance: 100 ohms at 1 MHz;
    Maximum capacitance: 20 pf/ft.;
    Attenuation: 6.6 dB/1000 ft. (305 m) at 1 MHz
    Common Mode Rejection Greater than 60 dB at 1 kHz, greater than 40 dB at 20 kHz and 3250 ft. (1 km)
    Distance (Maximum) 3250 ft. (1 km)
    Enclosure ABS fire-retardant plastic
    Impedance Audio source: 100 ohms;
    Audio receiver: 10 kohms or greater
    Insertion Loss Per balun pair: Less than 2 dB
    Transmission Transparent to the user
    CE Approval Yes
    Connectors Audio: (2) RCA connectors on a 6" (15.2-cm) Y cable;
    UTP: (1) RJ-45
    Size 1"H x 2.4"W x 2.3"D (2.5 x 6.1 x 5.8 cm)
    Weight 0.2 lb. (0.1 kg)
    NOTE: Must be used in pairs.

    This product works with:
  • Audio Balun, Analog (IC460A)
  • CATV Balun (IC448A-R2)
  • Questions? Contact our FREE Tech Support.

    NOTE: Technical specification weight is the unit weight. It is not the packaged shipping weight. For shipping weight, please contact Black Box customer service at 877-877-2269.
