Networking > Extenders

click photo to enlarge

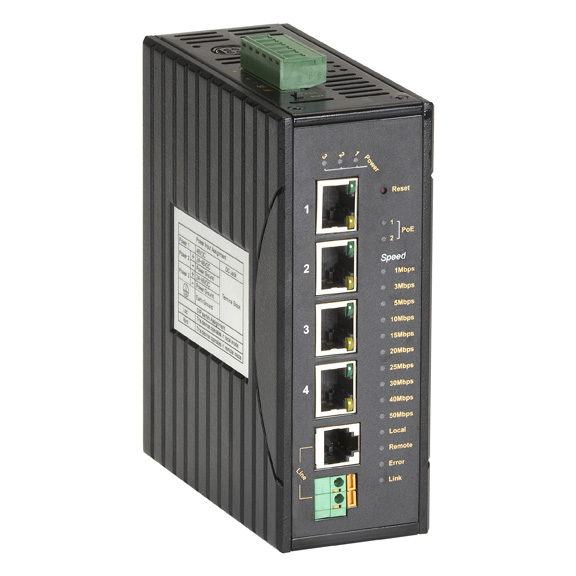

LBPS304A

Photo may show similar product

Other views

Hardened VDSL Ethernet Extender with PoE+, 4-Port

Extend Ethernet over voice-grade UTP cable and add four Ethernet ports, including two PoE ports.

LBPS304A

Extended Double Diamond™ Warranty Available
(Three years for two)

Product Highlights

  • Extends 10BASE-T/100BASE-TX Ethernet across ordinary voice-grade copper wire.
  • Ideal for last-mile applications.
  • Built-in switch with four 10-/100-Mbps Ethernet ports; two support PoE.
  • Acts as a Power over Ethernet PSE providing 802.3at compliant power to two PoE devices.
  • Supports an extreme temperature range of -40 to +167° F (-40 to +75° C).
  • Supports 50 Mbps for distances up to 984 feet (300 m) and 1 Mbps for distances of up to 6232 feet (1900 m).


    • Description

    Hardened VDSL Ethernet Extender with PoE+, 4-Port


    Quick Facts

  • Extends 10BASE-T/100BASE-TX Ethernet across ordinary voice-grade copper wire.
  • Ideal for last-mile applications.
  • Built-in switch with four 10-/100-Mbps Ethernet ports; two support PoE.
  • Acts as a Power over Ethernet PSE providing 802.3at compliant power to two PoE devices.
  • Supports an extreme temperature range of -40 to +167° F (-40 to +75° C).
  • Supports 50 Mbps for distances up to 984 feet (300 m) and 1 Mbps for distances of up to 6232 feet (1900 m).

    • Further Details

  • Meets NEMA TS1 and TS2 specifications for traffic control equipment.
  • IP30-rated hardened aluminum case.
  • Redundant power inputs with terminal block and DC jack.
  • Specific design for industrial communication applications.
  • UL® 508 safety certification.
  • Includes overload current protection and reverse polarity protection.

    • The Hardened VDSL Ethernet Extender with PoE+ is ideal for last-mile applications. It extends Ethernet up to 300 meters at speeds of up to 50 Mbps. Plus, this extender is an 802.3at PoE PSE, providing up to 30 watts of power to two PoE powered devices such as switches or wireless access points.

    This extender must be used in pairs. You can set the extender as a local or remote device with a DIP switch and use one on each end of the link, or use it together with our 1-Port Hardened VDSL Ethernet Extender with PoE+ (LBPS301A), the LinkGain Ethernet Extender over VDSL (LB300A-R3), or the 10BASE-T/100BASE-TX Hardened Ethernet Extender over VDSL (LB303A).

    The extender is designed for use in sheltered outdoor environments, and features a hardened aluminum case. It supports a temperature range of -40 to +167° F (-40 to +75° C). Plus, it complies with IEC 61000-6-2 EMC Part 6-2: Generic standards—immunity for industrial environments.

    The extender features a built-in switch with four Ethernet ports. Two ports are standard autonegotiating 10BASE-T/100BASE-TX RJ-45 ports with Auto MDI/MDI-X. The other two ports also provide 802.3at PoE-compliant power to PoE-powered devices. The extender port is an RJ-11 or a terminal block port, supporting symmetrical VDSL. The extender can be DIN-rail mounted, panel mounted, or rackmounted.


    Technical Specifications for Hardened VDSL Ethernet Extender with PoE+, 4-Port:

    Environmental — Operating temperature: -40 to +167° F (-40 to +75° C);
    Storage temperature: -40 to +185° F (-40 to +80° C);
    Humidity: 5 to 95% noncondensing
    Standards — IEEE 802.3 10BASE-T, IEEE 802.3u 100BASE-TX, IEEE 802.3x, Ethernet over VDSL, IEEE 802.3at
    RoHS — Yes
    Connectors — (4) 10-/100-Mbps Ethernet RJ-45;
    (1) VDSL RJ-11;
    (1) VDSL terminal block
    Indicators — LEDs: Per unit: (3) Power, (1) PoE;
    Per Ethernet port: (1) Link/Activity, (1) Full-duplex;
    Extender Port: (1) Error, (1) Link, (1) Local, (1) Remote, (10) speed
    Power — Input voltage: 24- to 48-VDC terminal block or 48-VDC DC jack;
    Output: Up to 30 watts per 802.3at PoE port
    Size — 5.3"H x 2"W x 4.3"D (12.5 x 5 x 11 cm)
    Weight — 1.8 lb. (0.8 kg)


    NOTE: Technical specification weight is the unit weight. It is not the packaged shipping weight. For shipping weight, please contact Black Box customer service at 877-877-2269.
