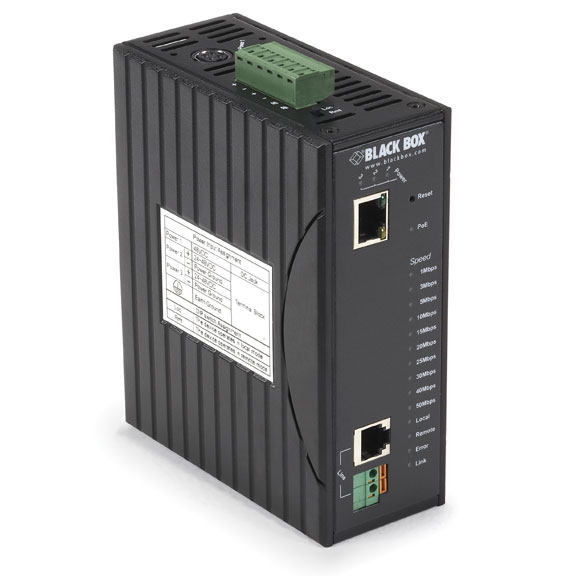

LBPS301A

Photo may show similar product

Other views

Hardened VDSL Ethernet Extender with PoE+, 1-Port

Extend Ethernet over voice-grade UTP cable and provide power to a PoE device.

LBPS301A

Extended Double Diamond™ Warranty Available
(3 Additional Year)

Product Highlights

  • Extends 10BASE-T/100BASE-TX Ethernet across ordinary voice-grade copper wire.
  • Ideal for last-mile applications.
  • Supports an extreme temperature range of -40 to +167° F (-40 to +75° C).
  • Acts as a Power over Ethernet PSE providing 802.3at compliant power to a PoE device.
  • Supports 50 Mbps for distances up to 984 feet (300 m) and 1 Mbps for distances of up to 6232 feet (1900 m).


  • Description

    Hardened VDSL Ethernet Extender with PoE+, 1-Port


    Quick Facts

  • Extends 10BASE-T/100BASE-TX Ethernet across ordinary voice-grade copper wire.
  • Ideal for last-mile applications.
  • Supports an extreme temperature range of -40 to +167° F (-40 to +75° C).
  • Acts as a Power over Ethernet PSE providing 802.3at compliant power to a PoE device.
  • Supports 50 Mbps for distances up to 984 feet (300 m) and 1 Mbps for distances of up to 6232 feet (1900 m).

  • Further Details

  • Meets NEMA TS1 and TS2 specifications for traffic control equipment.
  • IP30-rated hardened aluminum case.
  • Redundant power inputs with terminal block and DC jack.
  • Specific design for industrial communication applications.
  • UL® 508 safety certification.
  • Includes overload current protection and reverse polarity protection.

  • The Hardened VDSL Ethernet Extender with PoE+ is ideal for last-mile applications. It extends Ethernet up to 300 meters at speeds of up to 50 Mbps. Plus, this extender is an 802.3at PoE PSE, providing up to 30 watts of power to a PoE powered device such as a switch or wireless access point.

    This extender must be used in pairs. You can set the extender as a local or remote device with a DIP switch and use one on each end of the link, or use it together with our Hardened VDSL Ethernet Extender with PoE+, 4-Port (LBPS304A), the LinkGain Ethernet Extender over VDSL (LB300A-R3), or the 10BASE-T/100BASE-TX Hardened Ethernet Extender over VDSL (LB303A).

    The extender is designed for use in sheltered outdoor environments, and features a hardened aluminum case. It supports a temperature range of -40 to +167° F (-40 to +75° C). Plus, it complies with IEC 61000-6-2 EMC Part 6-2: Generic standards—immunity for industrial environments.

    The Ethernet port is a standard autonegotiating 10BASE-T/100BASE-TX RJ-45 port with Auto MDI/MDI-X. This port also provides 802.3at PoE-compliant power to a PoE-powered device. The extender port is an RJ-11 or a terminal block port, supporting symmetrical VDSL. The extender can be DIN rail mounted, panel mounted, or rackmounted.


    Technical Specifications for Hardened VDSL Ethernet Extender with PoE+, 1-Port:

    Environmental Operating temperature: -40 to +167° F (-40 to +75° C);
    Storage temperature: -40 to +185° F (-40 to +80° C);
    Humidity: 5 to 95% noncondensing
    Standards IEEE 802.3 10BASE-T, IEEE 802.3u 100BASE-TX, IEEE 802.3x, Ethernet over VDSL, IEEE802.3at
    RoHS Yes
    Connectors (1) 10-/100-Mbps Ethernet RJ-45;
    (1) VDSL RJ-11;
    (1) VDSL terminal block
    Indicators LEDs: Per unit: (3) Power, (2) PoE;
    Per Ethernet port: (1) Link/Activity, (1) Full-duplex;
    Extender Port: (1) Error, (1) Link, (1) Local, (1) Remote, (10) speed
    Power Input voltage: 24- to 48-VDC terminal block or 48-VDC DC jack;
    Output: Up to 30 watts 802.3at PoE
    Size 5.3"H x 2"W x 4.3"D (12.5 x 5 x 11 cm)
    Weight 1.8 lb. (0.8 kg)


    NOTE: Technical specification weight is the unit weight. It is not the packaged shipping weight. For shipping weight, please contact Black Box customer service at 877-877-2269.
