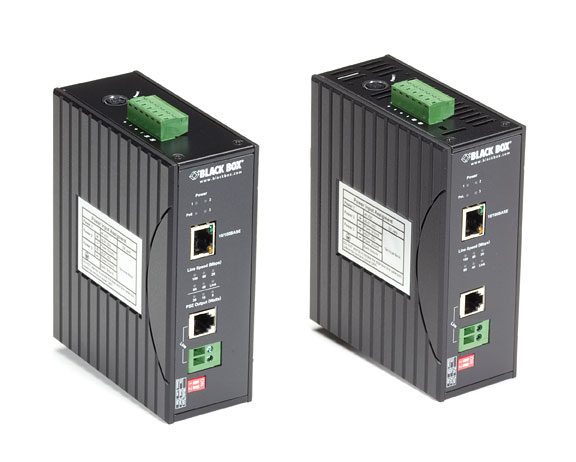

click photo to enlarge

LBPS310A-KIT

Photo may show similar product

Other views

Hardened Power-over-Line (PoL) PoE Ethernet Extender Kit

Power PoE PD devices such as IP cameras and wireless access points—even in harsh conditions.

LBPS310A-KIT


Five year Warranty

Product Highlights

  • Provides high-powered 802.3at PoE over one pair of voice-grade UTP.
  • Extends Power over Ethernet up to 1.2 kilometers and Ethernet up to 2.2 kilometers.


    • Description

    Hardened Power-over-Line (PoL) PoE Ethernet Extender Kit


    Quick Facts

  • Provides high-powered 802.3at PoE over one pair of voice-grade UTP.
  • Extends Power over Ethernet up to 1.2 kilometers and Ethernet up to 2.2 kilometers.

    • Further Details

  • Kit includes both a local and a remote unit.
  • Transparent to data.
  • Hardened for industrial use with a tough aluminum case and an extended temperature range of -40 to +167° F (-40 to 75° C).
  • Autosensing, autonegotiating 10-/100-Mbps Ethernet port with Auto MDI/MDI-X.
  • Six speeds with speed indicator LEDs.
  • Powered through a 48-VDC terminal block or a 48-VDC jack. Order power supplies separately (SDR-120-48).
  • Supports DIN rail, panel, and rackmount installations.


    • The Hardened PoL PoE Ethernet Extender Kit connects and powers PoE devices such as security cameras over one pair of ordinary voice-grade UTP cable. It enables you to save on installation costs by enabling you to use wire you may already have installed.

    Speed, distance, and power!
    This extender delivers the goods with up to 100-Mbps performance at up to 300 meters. Plus, even at a distance of almost three football fields, it powers 802.3at PoE devices with a full 30 watts, so high-powered devices like PTZ cameras can get the power they require. At longer distances, speed and power go down, of course, but you can still get full power by using a separate power supply with the remote unit (see the chart below).

    Built tough for tough environments
  • The extender is hardened for industrial use with a tough aluminum case that keeps out dust and debris. It features an extended temperature range of -40 to +167° F (-40 to 75° C). The extender mounts on standard DIN rails and accepts standard 48-VDC power via terminal block. For redundant power, the terminal block has a second power input or you can use the 48-VDC power jack.

    NOTE: The LBPS310A-KIT does not come with a power supply. Order the DIN Rail Power Supply, 120 Watts, 48 VDC (SDR-120-48) separately.
    Distance/Speed/Power with Power over Link (PoL) Enabled:
    DistanceData RatePoE Output
    984 ft. (300 m)100 Mbps30 watts
    1312 ft. (400 m)90 Mbps15.4 watts
    1968 ft. (600 m)60 Mbps14 watts
    2624 ft. (800 m)45 Mbps9.5 watts
    3280 ft. (1 km)35 Mbps7 watts
    3937 ft. (1.2 km)20 Mbps5 watts


    Distance/Speed/Power with Power over Link (PoL) Disabled:
     (power supply on remote unit)
    DistanceSpeedPoE Output
    0.8 mi. (1.4 km)15 Mbps30 watts
    1 mi. (1.6 km)10 Mbps30 watts
    1.1 mi. (1.8 km)3 Mbps30 watts
    Up to 1.4 mi. (Up to 2.2 km)1 Mbps30 watts


    • Technical Specifications for Hardened Power-over-Line (PoL) PoE Ethernet Extender Kit:


    Environmental — Operating temperature: -40 to +167° F (-40 to 75° C);
    Storage temperature: -40 to +185° F (-40 to 85° C);
    Humidity: 5–95%, noncondensing
    Approvals — CE
    Connectors — Network: (1) 10-/100-Mbps RJ-45;
    Line: (1) RJ-11, (1) 2-pin terminal block;
    Power: (1) DC terminal block with support for redundant power; (1) DC power jack
    Indicators — Local unit: (3) Power, (1) PoL, (1) LAN, (5) Line Speed, (1) Link;
    Remote unit: (3) Power, (1) PoL, (1) LAN, (5) Line Speed, (1) Link, (3) PSE output
    Power — Input: 46–57-VDC terminal block or 48-VDC jack,
    power supply sold separately (SDR-120-48);
    Output: Click on “Details” tab for Distance/Speed/Power chart
    Dimensions — Each unit: 5.3"H x 2"W x 4.3"D (13.5 x 5 x 11 cm)

    NOTE: The LBPS310A-KIT does not come with a power supply. Order the DIN Rail Power Supply, 120 Watts, 48 VDC (SDR-120-48) separately.

    NOTE: Technical specification weight is the unit weight. It is not the packaged shipping weight. For shipping weight, please contact Black Box customer service at 877-877-2269.


    Resources for Hardened Power-over-Line (PoL) PoE Ethernet Extender Kit:

    Manuals

    • Hardened PoL PoE Ethernet Extender User Manual
      User Manual for the LBPS310A-KIT, LBPS311A, & LBPS312A (Version 1)
      httpftp

    Black Box Explains


    Connect your Hardened Power-over-Line (PoL) PoE Ethernet Extender Kit with:

    Accessory: SDR-120-48

    DIN Rail Power Supply, 120 Watts, 48 VDC

    DIN Rail Power Supply, 120 Watts, 48 VDC
