Industrial > Networking

click photo to enlarge

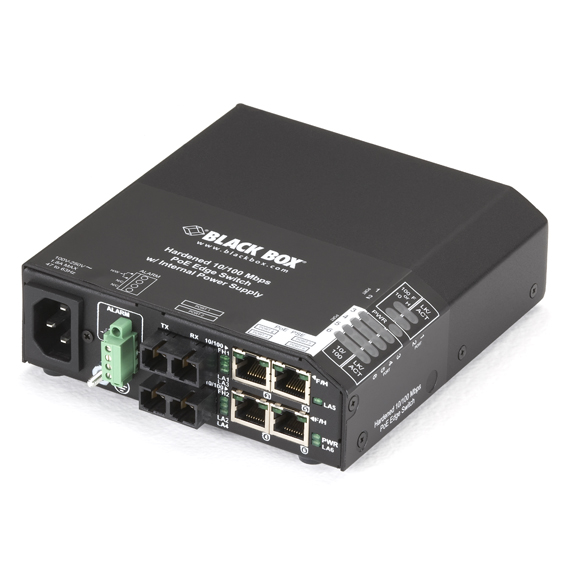

LPH240A-H-2SC

Photo may show similar product

Other views

Hardened PoE PSE Switch, (4) 10/100 RJ-45, (2) Multimode SC, AC Powered

Powers remote PoE devices in industrial environments.

LPH240A-H-2SC

Extended Double Diamond™ Warranty Available
(Three years for two)

Product Highlights

  • Features four 10-/100-Mbps RJ-45 ports plus two multimode fiber ports.
  • All four RJ-45 ports support 802.3af PoE.
  • Extends the network up to 2 kilometers (1.2 mi.) over multimode fiber.
  • Extended temperature range of -13 to +140° F (-25 to +60° C).
  • Universal 100–250-VAC power supply.
  • Includes Link-Loss-Learn (LLL) for self-healing LAN structures.

  • Description

    Hardened PoE PSE Switch, (4) 10/100 RJ-45, (2) Multimode SC, AC Powered


    Quick Facts

  • Features four 10-/100-Mbps RJ-45 ports plus two multimode fiber ports.
  • All four RJ-45 ports support 802.3af PoE.
  • Extends the network up to 2 kilometers (1.2 mi.) over multimode fiber.
  • Extended temperature range of -13 to +140° F (-25 to +60° C).
  • Universal 100–250-VAC power supply.
  • Includes Link-Loss-Learn (LLL) for self-healing LAN structures.

  • Further Details

    Hardened PoE PSE Switches from Black Box power remote PoE devices such as security cameras and wireless access points—even in industrial or factory environments where temperature is an issue. Rugged metal cases serve as a heat sink to dissipate heat, giving these hardened switches a temperature range of -13 to +140° F (-25 to +60° C). Plus, the cases are sealed to resist contaminants such as dust, dirt, moisture, smoke, and insects.

    These capable industrial switches are available with six 10-/100-Mbps copper ports, with five 10-/100-Mbps copper ports plus a 100-Mbps fiber uplink port, or with four 10-/100-Mbps copper ports plus two 100-Mbps fiber ports. Fiber ports are available with a variety of connectors, in single- or multimode, and with ranges of up to 20 kilometers. The switches provide 802.3af PoE power for up to four PoE PD devices on four RJ-45 ports.

    The switch featured here has four autosensing 10-/100-Mbps copper Ethernet ports—all of which are PoE PSE ports—and two multimode fiber ports that support distances of up to 2 kilometers (1.2 mi.). It’s powered by an integral 100–250-VAC AC power supply. The switch comes with clips for panel mounting. For DIN rail mounting, order the DIN Rail Mounting Bracket (DIN-RAIL MC2).


    Technical Specifications for Hardened PoE PSE Switch, (4) 10/100 RJ-45, (2) Multimode SC, AC Powered:

    Environmental — Operating Temperature: -13 to +140° F (-25 to +60° C);
    Storage Temperature: -40 to +185° F (-40 to +85° C);
    Humidity: 5–95% noncondensing
    CE Approval —Yes
    Connectors —(4) RJ-45, (2) pair SC
    Power — 100–250-VAC, 47–63 Hz internal power supply
    Size — 6"H x 5.5"W x 1.7"D (15.2 x 14 x 4.3 cm)
    Weight — 1.5 lb. (0.7 kg)


    NOTE: Technical specification weight is the unit weight. It is not the packaged shipping weight. For shipping weight, please contact Black Box customer service at 877-877-2269.
