Networking > Switches

click photo to enlarge

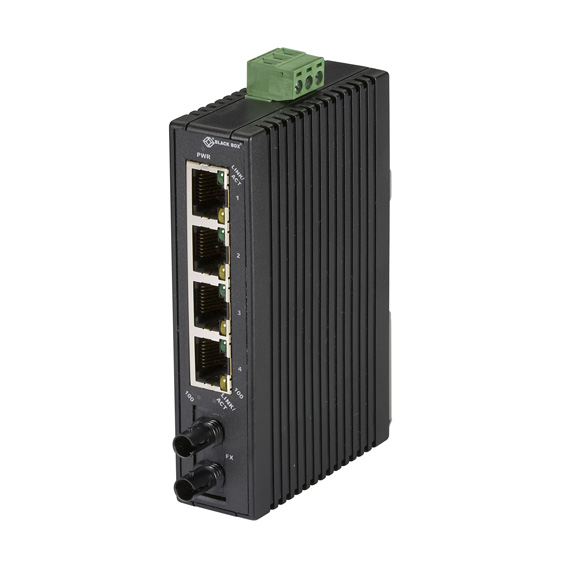

LBH120A-H-ST

Photo may show similar product

Other views

Hardened Mini Industrial Switch, 5-Port (4-to-1); (4) 10-/100-Mbps Copper + (1) 100-Mbps Fiber, Multimode, ST

Tough DIN rail-mountable switch enables you to extend your network up to 20 kilometers over fiber.

LBH120A-H-ST

Extended Double Diamond™ Warranty Available
(3 Additional Year)

Product Highlights

  • Inexpensive, unmanaged switch extends your network over fiber and adds four ports at the edge of your network.
  • Extended temperature range of -14 to +140° F.

  • Description

    Hardened Mini Industrial Switch, 5-Port (4-to-1); (4) 10-/100-Mbps Copper + (1) 100-Mbps Fiber, Multimode, ST


    Quick Facts

  • Inexpensive, unmanaged switch extends your network over fiber and adds four ports at the edge of your network.
  • Extended temperature range of -14 to +140° F.

  • Further Details

  • An economical way to add four 10-/100-Mbps ports to your network.
  • Features an industrial-strength plastic case and complies with IEC 61000-Part 6-2 generic standards for electromagnetic compatibility (EMC) in industrial environments.
  • Offers full wire-speed forwarding rates across the network.
  • Supports 2048 MAC addresses and features a 384 KB buffer memory.
  • Can be installed easily on a DIN rail. Mounting kit is included.
  • Order power supplies separately, see Related Products.


  • Technical Specifications for Hardened Mini Industrial Switch, 5-Port (4-to-1); (4) 10-/100-Mbps Copper + (1) 100-Mbps Fiber, Multimode, ST:

    Enclosure Plastic case, IP30 rated
    Filtering/Forwarding Rate Ethernet: 14,880 pps;
    Fast Ethernet: 148,800 pps
    MAC Addresses 2K
    Operating Temperature -14 to +140° F (-25 to +60° C)
    Packet Buffer 384 KB
    Switching Processing Type Store and forward with half-duplex backpressure and IEEE 802.3x full-duplex flow control
    CE Approval Yes
    Connectors Ethernet/Fast Ethernet: (4) RJ-45;
    Fiber optic: (1) pair of ST®
    Power Input: 12-48 VDC (terminal block);
    Output: Per optional DC or AC power supply ordered
    Dimensions 4.3"H x 1"W x 2.8"D (10.9 x 2.5 x 7.1 cm)
    Weight 0.5 lb. (0.2 kg)


    NOTE: Technical specification weight is the unit weight. It is not the packaged shipping weight. For shipping weight, please contact Black Box customer service at 877-877-2269.
