Networking > Industrial

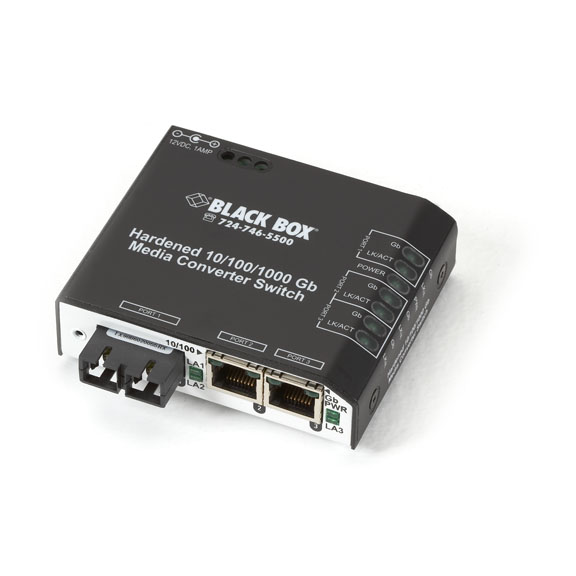

click photo to enlarge

LBH2001A-H-LX

Photo may show similar product

Other views

Hardened Media Converter Switch, 10-/100-/1000-Copper to 1000-Mbps Fiber, Single-Mode LC, 110-VAC

Switch at Gigabit speeds between copper and single-mode fiber in industrial areas at distances up to 10 kilometers.

LBH2001A-H-LX

Extended Double Diamond™ Warranty Available
(Three years for two)

Product Highlights

  • A combination hardened edge switch and media converter.
  • Enables you to convert copper to optical fiber.
  • Includes two 10-/100-/1000-Mbps copper switch ports and one 1000-Mbps single-mode fiber LC port.
  • Converts 1000BASE-T to 1000BASE-SX single-mode fiber.
  • Withstands temperatures of -13 to +140º F (-25 to +60º C).


    • Description

    Hardened Media Converter Switch, 10-/100-/1000-Copper to 1000-Mbps Fiber, Single-Mode LC, 110-VAC


    Quick Facts

  • A combination hardened edge switch and media converter.
  • Enables you to convert copper to optical fiber.
  • Includes two 10-/100-/1000-Mbps copper switch ports and one 1000-Mbps single-mode fiber LC port.
  • Converts 1000BASE-T to 1000BASE-SX single-mode fiber.
  • Withstands temperatures of -13 to +140º F (-25 to +60º C).

    • Further Details

  • Switch traffic between a Gigabit-speed fiber single-mode backbone and two copper Gigabit segments.
  • Or use the second copper port to provide access to other Ethernet devices.
  • Supports extended distances up to 10 kilometers (6.2 mi.) on single-mode fiber.
  • Features high-grade components and special thermal design for industrial use.
  • Robust steel case protects circuitry and communications from demands of factory applications.
  • No internal airflow required for cooling. Convection case works as a heat sink.
  • Resists dirt, debris, moisture, smoke, and insects (IEC529 IP40 rated).
  • Designed for NEBS compliance to withstand shock, vibration, and high altitudes.
  • Copper ports autonegotiate to network and device speeds.
  • Autocross (MDI-X) on copper side. Cascade easily without the need for crossover cable.
  • Provides full 10-, 100-, and 1000-Mbps swiching for high-performance LANs.
  • Supports VLANs. Retrieves and transmits 802.1q tagged data packets unchanged.
  • Use store-and-forward type switching to eliminate bad packet propagation and maximize bandwidth.
  • Dynamically allocates buffer space, minimizing dropping of frames on congested ports.
  • Collision-based flow control (half-duplex mode only) stops frames from entering when buffer queue space is low.
  • Internal addresses are self-learning. Change port connections or domains without affecting operations.
  • Operates transparent to software.
  • Plug-and-play installation.
  • Includes metal panel mounting clips.
  • RoHS compliant.

    • This compact networking device combines the functions of a copper-to-fiber media converter with that of a Gigabit-speed edge switch.

    Featuring the two 10-/100-/1000-Mbps copper switch ports and one 1000-Mbps single-mode fiber LC port, the Hardened Media Converter Switch reliably connects segments in harsh factory floor environments, particularly at the network edge, as well as connections in wiring closet and office areas.

    It’s just what you need to expand your Ethernet network in a convenient, compact, and economical way—plus transfer data longer distances, far beyond what’s possible with ordinary copper Ethernet cabling links.

    And because it transfers Ethernet packets at Gigabit speeds over fiber, you can ensure secure and interference-free extensions for your data-sensitive, bandwidth-intensive applications.

    What’s more, as a hardened networking solution, it features a sealed metal case that protects internal circuitry from dirt, dust, moisture, and other harmful contaminants. The Hardened Mini Gigabit Switch also features an efficient thermal design, so no air inflow is required for cooling.


    Technical Specifications for Hardened Media Converter Switch, 10-/100-/1000-Copper to 1000-Mbps Fiber, Single-Mode LC, 110-VAC :

    Environmental — Operating temperature: -13 to +140º F (-25 to +60º C);
    Humidity: 5 to 95% noncondensing
    Fiber Optic Cable Required — 1310-nm single-mode
    Standards — IEEE 802.3, IEEE 802.3u/ab, IEEE 802.1p, 1000BASE-TX, 1000BASE-LX, IEEE 802.1q VLANs
    Switching Performance — Store-and-forward, nonblocking switching; 64 KB packet buffer memory with 1K address buffer storage and address buffer age-out time of 300 seconds
    VLAN Support — Receives, transmits data packets with 4 bytes tagged VLAN field (IEEE 802.1q) unchanged
    CE Approval — Yes
    Connectors — Copper side: (2) RJ-45 (10BASE-T/100BASE-TX/1000BASE-T);
    Fiber side: (1) SC single-mode (1000BASE-LX10)
    Indicators — (2) sets of LEDs (top-front and on end with ports): (1) Power, (2) GB (one for each RJ-45 port) indicating speed, (3) LK/ACT (for each port) indicating link/activity
    Power — Hardened 100–240-VAC, 47–63-Hz adapter and 12-VDC terminal block;
    Consumption: 4 W (typical), 5 W (maximum)
    Size — 3.5"H x 3"W x 1"D (8.9 x 7.6 x 2.5 cm)
    Weight — 0.3 lb. (0.1 kg)


    NOTE: Technical specification weight is the unit weight. It is not the packaged shipping weight. For shipping weight, please contact Black Box customer service at 877-877-2269.


    Resources for Hardened Media Converter Switch, 10-/100-/1000-Copper to 1000-Mbps Fiber, Single-Mode LC, 110-VAC :


    Connect your Hardened Media Converter Switch, 10-/100-/1000-Copper to 1000-Mbps Fiber, Single-Mode LC, 110-VAC with:

    Accessory: EVNSL0501A-1000

    CAT5e Shielded 350-MHz Solid Bulk Cable (STP), 24 AWG, 4-Pair, PVC, Blue, 1000-ft. (304.8-m)

    CAT5e Shielded 350-MHz Solid Bulk Cable (STP), 24 AWG, 4-Pair, PVC, Blue, 1000-ft. (304.8-m)

    » more info

    Accessory: DIN-RAIL MC2

    DIN Rail Mounting Bracket for (LBHxxxA, and LP004A) Switches

    DIN Rail Mounting Bracket for (LBHxxxA, and LP004A) Switches

    » more info

    Accessory: LE1505-RACK

    Rackmount Tray for LBHxxxA, LE15xxA, and LP004A Series with No Power Supply

    Rackmount Tray for LBHxxxA, LE15xxA, and LP004A Series with No Power Supply

    » more info

    Accessory: LH1505P-RACK

    Rackmount Tray for LBHxxxA, LE15xxA, and LP004A Series, with (1) 9-V Power Supply

    Rackmount Tray with (1) 9-V Power Supply

    » more info
