Networking > Switches


click photo to enlarge

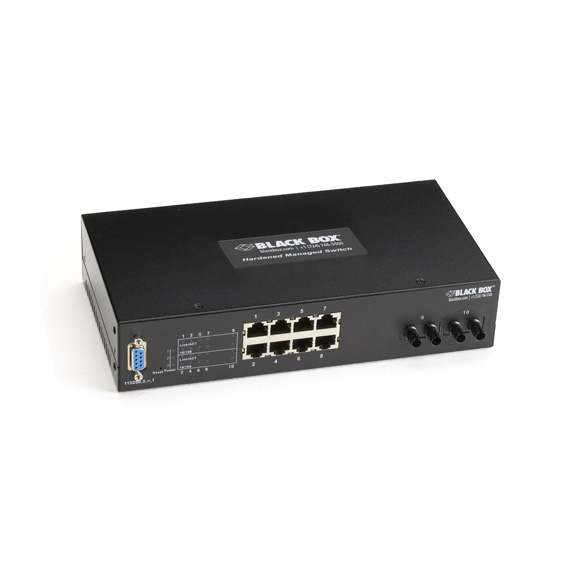

LEH808-2MMST

Photo may show similar product

Other views

Hardened Managed Ethernet Switch, 8-Port 10/100BASE-TX + 2-Port 100BASE-FX ST Multimode (2 km)

This tough, multiport switch is a cost-effective solution for moving data quickly in harsh environments.

LEH808-2MMST

Extended Double Diamond™ Warranty Available
(3 Additional Year)

Product Highlights

  • Operates in very hot and very cold conditions—even outdoors in sheltered locations.
  • Great for traffic signal applications.
  • Support for network redundancy; offers a recovery time of <15 ms.


  • Description

    Hardened Managed Ethernet Switch, 8-Port 10/100BASE-TX + 2-Port 100BASE-FX ST® Multimode (2 km)


    Quick Facts

  • Operates in very hot and very cold conditions—even outdoors in sheltered locations.
  • Great for traffic signal applications.
  • Support for network redundancy; offers a recovery time of <15 ms.

  • Further Details

  • IP multicast filtering through IGMP snooping V1, V2, and V3.
  • Supports port-based VLAN and IEEE 802.1Q VLAN tagging.
  • IEEE 802.1p Quality of Service (QoS) with four priority queues.
  • MAC-based trunking with automatic link failover.
  • Manageable through a RS-232 console; Telnet; SNMP V1, V2c, & V3; RMON; a Web browser; and TFTP.
  • Supports command line interface on an RS-232 console.
  • Supports IEEE 802.1x security.
  • Complies with the IEC 61000-6-2 EMC generic standard immunity for industrial environments.
  • Bandwidth rate control.
  • Per-port programmable MAC address locking.
  • Up to 24 static secure MAC addresses per port.
  • Port mirroring.
  • 8K MAC addresses.
  • 2 Mb buffer memory.
  • Operates 10/100-Mbps full-/half-duplex.
  • Autonegotiation, auto-MDI/MDIX.
  • Full wire-speed forwarding rate.
  • Redundant power inputs include a terminal block and DC jack.
  • Supports DIN-rail, panel, and rackmount installation.
  • Complies with NEMA TS1 & TS2 environmental requirements for traffic control equipment.
  • Supports Network Time Protocol (NTP).
  • IEEE 802.1w, IEEE 802.1S, and IEEE 802.1D spanning tree.

  • Designed for rugged environments, this Hardened Managed Ethernet Switch comes with (8) 10-/100-Mbps RJ-45 ports and (2) 100BASE-FX ST Multimode ports in an enclosure that offers several mounting options. Fully manageable via SNMP, a Web browser, Telnet, or a console port, the LEH808-2MMST is designed to integrate 10-/100-Mbps networks into 100BASE-FX backbones.

    The LEH808-2MMST supports advanced features such as 802.1Q VLAN, MAC-based trunking, IP-multicast IGMP snooping, rapid spanning tree for redundancy, QoS for priority queuing, and port mirroring. Choose among SNMP/RMON, a Web browser, or Telnet options for remote monitoring and configuration. It also supports rate control, which enables you to set the maximum bandwidth on each port individually.


    Technical Specifications for Hardened Managed Ethernet Switch, 8-Port 10/100BASE-TX + 2-Port 100BASE-FX ST Multimode (2 km):

    Forward and Filtering Rate 14,880 pps for 10 Mbps; 148,810 pps for 100 Mbps
    MAC Addresses 8K
    Operating Temperature -40° to +167° F (-40° to +75° C)
    Packet Buffer Memory 2 Mb
    Processing Type Store-and-forward, half-duplex back-pressure and IEEE 802.3x full-duplex flow control
    Standards IEEE 802.3 10BASE-T, IEEE 802.3u 100BASE-TX/100BASE-FX, IEEE 802.3x, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1w, IEEE 802.1x
    CE Approval Yes
    Connectors 10/100BASE-TX: (8) RJ-45;
    100BASE-FX: (2) ST);
    Console: (1) DB9 F (RS-232)
    Indicators Power status: Power 1, Power 2, Power 3
    Per port: 10/100TX, 100FX: Link/Activity, Speed; 10/100: Link/Activity, Speed
    Power Input voltage: 12-32 VDC (terminal block); 12 VDC (DC jack);
    Consumption: 15 W (max.); 1.25 A at 12 VDC, 0.625 A at 24 VDC
    Size 2"H x 9.25"W x 5"D (5.1 x 23.5 x 12.7 cm)
    Weight 3.3 lb. (1.5 kg)


    NOTE: Technical specification weight is the unit weight. It is not the packaged shipping weight. For shipping weight, please contact Black Box customer service at 877-877-2269.
