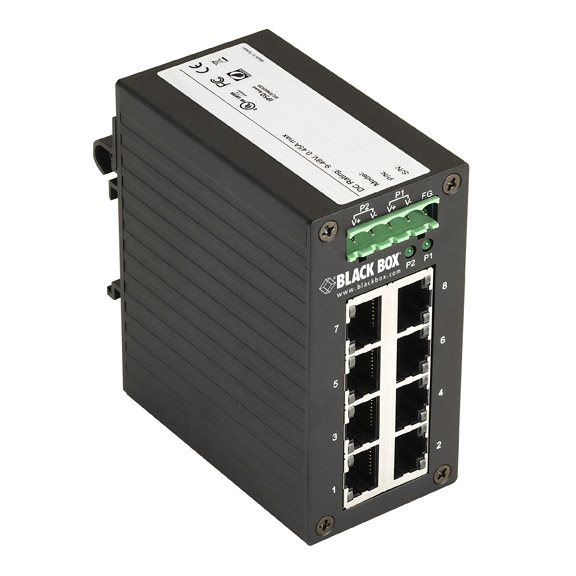

Hardened Gigabit Edge Switch, 8-Port

Solid Gigabit switching for industrial environments.

LGH008A

Extended Double Diamond™ Warranty Available
(3 Additional Year)

Product Highlights

  • Rated for operating temperatures of +14 to +158° F (-10 to +70° C).
  • 10-/100-/1000-Mbps ports are autosensing for speed and duplex.
  • Dual DC power inputs for redundant power.
  • DIN rail mount.
  • IP50 rated steel housing.
  • Plug-and-Play convenience.

  • Description

    Hardened Gigabit Edge Switch, 8-Port


    Quick Facts

  • Rated for operating temperatures of +14 to +158° F (-10 to +70° C).
  • 10-/100-/1000-Mbps ports are autosensing for speed and duplex.
  • Dual DC power inputs for redundant power.
  • DIN rail mount.
  • IP50 rated steel housing.
  • Plug-and-Play convenience.

  • Further Details


    The Hardened Gigabit Edge Switch brings eight Gigabit Ethernet ports to harsh industrial environments with temperatures ranging from 14 to 158° F (-10 to +70° C). Its rugged steel enclosure mounts on standard DIN rails. Dual DC power inputs enable redundant power provisioning. Ethernet ports are autosensing 10/100/1000 Mbps with Auto MDI/MDI-X on all ports. This industrial switch does not include a power supply. For a compatible non-hardened power supply, order the Power Adapter, 100–240-VAC to 12-VDC, Flying Leads (PS012); for a hardened power supply, order the External 100–240-VAC Power Adapter, 12-VDC Stripped Ends Output, U.S. Cord (PS003A).
    This product works with:
  • Power Adapter, 100–240-VAC to 12-VDC, Flying Leads (PS012)
  • External 100–240-VAC Power Adapter, 12-VDC Stripped Ends Output, U.S. Cord (PS003A)
  • Questions? Contact our FREE Tech Support.


    Technical Specifications for Hardened Gigabit Edge Switch, 8-Port:

    Environmental Operating temperature: +14 to +158° F (-10 to +70° C);
    Storage temperature: -40 to 185° F (-40 to 85° C);
    Humidity: 5-95% noncondensing
    CE Approval Yes
    RoHS Yes
    Connectors (8) RJ-45
    Indicators LEDs: Power, LAN (10/100/1000)
    Power 9-48 VDC via (2) 5-pin terminal blocks
    Size 3.5"H x 1.8"W x 3.1"D (9 x 4.5 x 7.8 cm)
    Weight 0.6 lb. (0.3 kg)

    This product works with:
  • Power Adapter, 100–240-VAC to 12-VDC, Flying Leads (PS012)
  • External 100–240-VAC Power Adapter, 12-VDC Stripped Ends Output, U.S. Cord (PS003A)
  • Questions? Contact our FREE Tech Support.

    NOTE: Technical specification weight is the unit weight. It is not the packaged shipping weight. For shipping weight, please contact Black Box customer service at 877-877-2269.
