Networking > Switches

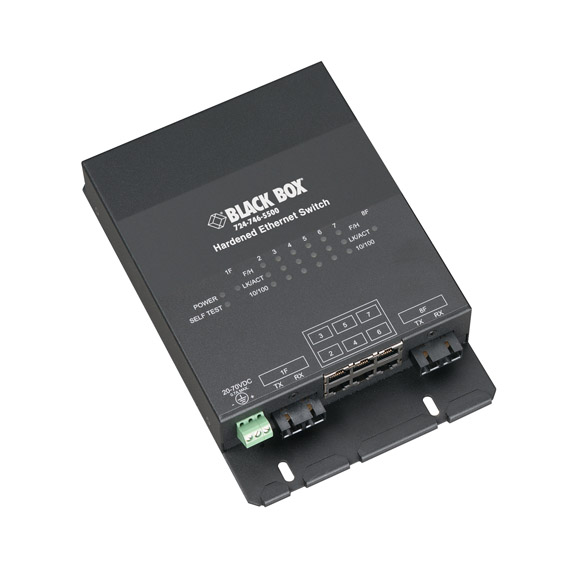

click photo to enlarge

LB9904A

Photo may show similar product

Other views

Hardened Ethernet Switch, DC-Powered, (6) 10-/100-Mbps RJ-45 Ports plus (2) 100-Mbps Multimode SC Ports

Send data out into the cold—or heat—over copper or fiber, with this tough switch.

LB9904A

Extended Double Diamond™ Warranty Available
(Three years for two)

Product Highlights

  • Protect your Ethernet devices from extremes of heat, light, and cold—even dirt.
  • Operates in conditions of uncontrolled heat or cold—even outdoors.
  • Rugged, 18-gauge steel case seals out insects, dirt, smoke, and other contaminants.
  • The steel case also operates as a heat sink, drawing heat away from internal components.

  • Description

    Hardened Ethernet Switch, DC-Powered, (6) 10-/100-Mbps RJ-45 Ports plus (2) 100-Mbps Multimode SC Ports


    Quick Facts

  • Protect your Ethernet devices from extremes of heat, light, and cold—even dirt.
  • Operates in conditions of uncontrolled heat or cold—even outdoors.
  • Rugged, 18-gauge steel case seals out insects, dirt, smoke, and other contaminants.
  • The steel case also operates as a heat sink, drawing heat away from internal components.

  • Further Details

  • Plug-and-play, software transparent.
  • Daisychain the switch for a fiber optic Ethernet network hundreds of kilometers long!
  • Has two fiber ports.
  • Six 10-/100-Mbps RJ-45 ports provide half- or full-duplex operation.
  • Can be installed in NEMA 4 metal enclosures for all-weather outdoor use.
  • Also available with one multimode SC port and one single-mode SC port.


  • Networking isn’t always done in climate-controlled offices. Sometimes your Ethernet network is an outright inhospitable environment where the temperature extremes wreak havoc with your office devices’ circuitry. That’s why you need the industrial-strength Black Box® Hardened Ethernet Switch.

    The switch is designed to operate in applications where the temperature cannot be controlled, from the withering heat of the desert sun to the numbing cold of arctic conditions.

    The case is made of steel.
    The rugged, 18-gauge steel case is engineered to function as a heat sink, which draws the heat away from the internal electronics and dissipates it. To minimize the heat dissipation problem further, each switch uses only 15 watts of power.

    Built tough, the Hardened Ethernet Switch is virtually impenetrable. Problems such as convection air, insects, dirt, and dust can’t enter it. And if the switch happens to be adjacent to a building fire or a plenum fire, the case will not allow smoke inside to damage the electronics. For complete invulnerability to the elements, the switch can be installed in watertight NEMA 4 metal enclosures for all-weather outdoor operation.

    Applications for the Hardened Ethernet Switch include roadside traffic data collection and control stations, industrial plant locations, plenums and ceilings in commercial buildings, and military tents and field sites.

    Mix two parts Ethernet with two parts media…
    The Hardened Ethernet Switch is available with autoranging power supplies.

    The switch features six autonegotiating RJ-45 ports for 10-/100-Mbps applications. These ports operate in either half- or full-duplex mode.

    In addition to the RJ-45 port, the Hardened Ethernet Switch is equipped with two ports for full-duplex, 100-Mbps fiber optic connectivity.

    This model has two multimode SC ports. Daisychain the switch in “string” applications and create an Ethernet network hundreds of kilometers long! Configurations with more than 10 units in a string have been tested with normal data traffic.


    Technical Specifications for Hardened Ethernet Switch, DC-Powered, (6) 10-/100-Mbps RJ-45 Ports plus (2) 100-Mbps Multimode SC Ports:

    Compliance — 100BASE-TX, 100BASE-FX: IEEE 802.3u;
    10BASE-T: IEEE 802.3
    Construction — 18-gauge steel case
    Cooling Method — Convection, with case operating as a heat sink
    Mean Time Between Failures — > 10 years
    Operating Environment — Temperature: -40 to 160° F (-40 to 70° C); cold starts as low as -4° F (-20° C);
    Humidity: 10 to 95% noncondensing
    Speed — RJ-45 ports: 10 or 100 Mbps, autonegotiating, half- or full-duplex;
    Fiber ports: 100 Mbps, full-duplex
    CE Approval — Yes
    Indicators — (1) LED for power; (3) LEDs per port: speed, link activity, full- or half-duplex;
    Power — 18–70 VDC, autoranging
    Size — 9"H x 5.8"W x 1.7"D (22.9 x 14.7 x 4.3 cm)


    NOTE: Technical specification weight is the unit weight. It is not the packaged shipping weight. For shipping weight, please contact Black Box customer service at 877-877-2269.


    Resources for Hardened Ethernet Switch, DC-Powered, (6) 10-/100-Mbps RJ-45 Ports plus (2) 100-Mbps Multimode SC Ports:

    Product Data Sheets


    Connect your Hardened Ethernet Switch, DC-Powered, (6) 10-/100-Mbps RJ-45 Ports plus (2) 100-Mbps Multimode SC Ports with:
