Networking > Switches

click photo to enlarge

LB9902A

Photo may show similar product

Other views

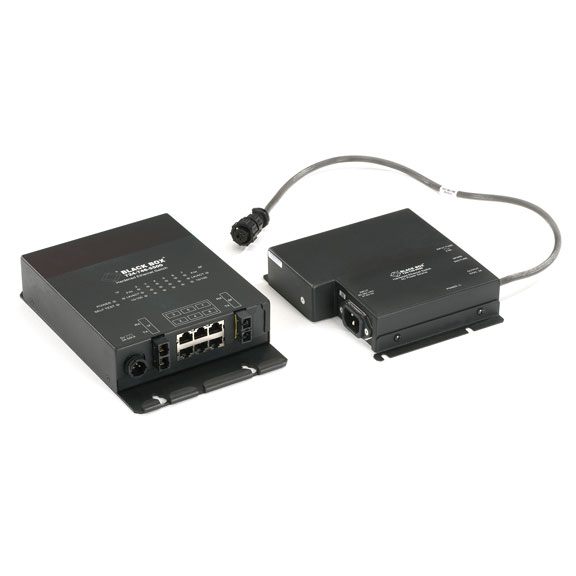

Hardened Ethernet Switch, AC Power, (6) 10-/100-Mbps RJ-45 Ports plus (1) 100-Mbps Multimode SC Port and (1) 100-Mbps Single-Mode SC (20-km) Port

When the going gets tough, these tough switches get your data going—over copper or fiber and in hot or cold climates.

LB9902A

Extended Double Diamond™ Warranty Available
(Three years for two)

Product Highlights

  • Operates in conditions of uncontrolled heat or cold—even outdoors.
  • Rugged, 18-gauge steel case seals out insects, dirt, smoke, and other contaminants.
  • Steel case also operates as a heat sink, drawing heat away from internal components.


    • Description

    Hardened Ethernet Switch, AC Power, (6) 10-/100-Mbps RJ-45 Ports plus (1) 100-Mbps Multimode SC Port and (1) 100-Mbps Single-Mode SC (20-km) Port


    Quick Facts

  • Operates in conditions of uncontrolled heat or cold—even outdoors.
  • Rugged, 18-gauge steel case seals out insects, dirt, smoke, and other contaminants.
  • Steel case also operates as a heat sink, drawing heat away from internal components.

    • Further Details

  • Plug-and-play, software transparent.
  • Two fiber ports—the single-mode SC port transmits up to 20 kilometers (12.4 mi.) away!
  • Daisychain the switches for a fiber optic Ethernet network hundreds of kilometers long!
  • Six 10-/100-Mbps RJ-45 ports provide half- or full-duplex operation.
  • Can be installed in NEMA 4 metal enclosures for all-weather outdoor use.


    • Networking isn’t always done in climate-controlled offices. Sometimes your Ethernet network is an outright inhospitable environment where the temperature extremes wreak havoc with your office devices’ circuitry. That’s why you need this industrial-strength Black Box® Hardened Ethernet Switch, designed to operate in applications where the temperature cannot be controlled, from the withering heat of the desert sun to the numbing cold of arctic conditions.

    You can use this Hardened Ethernet Switch to collect roadside traffic data and at control stations, industrial plant locations, in plenums and ceilings in commercial buildings, and military tents and field sites.

    Case made of steel.
    The rugged, 18-gauge steel case is engineered to function as a heat sink, to draw the heat away from the internal electronics and dissipate it. To minimize the heat dissipation problem further, the switch uses only 15 watts of power.

    Built tough, this Hardened Ethernet Switch is virtually impenetrable. Problems such as convection air, insects, dirt, and dust can’t enter. And if the switch happens to be adjacent to a building fire or a plenum fire, the case will not allow smoke inside to damage the electronics. For complete invulnerability to the elements, the switch can be installed in a watertight NEMA 4 metal enclosure for all-weather outdoor operation.

    Mix two parts Ethernet with two parts media...
    Each switch features six autonegotiating RJ-45 ports for 10-/100-Mbps applications. These ports operate in either half- or full-duplex mode. In addition this switch is equipped with two ports for full-duplex, 100-Mbps fiber optic connectivity.

    This switch comes with one multimode SC port plus one single-mode SC port. For two multimode SC ports, order model LB9901A. For two single-mode SC ports, order model LB9903A—the single-mode SC ports enable transmissions up to 20 kilometers (12.4 miles)! Daisychain any of these switches in “string” applications and create an Ethernet network hundreds of kilometers long! Configurations with more than 10 units in a string have been tested with normal data traffic.

    Plug-and-play hardware that adapts quickly.
    Installation is plug-and-play, and operation is transparent to software.

    As a hardware switch, this Hardened Ethernet Switch only forwards those packets from each domain that are needed on the other domains. Internal address tables are self-learning, so you can change port connections or 10/100 domains without affecting operations.

    What’s included:
  • Switch
  • Hardened external AC/DC power supply
  • AC power cord
  • User’s manual


    • Technical Specifications for Hardened Ethernet Switch, AC Power, (6) 10-/100-Mbps RJ-45 Ports plus (1) 100-Mbps Multimode SC Port and (1) 100-Mbps Single-Mode SC (20-km) Port:

    Compliance — 100BASE-TX, 100BASE-FX: IEEE 802.3u;
    10BASE-T: IEEE 802.3
    Construction — 18-gauge steel case
    Cooling Method — Convection, with case operating as a heat sink
    Fiber — Single-mode: 1300 nm with -15 dBi transceiver launch, -31 dBi receiver sensitivity, conservatively rated for 28km full-duplex but may reach up to 35km depending on the losses incurred on the installed fiber plant;
    Multimode: 1300nm with -20dBi TX Launch, -31dBi receiver sensitivity, conservatively rated for 2 km full duplex, and 440 meters half-duplex, but may reach up to 5km full-duplex depending on the losses incurred on the installed fiber plant
    Mean Time Between Failure — > 10 years
    Operating Environment — Temperature: -40 to 160° F (-40 to 70° C); cold starts as low as -4° F (-20° C);
    Humidity: 10 to 95% noncondensing
    Speed — RJ-45 ports: 10 or 100 Mbps, autonegotiating, half- or full-duplex;
    Fiber ports: 100 Mbps, full-duplex
    CE Approval — Yes
    Indicators — (1) LED for power; (3) LEDs per port: speed, link activity, full- or half-duplex;
    Power — 85–260 VAC, 47–63 Hz, autosensing
    Size — 9"H x 5.8"W x 1.7"D (22.9 x 14.7 x 4.3 cm)
    Weight — 3.5 lb. (1.6 kg)


    NOTE: Technical specification weight is the unit weight. It is not the packaged shipping weight. For shipping weight, please contact Black Box customer service at 877-877-2269.


    Resources for Hardened Ethernet Switch, AC Power, (6) 10-/100-Mbps RJ-45 Ports plus (1) 100-Mbps Multimode SC Port and (1) 100-Mbps Single-Mode SC (20-km) Port:


    Connect your Hardened Ethernet Switch, AC Power, (6) 10-/100-Mbps RJ-45 Ports plus (1) 100-Mbps Multimode SC Port and (1) 100-Mbps Single-Mode SC (20-km) Port with:

    Double Diamond Warranty

    Standard Manufacturer's Warranty


    A Three year warranty is included.

    Extended Two years for one Warranty Available


    Protect your purchase with an additional Two years for oneDouble Diamond™ warranty!
    Cost: $157.60

    Extended Three years for two Warranty Available


    Protect your purchase with an additional Three years for twoDouble Diamond™ warranty!
    Cost: $315.19
