Networking > Other Brands

click photo to enlarge

J8705A

Photo may show similar product

Other views

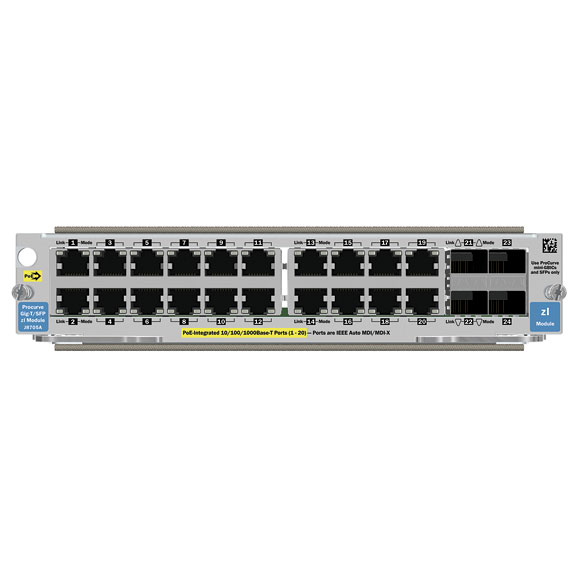

HP® ProCurve Switch 5400zl 20-Port 10/100/1000 + 4-Port Mini GBIC Module

Add both 10/100/1000 PoE and mini GBIC (SFP) ports to your ProCurve Switch.

J8705A


DEFAULT Warranty

Product Highlights

  • Has 20 RJ-45 ports that autonegotiate for 10-/100-/1000-Mbps speed plus four ports for installing any of the supported ProCurve mini GBICs (SFPs).
  • All UTP ports feature 802.3ab Auto MDI/MDI-X (HP Auto-MDIX) for matching straight-through or crossover cable pinning.

  • Description

    HP® ProCurve Switch 5400zl 20-Port 10/100/1000 + 4-Port Mini GBIC Module


    Quick Facts

  • Has 20 RJ-45 ports that autonegotiate for 10-/100-/1000-Mbps speed plus four ports for installing any of the supported ProCurve mini GBICs (SFPs).
  • All UTP ports feature 802.3ab Auto MDI/MDI-X (HP Auto-MDIX) for matching straight-through or crossover cable pinning.

  • Further Details

  • The RJ-45 ports also support 802.3af PoE connections.
  • On 10BASE-T or 100BASE-TX links, the UTP ports autonegotiate for half- or full-duplex (for 1000BASE-T, they operate at full-duplex only).
  • LEDs provide information for each port on the link status, network activity, connection bandwidth (speed), and duplex mode.
  • Indicators also inform you of specific network error packets on ports, as well as PoE state and configuration.
  • Hot-swappable. Add or replace a module without having to shut down the switch or without affecting the operation of other switch ports.
  • For other ProCurve connectivity products and help putting together your complete ProCurve switching system, contact our FREE Tech Support.



  • Technical Specifications for HP® ProCurve Switch 5400zl 20-Port 10/100/1000 + 4-Port Mini GBIC Module:

    Warranty — Lifetime
    NOTE: Be sure to only order supported ProCurve mini GBICs (SFPs), such as the ProCurve Gigabit-SX-LC Mini GBIC Transceiver (J4858C). Non ProCurve mini GBICs are not supported, and their use may result in your switch malfunctioning.

    NOTE: Technical specification weight is the unit weight. It is not the packaged shipping weight. For shipping weight, please contact Black Box customer service at 877-877-2269.


    Resources for HP® ProCurve Switch 5400zl 20-Port 10/100/1000 + 4-Port Mini GBIC Module:
