AC564A-R2

Photo may show similar product

Other views

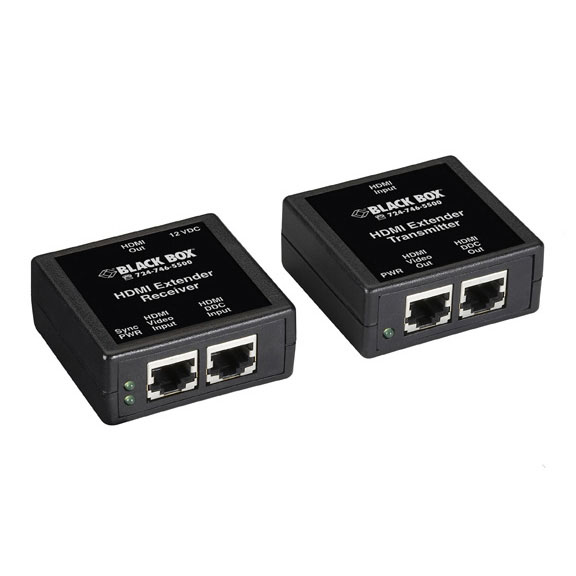

HDMI Extender Kit over Dual CATx

Extend 1080p video—even 12-bit Deep Color video—over two CATx cables.

AC564A-R2

Extended Double Diamond™ Warranty Available
(Three years for two)

Product Highlights

  • Connect a High-Definition Multimedia Interface (HDMI™) display up to 200 feet (60.9 m) from an HDMI source using two CAT5e or CAT6 cables.
  • Includes a transmitter, receiver, and power supply.
  • Extends 1080p 12-bit Deep Color video up to 90 feet (27 m) over CAT6 cables.

  • Description

    HDMI Extender Kit over Dual CATx


    Quick Facts

  • Connect a High-Definition Multimedia Interface (HDMI™) display up to 200 feet (60.9 m) from an HDMI source using two CAT5e or CAT6 cables.
  • Includes a transmitter, receiver, and power supply.
  • Extends 1080p 12-bit Deep Color video up to 90 feet (27 m) over CAT6 cables.

  • Further Details

  • Supports 1080i resolution over CAT5e or CAT6 cables at 200 feet (60.9 m).
  • Transmits 1080p 8-bit video up to 150 feet (45 m) over CAT5e cables and up to 200 feet (60 m) over CAT6 cables.
  • Extends HDTV much farther than HDMI cables—without any of the pixilation and the loss of video and audio quality that often occurs when using HDMI cable links longer than 15 feet (4.6 m).
  •  Enables you to use flexible, easy-to-pull twisted-pair cable and, in some cases, repurpose existing copper infrastructure for video/audio extensions.
  • Works with HDMI 1.3a compliant equipment and supports DVI video.
  • Boosts HDMI audio and video signals between a DVD, an HD-DVD, or a Blu-Ray player or a satellite set-top box and a remote HDMI display device.
  • Ideal for digital signage, commercial and residential AV systems, and home theater applications.
  • Also great for extending HDMI to classroom and conference room projectors, as well as for use in collaborative PC environments and high-resolution medical information systems.
  • Durable construction with ABS fire-retardant plastic enclosures.
  • Lightweight, low-profile design. Use in tight spaces behind displays, in kiosk enclosures, or in AV electronics cabinets.
  • Easy to mount with included Velcro® pads.
  • For 1080i and 1080p extensions as far as 492 feet or even 820 feet, see our AC560A–AC561A family of HDMI CATx Extenders (Transmitter and Receivers).


  • Technical Specifications for HDMI Extender Kit over Dual CATx:

    Bandwidth — 225 MHz
    Compliance — FCC Class A, UL® 94 V0 (flammability rating)
    Distance (Maximum) — 480i, 480p: CAT5e and CAT6: 300 ft. (91.4 m);
    720p, 1080i: CAT5e and CAT6: 200 ft. (60.9 m);
    1080p 8-bit: CAT5e: 150 ft. (45 m); CAT6: 200 ft. (60 m);
    1080p 12-bit Deep Color: CAT5e: Not Specified; CAT6: 90 ft. (27 m)
    Operating Environment — Temperature: 32 to 131º F (0 to 55º C);
    Humidity: Up to 95% noncondensing
    Standards — HDMI 1.2
    CE Approval — Yes
    RoHs—Yes
    Connectors — On both the transmitter and receiver: (1) HDMI F, (1) RJ-45S (video), (1) RJ-45S (DDC)
    Power — Input: 110–240 VAC, 50–60 Hz, autosensing, with interchangeable North America and Continental European blades;
    Output: 12 VDC;
    Consumption: 3 W
    Size — 1"H x 2.4"W x 2.25"D (2.5 x 6.1 x 5.7 cm)
    Weight — 0.7 lb. (0.3 kg)

    * NOTE: Does not support Denon AVR-1908 equipment.

    NOTE: Maximum distances listed are based on the maximum length of 6.6 feet (2 m) of HDMI cable used at each end. HDMI cables are not included.

    NOTE: When installed in an electrically noisy environment, STP cable must be used. In addition, cross-connection reduces the effective distance depending on the grade of twisted-pair cable you use.

    NOTE: Technical specification weight is the unit weight. It is not the packaged shipping weight. For shipping weight, please contact Black Box customer service at 877-877-2269.
