Digital Signage & Multimedia > Video Infrastructure

click photo to enlarge

AC3016A

Photo may show similar product

Other views

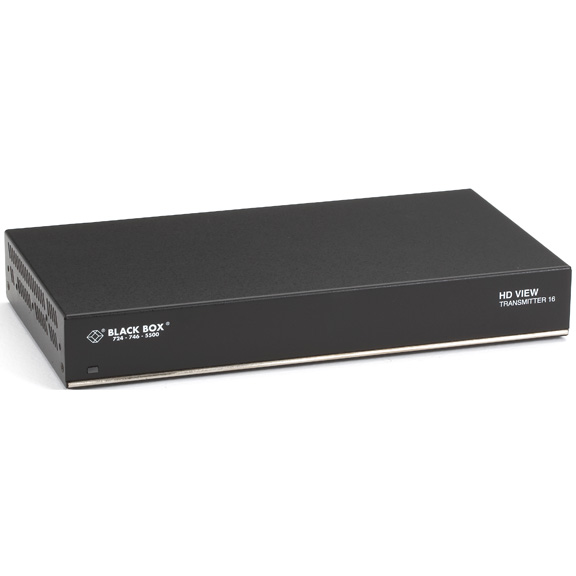

HD View Transmitter, 16-Port

Your CATx-based solution for extending high-def video, stereo audio, and full serial control.

AC3016A

Extended Double Diamond™ Warranty Available
(Three years for two)

Product Highlights

  • Perfect for reaching LCD and plasma screens over dedicated CATx runs.
  • Ultimate control and distribution for digital signage—from the media player to the screens!
  • Full, bidirectional RS-232 control. Turn screens on/off to extend life.

  • Description

    HD View Transmitter, 16-Port


    Quick Facts

  • Perfect for reaching LCD and plasma screens over dedicated CATx runs.
  • Ultimate control and distribution for digital signage—from the media player to the screens!
  • Full, bidirectional RS-232 control. Turn screens on/off to extend life.

  • Further Details

  • Plug-and-play and modular. Installs quickly without any unnecessary hardware.
  • Supports high-definition video resolutions of 1080p (1920 x 1440 at 60 Hz).
  • System supports distribution to as many as 256 screens.
  • Choose from various receivers, including those offering distances up to 1000 feet (304.8 m).
  • VESA-standard mounting options for discreet installation.

  • Designed for high-end multimedia applications, the HD View™ is a truly modular transmission system for extending video, audio, and serial control over CAT5, CAT5e, CAT6, or proposed CAT7 cable.

    The HD View system includes transmitters, receivers, and line splitters for delivering single or multiple channels of high-def video and stereo audio to remote plasma/LCD screens, which makes them great for distributing media in digital signage setups.

    Mix and match HD View units to send video at varying distances to one or more areas of your AV distribution or digital signage application.

    The transmitter featured has 16 RJ-45 ports, enabling you to communicate with 16 receivers at 16 different screens located as far as 360 feet (109.7 m) or even 1000 feet (304.8 m) away (depending on the receivers you order).

    The system enables you set up an elaborate configuration with multiple HD View receivers linked to multiple splitters and as many as 128 screens. The system’s daisychainable, long-range 2-port receiver (AC3005A) links a second remote screen and another segment.

    The HD View family also has support for DDC, which gives you optimal player-to-screen configurations.

    Out-of-band management frees the network for video transfer, and with RS-232 control, you can use simple commands to turn one or more screens on and off, preserving your screens and maximizing your system’s life.

    We also offer a tuning unit (AC3006A), which you can connect to a remote splitter or long-range receiver and optimize video settings using preset or unique tuning parameters.

    NOTE: A transmitter and receiver are both required for operation, and the maximum possible distance for remote end video is 1000 feet (308.4 m). For help ordering HD View components for your application, talk to one of our Tech Support experts.


    Technical Specifications for HD View Transmitter, 16-Port:

    DDC — Complies with VESA DDC-2 specification
    Distance (Maximum) — With standard receiver: 360 ft. (109.7 m);
    With long-range receiver: 1000 ft. (304.8 m)
    Input/Output Video Signals — Analog signal RGB; 0.7v p-p; 75 ohm
    Resolution (Maximum) — 1920 x 1440 at 60 Hz (depending on the cable length)
    RS-232 Connection — Full serial = RXD, TXD, DTR, DSR, RTS, CTS
    Serial Baud Rate — 57 kbps
    Skew Compensation (Maximum) — 63 nsec
    System Cable — CATx UTP/FTP, 24 AWG solid conductor
    CE Approval — Yes
    RoHS — Yes
    Connectors — Video in: (1)?HD15 M; Video local out: (1) HD15 F;
    Stereo audio in: (1) 3.5-mm jack; Stereo speakers out: (1) 3.5-mm jack;
    Serial in: (1) DB9 F; Serial local: (1) DB9 M;
    System out: (16) RJ-45;
    Control (serial download): (1) RJ-11
    Power — External, 5 VDC, 2 A
    Size — 1.7"H x 11.6"W x 6.1"D (4.3 x 29.5 x 15.5 cm)


    This product works with:
  • HD View Receiver, 1-Port, Standard (AC3003A)
  • HD View Receiver, 1-Port, Long-Range (AC3004A)
  • HD View Receiver, 2-Port, Daisychainable Long-Range (AC3005A)
  • HD View NEC Integrated Receiver, Long-Range (AC3004A-NEC)
  • HD View NEC Integrated Receiver, Standard (AC3003A-NEC)
  • HD View Line Splitter, 8-Port, Standard (AC3001A)
  • HD View Line Splitter, 8-Port, Long-Range (AC3002A)
    For convenient fine-tuning of video linked to a splitter or the long-range receivers, order:
  • HD View Video Tuning Unit for the AC3001A–AC3002A, AC3004A–AC3005A (AC3006A)
    Questions? Contact our FREE Tech Support.

    Also available:
  • HD View Transmitter, 1-Port (AC3000A)
  • HD View Transmitter, 8-Port (AC3008A)


    NOTE: Technical specification weight is the unit weight. It is not the packaged shipping weight. For shipping weight, please contact Black Box customer service at 877-877-2269.

  • Resources for HD View Transmitter, 16-Port:

    Manuals

    • The HD View
      Installation and User Guide (7/7/2012)

    Product Data Sheets

    Application Diagrams

    Videos


    Connect your HD View Transmitter, 16-Port with:

    Accessory: AC3004A

    HD View Receiver, 1-Port, Long-Range

    HD View Receiver, 1-Port, Long-Range

    Accessory: AC3001A

    HD View Line Splitter, 8-Port, Standard

    HD View Line Splitter, 8-Port, Standard

    Accessory: AC3005A

    HD View Receiver, 2-Port, Daisychainable Long-Range

    HD View Receiver, 2-Port, Daisychainable Long-Range

    Accessory: AC3003A-NEC

    HD View NEC Integrated Receiver, Standard

    HD View NEC Integrated Receiver, Standard

    Accessory: AC3004A-NEC

    HD View NEC Integrated Receiver, Long-Range

    HD View NEC Integrated Receiver, Long-Range
