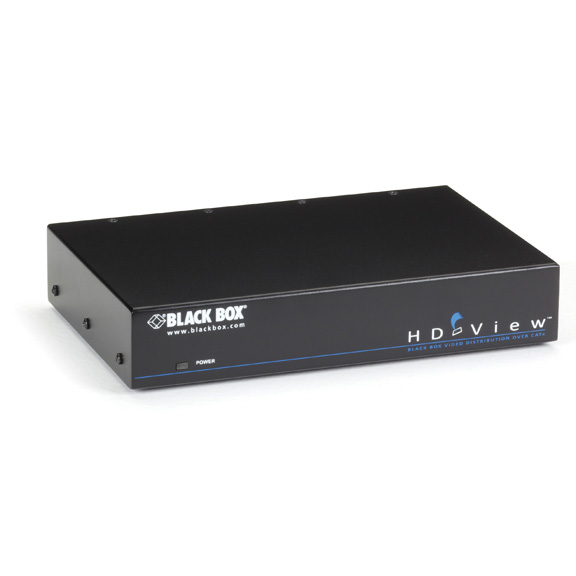

HD View Transmitter, 16-Port

Extend VGA video, stereo audio, and RS-232 control signals as far as 1000 feet (308.4 m) over CATx.

AC3016A-R2

Extended Double Diamond™ Warranty Available
(3 Additional Year)

Product Highlights

  • Perfect for reaching LCD screens over dedicated CATx runs.
  • Supports HD resolutions up to 1080p (1920 x 1440 at 60 Hz) and stereo audio.
  • Plug and play. Installs quickly without any unnecessary hardware.


  • Description

    HD View Transmitter, 16-Port


    Quick Facts

  • Perfect for reaching LCD screens over dedicated CATx runs.
  • Supports HD resolutions up to 1080p (1920 x 1440 at 60 Hz) and stereo audio.
  • Plug and play. Installs quickly without any unnecessary hardware.

  • Further Details

  • System supports signal distribution up to 256 screens.
  • Now features surge arrestors to protect against power surges.
  • Transmits RS-232 signals for turning screens on/off to extend life.
  • VESA mounting options for discreet installation.
  • Use with HD View Receivers for the distance required.
  • Solution offers easy video tuning for image clarity.
  • VESA DDC-2 compliant.

    Designed for high-end multimedia applications, the HD View™ is a truly superior system for distributing VGA video and audio signals over CAT5, CAT5e, or CAT6 cable.

    The HD View system consists of transmitters and receivers for delivery of single or multiple channels of high-def video and stereo audio to remote plasma/LCD screens, which makes them great for digital signage distribution.

    The 16-port transmitter featured here communicates over CATx cable runs with HD View Receivers. For maximum distance, choose long-range receivers, which support distances up to 1000 feet (308.4 m). Standard-range receivers are also available for connections at distances up to 360 feet (109.7 m). In addition, we offer HD View NEC Integrated Receivers in both standard and long-range versions. These modular receivers install in an NEC screen's expansion slot and offer all the features of our standalone models plus a VGA port to connect to a second display.

    Out-of-band management frees the network of video multicasting, and because it supports RS-232 transmit/receive signaling, you can turn a screen on or off to save energy and maximize the life of your screens. No more walking from screen to screen to power down your displays.

    The HD View system also includes a utility that provides you with a full view of your AV topology. Use it to name your devices and ports, and assign screens to groups. You can also use the utility to adjust video quality and RGB skew.

    Plus the HD View system supports DDC, which gives you optimal player-to-screen configurations and can be read from the remote port. Using DDC, you can set your digital signage player resolution and refresh rate to the native resolution supported by the connected screen. HD View gets this information from the display, stores it on the transmitter, and emulates it to the player.

    In addition, the system offers improved immunity to RFI interference and power surges.

    NOTE: The maximum possible distance for remote-end video is 1000 feet (308.4 m) from the transmitter to the farthest screen. For help ordering HD View components for your application, talk to one of our Tech Support experts.


    What's included:
    • HD View Transmitter, 16-Port
    • 12-V power supply
    • DB9 male/female serial cable
    • RJ-11/DB9 F serial download cable
    • VGA cable
    • 3.5-mm audio cable
    • User manual


  • Technical Specifications for HD View Transmitter, 16-Port:

    DDC Complies with VESA DDC-2 specification
    Distance (Maximum) When used with long-range receivers: 1000 ft. (308.4 m)
    Input/Output Video Signals Analog signal RGB; 0.7v p-p; 75 ohm
    Resolution (Maximum) 1920 x 1440 at 60 Hz (depending on cable length, video card, and display)
    Skew Compensation (Maximum) 63 nsec
    System Cable CATx UTP/FTP, 24 AWG, solid conductor
    CE Approval Yes
    RoHS Yes
    Connectors System out: (16) RJ-45;
    Video in: (1) HD15 F (VGA);
    Audio in: (1) 3.5-mm jack (stereo);
    Serial in: (1) DB9 F (RS-232);
    Control: (1) RJ-11 (serial)
    Power Input: 100-240 VAC, 50-60 Hz, external;
    Output: 12 VDC, 2 amps (maximum);
    Consumption: 12.5 watts
    Size 1.6"H x 8.5"W x 5.5"D (4 x 21.6 x 14 cm)
    Weight 1.3 lb. (0.6 kg)

    This product works with:
    • HD View Receiver, Standard (AC3003A-R2)
    • HD View Receiver, Long-Range (AC3004A-R2)
    • HD View NEC Integrated Receiver, Standard (AC3003A-NEC)
    • HD View NEC Integrated Receiver, Long-Range (AC3004A-NEC)
    NOTE: The transmitter is also compatible with previous non-R2 versions of the same receivers above.
    Questions? Contact our FREE Tech Support.

    NOTE: Technical specification weight is the unit weight. It is not the packaged shipping weight. For shipping weight, please contact Black Box customer service at 877-877-2269.
