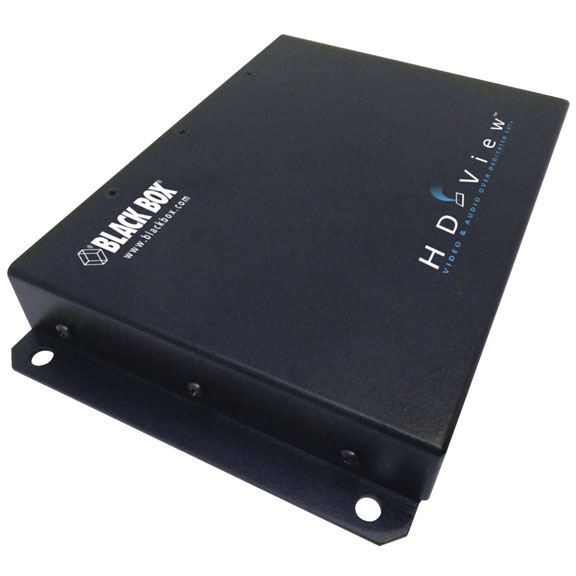

AC3003A-R2

Photo may show similar product

Other views

HD View Receiver, Standard

Extend VGA video, stereo audio, and RS-232 control signals up to 360 feet (109.7 m) over CATx.

AC3003A-R2

Extended Double Diamond™ Warranty Available
(3 Additional Year)

Product Highlights

  • Perfect for reaching LCD and plasma screens over dedicated CATx runs.
  • Supports HD resolutions up to 1080p (1920 x 1440 at 60 Hz) and stereo audio.
  • Plug and play. Installs quickly without any unnecessary hardware.


  • Description

    HD View Receiver, Standard


    Quick Facts

  • Perfect for reaching LCD and plasma screens over dedicated CATx runs.
  • Supports HD resolutions up to 1080p (1920 x 1440 at 60 Hz) and stereo audio.
  • Plug and play. Installs quickly without any unnecessary hardware.

  • Further Details

  • System supports signal distribution up to 256 screens.
  • Now features surge arrestors to protect against power surges.
  • Transmits RS-232 signals for turning screens on/off to extend life.
  • VESA mounting options for discreet installation.
  • Use with HD View Transmitters or Splitters.
  • Offers easy video tuning for image clarity.
  • VESA DDC-2 compliant.

    Designed for high-end multimedia applications, the HD View™ is a truly superior system for distributing VGA video and audio signals over CAT5, CAT5e, or CAT6 cable.

    The HD View system consists of transmitters, receivers, and line splitters for delivery of single or multiple channels of high-def video and stereo audio to remote plasma/LCD screens, which makes them great for digital signage distribution.

    The receiver featured here communicates over CATx cable runs with HD View Transmitters or the HD View Line Splitter. It supports distances up to 360 feet (109.7 m). A long-range model is also available for connections at distances up to 1000 feet (308.4 m).

    Out-of-band management frees the network of video multicasting, and because it supports RS-232 transmit/receive signaling, you can turn a screen on or off to save energy and maximize the life of your screens. No more walking from screen to screen to power down your displays.

    The HD View system also includes a utility that provides you with a full view of your AV topology. Use it to name your devices and ports, and assign screens to groups. You can also use the utility to adjust video quality and RGB skew.

    Plus, the HD View system supports DDC, which gives you optimal player-to-screen configurations and can be read from the remote port. Using DDC, you can set your digital signage player resolution and refresh rate to the native resolution supported by the connected screen. HD View gets this information from the display, stores it on the transmitter, and emulates it to the player.

    In addition, the system offers improved immunity to RFI interference and power surges.

    If you have an NEC screen with an expansion slot and want to reduce excessive use of space, see our Integrated NEC HD View Receivers. Offered in standard and long-range versions, these modular receivers offer all the features of our standalone models plus a VGA port to connect to a second display.

    NOTE: The maximum possible distance for remote-end video is 1000 feet (308.4 m) from the transmitter to the farthest screen. For help ordering HD View components for your application, talk to one of our Tech Support experts.



  • Technical Specifications for HD View Receiver, Standard:

    DDC Complies with VESA DDC-2 specification
    Distance (Maximum) 360 ft. (109.7 m)
    Input/Output Video Signals Analog signal RGB; 0.7v p-p; 75 ohm
    Resolution (Maximum) 1920 x 1440 at 60 Hz (depending on cable length, video card, and display)
    Skew Compensation (Maximum) 63 nsec
    System Cable CATx UTP/FTP, 24 AWG, solid conductor
    CE Approval Yes
    RoHS Yes
    Connectors System in: (1) RJ-45;
    Video out: (1) HD15 F;
    Audio out: (1) 3.5-mm jack;
    Serial out: (1) DB9 M;
    Control: (1) RJ-11 (serial)
    Power Input: 100-240 VAC, 50-60 Hz, external;
    Output: 12 VDC, 2 amps (maximum)
    Size 1.1"H x 4.8"W x 7.5"D (2.8 x 12.2 x 19.1 cm)

    What's included:
    • (1) HD View Receiver, Standard
    • (1) 12-VDC, 2-A power supply with power cord
    • Phillips head screws
    • (1) user manual

    This product works with:
    • HD View Transmitter, 1-Port (AC3000A)
    • HD View Transmitter, 8-Port (AC3008A)
    • HD View Transmitter, 16-Port (AC3016A)
    • HD View Line Splitter, 8-Port, Long-Range (AC3002A)
    NOTE: The receiver is also compatible with newer -R2 versions of the same transmitters and the line splitter above.
    Questions? Contact our FREE Tech Support.

    NOTE: Technical specification weight is the unit weight. It is not the packaged shipping weight. For shipping weight, please contact Black Box customer service at 877-877-2269.


    Resources for HD View Receiver, Standard:

    Manuals

    • HD View User Manual
      User Manual for the AC3000A-R2, AC3008A-R2, AC3016A-R2, AC3003A-R2, AC3003A-NEC-R2, AC3004A-R2, AC3004A-NEC-R2, & AC3004A-NEC-R2 (Version 2)

    Quick Start Guides

    • HD View Quick Start Guide (QSG)
      Quick Start Guide for the AC3000A-R2, AC3008A-R2, AC3016A-R2, AC3003A-R2, and AC3004A-R2 (Version 3)
