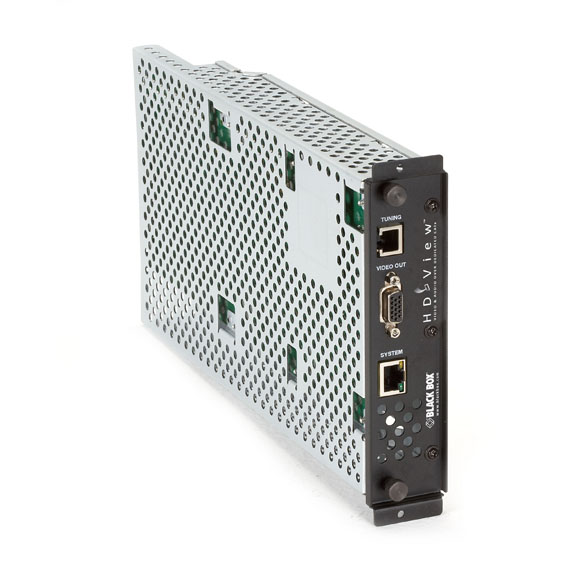

AC3004A-NEC

Photo may show similar product

Other views

HD View NEC Integrated Receiver, Long-Range

A CATx VGA extender receiver that plugs conveniently into an NEC LCD expansion slot.

AC3004A-NEC

Extended Double Diamond™ Warranty Available
(3 Additional Year)

Product Highlights

  • Economical extender receiver plugs into an NEC® LCD's expansion slot.
  • Supports high-def VGA and stereo audio extensions up to 1000 feet (304.8 m).
  • A fully integrated solution—no cabling to the screen necessary.


  • Description

    HD View NEC Integrated Receiver, Long-Range


    Quick Facts

  • Economical extender receiver plugs into an NEC® LCD's expansion slot.
  • Supports high-def VGA and stereo audio extensions up to 1000 feet (304.8 m).
  • A fully integrated solution—no cabling to the screen necessary.

  • Further Details

  • Receives signals sent from HD View Transmitters or Splitter.
  • Supports full, bidirectional RS-232 control of remote screens.
  • Turn digital screens on/off to extend their life, save power.
  • Full digital signage player-to-screen management.
  • Perfect for digital signage links over dedicated CATx runs.
  • Great AV extension to areas where you don't want a receiver box.
  • Modular, plug and play. Installs quickly without any extra hardware.
  • Supports HD video resolutions up to 1920 x 1440 at 60 Hz.
  • Covers distances without compromising on picture quality.
  • Out-of-band operation for maximum video bandwidth.
  • Also has VGA output to connect to a second display.
  • Offers easy video tuning for image clarity.
  • VESA DDC-2 compliant.

    Use already-installed copper cable to reach public displays—without the bother of installing external AV hardware at your screens.

    Designed for high-end multimedia applications, the HD View™ is a truly modular transmission system for extending VGA video, stereo audio, and serial control over CAT5, CAT5e, CAT6, or proposed CAT7 cable.

    Featured here is our long-range HD View NEC Integrated Receiver for space-saving, convenient installation at the remote digital sign. Because it installs in any NEC LCD display with an expansion slot, it's great for areas where there is absolutely no room for an external receiver box.

    It's also ideal for sites where you're concerned about hardware theft or vandalism, such as in schools or public transit facilities. By extending video directly—as well as inconspicuously—to the screen, the HD View NEC Integrated Receiver gives you a way to keep your expensive players and subscriber units out of sight, in areas where they won't be stolen or tampered with.

    And, with it, there's no need for you to buy and install (as well as power) a separate external receiver. Just slide this receiver into the screen's slot and plug in your CATx cable.

    A fully integrated solution, no external AV cabling is required. However, it does also have VGA output. Through this port, you can control or activate a second display—essentially doubling the value of your receiver solution.

    The HD View family also supports DDC for optimal player-to-screen configurations. Using DDC, you can set your digital signage player resolution and refresh rate to the native resolution supported by the connected screen. HD View gets this information from the display, stores it on the transmitter, and emulates it to the player.

    Distance plus flexibility.
    Like the rest of the HD View line's receivers, the AC3004A-NEC receives high-def video, stereo audio, and bidirectional RS-232 signals over the non-networked UTP cable. It's great for delivering dynamic. real-time content to remote screens in digital signage setups.

    A long-range extender unit, the NEC receiver communicates via the CATx link to a compatible 1-, 8-, or 16-port transmitter located up to 1000 feet (304.8 m) away.

    But there's flexibility in the system, too. You can mix and match various HD View units to send signals at varying distances to one or more areas of your AV distribution or electronic signage application. Use it, for instance, to receive signals from the CATx output on an HD View 8-Port Line Splitter (the splitter installs at the end of the CATx cabling run from the system transmitter).

    Manage and maximize life of screens.
    Supporting bidirectional RS-232 communications, the HD View system provides full player-to-screen management. Not only can you view a screen's status and send a command to that screen, but you can also query the remote digital screen and get a response.

    With this level of RS-232 control, you can turn one screen or entire groups of screens off to save energy, preserve your screens, and maximize the life of your digital signage or AV system.

    This is a real time-saver, too. No more walking from screen to screen to make a minor adjustment. Instead, you can view screen status, adjust brightness and volume, and power up screens from a local workstation using simple commands. RS-232 control even extends to the second display on the receiver's VGA output port.

    The HD View system also includes a utility that provides you with a full view of your AV topology. Use it to name your devices and ports, and assign screens to groups.

    You can also adjust skew for image clarity. For ease of video tuning, order the optional tuning unit (AC3006A). It enables you to optimize settings using preset or unique tuning parameters via a connection to the receiver's RJ-11 port. (Tuning can also be done at the transmitter end using the HD View system's service utility program.)

  • Technical Specifications for HD View NEC Integrated Receiver, Long-Range:

    DDC Complies with VESA DDC-2 specification
    Distance (Maximum) 1000 ft. (304.8 m)
    Input/Output Video Signals Analog signal RGB; 0.7v p-p; 75 ohm
    Resolution (Maximum) 1920 x 1440 at 60 Hz (depending on the cable length)
    RS-232 Connection Full serial = RXD, TXD, DTR, DSR, RTS, CTS
    Serial Baud Rate 57 kbps
    Skew Compensation (Maximum) 63 nsec
    System Cable CATx UTP/FTP, 24 AWG solid conductor
    CE Approval Yes
    RoHS Yes
    Connectors System in: (1) RJ-45;
    Video out: (1) HD15 F;
    Tuning out: (1) RJ-11;
    Power From the NEC panel

    NOTE: A transmitter and receiver are both required for operation, and the maximum possible distance for remote end video is 1000 feet (308.4 m). For help ordering HD View components for your application, contact our FREE Tech Support.

    This product works with:
    • HD View Transmitter, 1-Port (AC3000A)
    • HD View Transmitter, 8-Port (AC3008A)
    • HD View Transmitter, 16-Port (AC3016A)
    • HD View Line Splitter, 8-Port, Standard (AC3001A)
    • HD View Line Splitter, 8-Port, Long-Range (AC3001A)
    • HD View Video Tuning Unit (AC3006A)
    Also available:
    • HD View NEC Integrated Receiver, Standard (AC3003A-NEC)
    • HD View Receiver, 1-Port, Standard (AC3003A)
    • HD View Receiver, 1-Port, Long-Range (AC3004A)
    • HD View Receiver, 2-Port, Daisychainable Long-Range (AC3005A)
    Questions? Contact our FREE Tech Support.


    NOTE: Technical specification weight is the unit weight. It is not the packaged shipping weight. For shipping weight, please contact Black Box customer service at 877-877-2269.


    Resources for HD View NEC Integrated Receiver, Long-Range:

    Software

    • HD View Transmitter Software
      Software for AC3000A, AC3001A, AC3002A, AC3003A, AC3004A, AC3003A-NEC, AC3004A-NEC, AC3008A, AC3016A (1.0.80)
