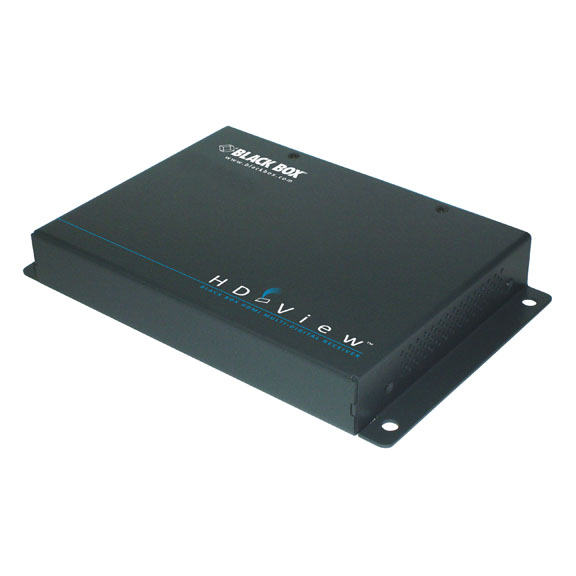

HD View™ HDMI MultiDigital Extender Receiver with Cables

Receives HD media distributed up to 328 feet (100 m) point to point over a single CAT5 or higher cable.

System supports daisychaining of units for distances up to 1968 feet (600 m)*.

HDMI® and DisplayPort inputs on transmitter end.

Provides integrated IP connectivity to displays and peripherals linked to it.

System supports both HDMI 1.3a and DisplayPort++ standards for newer digital signage players.

Offers DDC termination for optimized player–screen communications.

Also supports bidirectional control of remote serial devices via its DB9 port.

No need to set equalization or skew compensation.

VESA screen mountable for tight display applications.

Works with the system’s transmitter (HDV-HDMI-TZ).

This next-generation HD View™ HDMI solution provides both long-distance CATx extension for digital 1080p/60-Hz video and audio plus the ability to communicate via IP with remote Ethernet peripherals.

Easy to set up and use, it’s ideal for high-end multimedia AV distribution and HD digital signage applications. It sends non-compressed (lossless), full-HD media signaling from a digital signage player or PC to a remote screen in real time without any video or sound degradation.

And because the extender uses easy-to-handle CAT5 or higher cable for multimedia distribution, you get more distance than what’s ordinarily possible with digital audio/video cabling—up to 328 feet (100 m) in a non-daisychained configuration. Daisychaining units together enables you to take digital media farther, up to 1968 feet (600 m) in a multi-hop daisychain of transmitters and receivers*.

Supports IP-based peripheral communications.
The HD View HDMI MultiDigital Extender system offers integrated IP connectivity to displays and display-side peripherals attached at its receiver.

Through this dedicated 10-/100-Mbps channel, you can communicate with Ethernet-based readers, camera sensors, or touchscreens from a central site. Even better, it also provides an Internet feed to a remote display!

What’s featured here:
The product featured here is the HD View HDMI MultiDigital Extender Receiver with Cables (HDV-HDMI-RZ), which includes HDMI, stereo audio, CAT5, and RS-232 serial cables. The receiver must be used with the separately sold HD View HDMI MultiDigital Extender Transmitter (HDV-HDMI-TZ).

This receiver has an HDMI 1.3a port for display output, as well as an 3.5-mm audio jack, a DB9 port for bidirectional control of remote serial devices, an Ethernet network port, and an RJ-45 interconnection port for the UTP link to the transmitter.

* A display can only be placed at the end of a daisychain.

NOTE: Distance and performance depend on the cables and the resolution of your graphics card.

What’s included:

(1) receiver

(1) HDMI cable, male/male, 4.9-ft. (1.5-m)

(1) stereo audio cable, 3.5-mm male/male, 3.9-ft. (1.2-m)

(1) CAT5 shielded (FTP) cable, RJ-45/RJ-45, 6-ft. (1.8-m)

(1) RS-232 serial cable, DB9 female/female, 6.5-ft (2-m)
