Networking > PoE

click photo to enlarge

LPS2001

Photo may show similar product

Other views

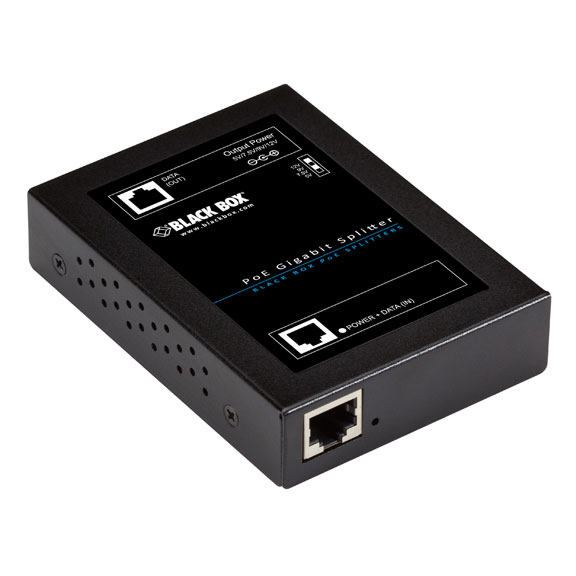

Gigabit PoE+ Splitter

Bring PoE power to non-PoE devices.

LPS2001

Extended Double Diamond™ Warranty Available
(Three years for two)

Product Highlights

  • Splits a PoE or PoE+ signal into separate power and data sources.
  • Enables you to use PoE or PoE+ to power non-PoE devices.
  • Supports Gigabit Ethernet as well as 802.3af PoE and 802.3at PoE+.
  • Provides up to 12-VDC 1.7-amp power to a non-PoE device.
  • Features auto sensing, auto negotiating 10-/100-/1000-Mbps ports.
  • Auto-MDI/MDI-X on both Ethernet ports.

  • Description

    Gigabit PoE+ Splitter


    Quick Facts

  • Splits a PoE or PoE+ signal into separate power and data sources.
  • Enables you to use PoE or PoE+ to power non-PoE devices.
  • Supports Gigabit Ethernet as well as 802.3af PoE and 802.3at PoE+.
  • Provides up to 12-VDC 1.7-amp power to a non-PoE device.
  • Features auto sensing, auto negotiating 10-/100-/1000-Mbps ports.
  • Auto-MDI/MDI-X on both Ethernet ports.

  • Further Details

    The Gigabit PoE+ Splitter enables you to send Gigabit Ethernet plus PoE+ power to a non-PoE device by splitting the PoE power out to an 18" DC power cord with with a right angle 5.5 x 2.5-mm power plug (included) to power the device.

    The splitter saves on installation and equipment costs by enabling you to install non-PoE devices in areas without a nearby power outlet and to bring legacy devices into a PoE network.



    Technical Specifications for Gigabit PoE+ Splitter:

    Environmental — Operating temperature: +32 to +113° F (0 to +45° C);
    Storage temperature: -4 to +194° F (-20 to +90° C);
    Humidity: 10 to 90% noncondensing
    Standards — IEEE 802.3af, 802.3at, 802.3 10BASE-T, 802.3u 100BASE-TX, 802.3ab 1000BASE-TX
    CE Approval — Yes
    Power — Input: via 802.3at PoE;
    Output: PoE: 5V/2A, 7.5V/1.4A, 9V/1.2A, 12V/0.9A;
    PoE+: 5V/4A, 7.5V/2.7A, 9V/2.3A, 12V/1.7A;
    Power consumption: 11 watts PoE; 22 watts PoE+
    Connectors — (1) RJ-45 input;
    (1) RJ-45 output;
    (1) 5.5 x 2.5-mm power jack;
    (1) 18" power cord with a right angle 5.5x2.5-mm right-angle DC power plug (included)
    Indicators — (1) power LED
    Size — 0.9"H x 2.9"W x 4"D (2.3 x 7.5 x 10.2 cm)
    Weight — 0.4 lb. (0.2 kg)



    NOTE: Technical specification weight is the unit weight. It is not the packaged shipping weight. For shipping weight, please contact Black Box customer service at 877-877-2269.


    Resources for Gigabit PoE+ Splitter:


    Connect your Gigabit PoE+ Splitter with:

    Double Diamond Warranty

    Standard Manufacturer's Warranty


    A One year warranty is included.

    Extended Two years for one Warranty Available


    Protect your purchase with an additional Two years for oneDouble Diamond™ warranty!
    Cost: $7.00

    Extended Three years for two Warranty Available


    Protect your purchase with an additional Three years for twoDouble Diamond™ warranty!
    Cost: $13.99

    Diamond

    Double Diamond™ Warranty (Standard)

    Coverage:

    Take the risk out of equipment purchases with the Double Diamond™ Warranty from Black Box Network Services.


    The Double Diamond™ Warranty is our no-questions-asked warranty that protects your Black Box® brand products* from accidental damage, including drops, water, and power surges.

    Most of our products come with a one- or two-year warranty. Some products—such as copper cables, manual switches, cabinets, and racks—are even guaranteed for life!

    During the warranty period, Black Box Network Services will repair or replace your damaged equipment within one week of receipt at NO CHARGE!

    Plus, get an Extended Double Diamond Warranty.


    You can also extend your warranty or protect a previously purchased Black Box® brand product* for an additional year—for only 10% of the purchase price! Or, extend your coverage for a full three years for only 20% of the purchase price! That's getting three years for the price of two.

    Ordering an extended warranty is easy: When viewing a product in your shopping cart, just select the one or three years of additional coverage in the dropdown menu under “Warranty Options.” For details, contact Customer Service at 724-746-5500.

    * Certain products may not be eligible.

    Warranty Compared

    Black Box® Double Diamond™ Warranty The Competition
    Warranty Length One Year to Lifetime, Depending on the Product. Read the fine print.
    Guaranteed for Life! Black Box® Brand Copper Cables, Manual Switches and More! No.
    Accidental Damage 100% Covered! No.
    Water Damage 100% Covered! No.
    Power Surges 100% Covered! No.
    Warranty Replacements No Questions Asked! ?
    Tech Support Hotline 100% FREE! $$$

    What’s more, we also have a 45-day, no-questions-asked return policy. Simply call Customer Service for a Return Authorization (RA) number, return your product in new condition and in the original package, and receive a full refund.
