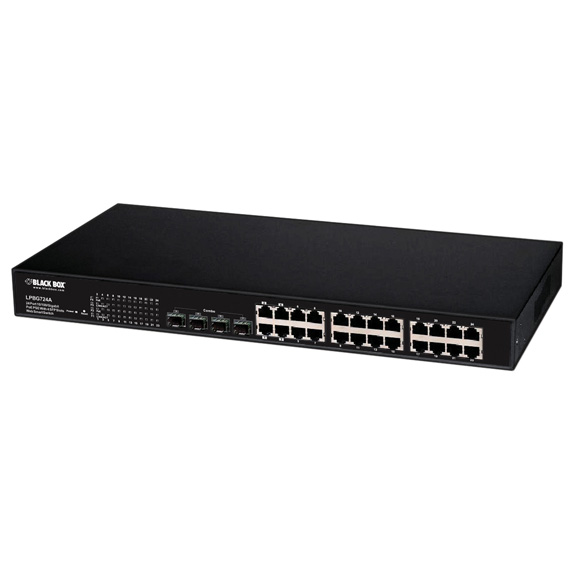

LPBG724A

Photo may show similar product

Other views

Gigabit PoE Web Smart Switch, 24-Port

Bring PoE into your Gigabit Network.

LPBG724A

Extended Double Diamond™ Warranty Available
(3 Additional Year)

Product Highlights

  • Features 24 autosensing, autonegotiating 10-/100-/1000-Mbps ports; four are dual-media ports, which may be used as Gigabit Ethernet UTP or SFP uplink ports.
  • Accepts 1250-Mbps SFPs.
  • Injects power into Ethernet cable for PoE devices such as wireless access points and security cameras.
  • Use a Web browser to configure and manage the switch.


  • Description

    Gigabit PoE Web Smart Switch, 24-Port


    Quick Facts

  • Features 24 autosensing, autonegotiating 10-/100-/1000-Mbps ports; four are dual-media ports, which may be used as Gigabit Ethernet UTP or SFP uplink ports.
  • Accepts 1250-Mbps SFPs.
  • Injects power into Ethernet cable for PoE devices such as wireless access points and security cameras.
  • Use a Web browser to configure and manage the switch.

  • Further Details

  • Auto MDI/MDI-X on all copper ports.
  • Includes IEEE 802.1Q VLAN tagging and 802.1p QoS.
  • Supports Jumbo Frames and IGMP.
  • What's included:
  • Switch
  • Rackmount brackets
  • User's manual


  • NOTE: This switch works with 1250-Mbps SFPs. For details on SFP compatibility, contact our FREE Tech Support.



    Technical Specifications for Gigabit PoE Web Smart Switch, 24-Port:

    Buffer 500 KB
    Environmental Operating temperature: 32 to 131° F (0 to 55° C);
    Operating humidity: 10 to 90% noncondensing
    MAC Addresses 8K
    Management HTTP via embedded Web server
    PoE Type 802.3af power source equipment (PSE)
    Standards IEEE 802.3, 802.3u, 802.3ab, 802.3z, 802.3x, 802.3af, 802.1p, 802.1d, 802.1w, 802.1x, 802.1Q
    CE Approval Yes
    RoHS Yes
    Connectors Ethernet: (20) RJ-45;
    Dual Media: (4) ports, each consisting of (1) RJ-45 + (1) SFP
    Power External power supply: Autosensing 90-260 VAC, 50-60 Hz, 390 watts maximum;
    PoE: 15.4 watts per port
    Size 1.7"H x 17"W x 8.7"D (4.4 x 44 x 22 cm)
    Weight 11.7 lb. (5.3 kg)
    NOTE: This switch works with 1250-Mbps SFPs. For details on SFP compatibility, contact our FREE Tech Support.



    NOTE: Technical specification weight is the unit weight. It is not the packaged shipping weight. For shipping weight, please contact Black Box customer service at 877-877-2269.


    Resources for Gigabit PoE Web Smart Switch, 24-Port:

    Manuals

    • Gigabit PSE Web Smart Switch Manual
      Manual for the LPBG716A, and LPBG724A (Version 1)

    Visio Stencils

    • Visio Stencil
      Stencil Drawings
