CAT6U-P-PBC-SLD-RD

Photo may show similar product

Other views

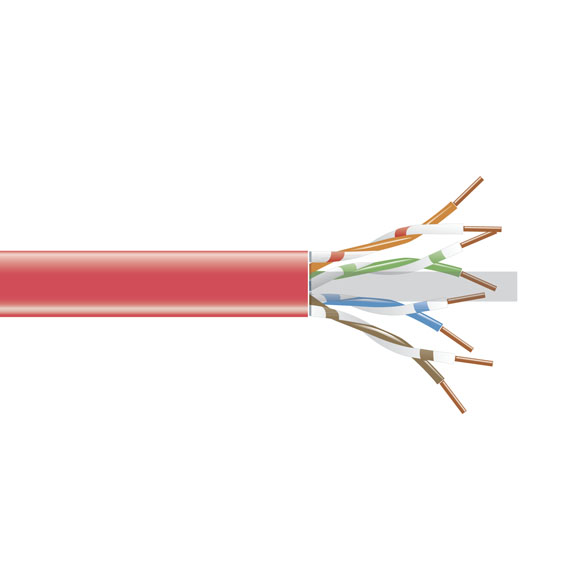

GigaTrue Plus CAT6 Solid Bulk Cable, 4-Pair, UTP, Plenum, 1000-ft. (304.8-m), Red

High-performance, ETL Verified cable that's made in the USA.

CAT6U-P-PBC-SLD-RD

Extended Double Diamond™ Warranty Available
(Lifetime)

Product Highlights

  • Sweep tested and characterized to 250 MHz.
  • Embedded tape separator helps improve NEXT performance.
  • Less rigid, so cable is easier to install.
  • Guaranteed for life!

  • Description

    GigaTrue® Plus CAT6 Solid Bulk Cable, 4-Pair, UTP, Plenum, 1000-ft. (304.8-m), Red


    Quick Facts

  • Sweep tested and characterized to 250 MHz.
  • Embedded tape separator helps improve NEXT performance.
  • Less rigid, so cable is easier to install.
  • Guaranteed for life!

  • Further Details

  • This cable is ETL Verified.
  • Proudly made in the USA.
  • 1000 ft. (304.8 m).
  • Available in six other colors.
  • Meets the TIA/EIA 568-C.2 Category 6 specification.
  • CAT6 compliance means dependable compatibility for future applications.
  • Ideal for high-speed applications, such as Gigabit Ethernet, 100BASE-TX, 100-Mbps TP-PMD, T1, 155-Mbps ATM, 622-Mbps ATM, and voice.
  • Low attenuation and power-sum crosstalk characteristics over an extended frequency range.
  • Every master pull box is tested for electrical performance.
  • Longitudinal rip cord for easy jacket opening.
  • 1000-foot (304.8-m) cable is marked in two-foot increments so you always know how much you have left.

  • This bulk cable features the Accu-Pull Measuring System: Descending sequential foot markings let you know exactly how much is left on the spool. No more guesswork or measuring to see how much cable you have left.

    An embedded tape separator helps to improve NEXT performance while decreasing rigidity for easier installation.


    Technical Specifications for GigaTrue Plus CAT6 Solid Bulk Cable, 4-Pair, UTP, Plenum, 1000-ft. (304.8-m), Red:

    ACR (Minimum at 100 m) 5.4 dB at 250 MHz
    Attenuation (Minimum at 100 m) 32.8 dB at 250 MHz
    Cable Type 4-pair UTP
    Capacitance Unbalance (Maximum) 4.6 nF/100 m, nominal
    Characteristic Impedance 100 ± 15 ohms
    Conductor 23 AWG, solid, bare copper
    Conductor Resistance 6.66 ohm/100 m, maximum 2.5%
    Delay Skew (Maximum) <45 ns/100 m
    Diameter (Nominal) Outside: 0.230" (0.6 cm)
    EL-FEXT (Minimum at 100 m) 19.8 dB at 250 MHz
    Jacket, Outer Flame-resistant PVC
    Jacket Thickness 0.022" (0.05 cm)
    Insulation Pair: PE
    NEXT (Minimum at 100 m) 38.3 dB at 250 MHz
    PS-ACR (Minimum at 100 m) 3.4 dB at 250 MHz
    PS-ELFEXT (Minimum at 100 m) 16.8 dB at 250 MHz
    PS-NEXT (Minimum at 100 m) 36.3 dB at 250 MHz
    Return Loss 17.3 dB at 250 MHz
    Temperature Installation: +32 to +140° F (0 to + 60° C); Operating: -4 to +140° F (-20 to +60° C)
    Tensile Load Long term, maximum: 90 lbs.; Short term, maximum: 300 lbs.
    Velocity of Propagation (Minimum) 61.7%

    This product works with:
  • GigaTrue Plus CAT6 Jacks
  • GigaStation Plus Wallplates
  • Questions? Contact our FREE Tech Support.

    NOTE: Technical specification weight is the unit weight. It is not the packaged shipping weight. For shipping weight, please contact Black Box customer service at 877-877-2269.


    Resources for GigaTrue Plus CAT6 Solid Bulk Cable, 4-Pair, UTP, Plenum, 1000-ft. (304.8-m), Red:


    Connect your GigaTrue Plus CAT6 Solid Bulk Cable, 4-Pair, UTP, Plenum, 1000-ft. (304.8-m), Red with:
