Jacks, Panels, & Hardware > Copper Patch Panels


click photo to enlarge

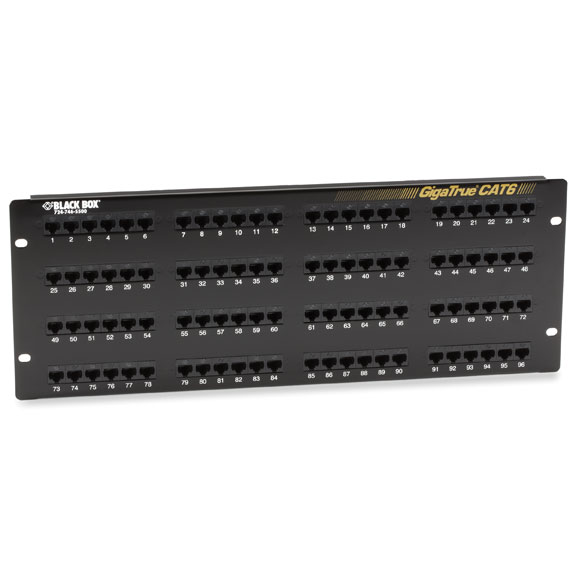

JPM614A-R7

Photo may show similar product

Other views

GigaTrue CAT6 Patch Panel with Universal Wiring, 96-Port, 4U

Patch panel made for CAT6 component-level performance.

JPM614A-R7

LIFETIME DoubleDiamond™ Warranty (Standard)

Product Highlights

  • Provides ETL Verified CAT6 component-level performance.
  • Meets or exceeds ANSI/TIA/EIA-568-C.2 Category 6 specifications.
  • Tested for NEXT, Power Sum NEXT, FEXT, Return Loss, and attenuation to 250 MHz.
  • Guaranteed for life!


  • Further Details

  • Universal wiring—panel is supplied with labeling for both T568A and T568B.
  • Paired punchdown sequence enables pair twist within 1⁄2" of termination.
  • IDC 110 block features peaks to make lacing cable easier.
  • Rolled-edge construction provides superior panel rigidity to eliminate flex during termination.
  • Includes cable ties and mounting hardware.

  • This patch panel features universal wiring and includes labeling for both T568A and T568B.

    This product works with:
    • GigaTrue 6 Patch Cable, 4-Pair (EVNSL641, etc.)
    • GigaTrue CAT6 Jacks (FM630-R2–FM640-R2)
    • GigaTrue2 CAT6 Jacks (FMT630-R2–FMT640-R2)
    Questions? Contact our FREE Tech Support.

    Dimensions 7"H (4U) x 19"W x 1.25"D (17.8 x 48.3 x 3.2 cm)
    Weight 5.8 lb. (2.6 kg)

    This product works with:
    • GigaTrue 6 Patch Cable, 4-Pair (EVNSL641, etc.)
    • GigaTrue CAT6 Jacks (FM630-R2–FM640-R2)
    • GigaTrue2 CAT6 Jacks (FMT630-R2–FMT640-R2)
    Questions? Contact our FREE Tech Support.

    NOTE: Technical specification weight is the unit weight. It is not the packaged shipping weight. For shipping weight, please contact Black Box customer service at 1-800-316-7107.

    Manuals

    • GigaTrue CAT6 Patch Panel User Manual
      User Manual for the JPM610A-R7, JPM612A-R7, and JPM614A-R7 (Version 1)

    Product Data Sheets

    Black Box Explains


    Double Diamond Warranty
    LIFETIME DoubleDiamond™ Warranty (Standard)
    Diamond

    Double Diamond™ Warranty (Standard)

    Coverage:

    Take the risk out of equipment purchases with the Double Diamond™ Warranty from Black Box Network Services.


    The Double Diamond Warranty is our warranty that protects your Black Box® brand products* from accidental damage, including drops, water, and power surges.

    The GigaTrue CAT6 Patch Panel with Universal Wiring, 96-Port, 4U comes with a standard Lifetime warranty already included.

    During the warranty period, Black Box Network Services will repair or replace your damaged equipment within one week of receipt at NO CHARGE!*

    Plus, get an Extended Double Diamond Warranty.


    You can also extend your warranty or protect a previously purchased Black Box® brand product** for an additional year—for only 10% of the purchase price! Or, extend your coverage for a full three years for only 20% of the purchase price!

    Ordering an extended warranty is easy: When viewing a product in your shopping cart, just select the one or three years of additional coverage in the dropdown menu under “Warranty Options.” For details, contact Customer Service at 724-746-5500.

    * Warranty subject to certain exclusions and limitations
    ** Certain products may not be eligible.

    What’s more, we also have a 45-day return policy. Simply call Customer Service for a Return Authorization (RA) number, return your product in new condition and in the original package, and receive a full refund.

    Product SKU Price Quantity
    GigaTrue CAT6 Patch Panel, Universal Wiring, Component Level, 48-Port, 2U JPM612A-R7 $323.15

    GigaTrue CAT6 Patch Panel, Universal Wiring, Component Level, 24-Port, 1U JPM610A-R7 $181.75



    Add to Cart

    Price: $626.15

    Quantity Available: 97

    Quantity

    Warranty

    Total

    Shipping Info

    In Stock - orders received before 5PM ET ship same day

    Weight: 7.156 lbs.
    HxWxD: 2.25 x 7.75 x 20.25 in.

    What’s more, we also have a 45-day return policy. Simply call Customer Service for a Return Authorization (RA) number, return your product in new condition and in the original package, and receive a full refund.
