Cables > CAT6

click photo to enlarge

EVNSL674-0020

Photo may show similar product

Other views

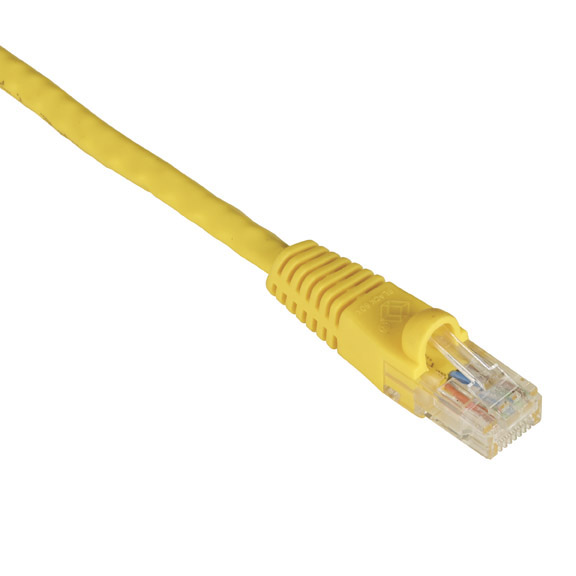

GigaTrue® CAT6 Component 550-MHz Patch Cable, Molded Boots, Straight-Pinned, Yellow, 20-ft. (6.0-m)

Provides true CAT6 component performance and comes with a test report.

EVNSL674-0020


Lifetime Warranty

Product Highlights

  • Our best CAT6 patch cable.
  • Each cable is lab tested (includes report) for true CAT6 component performance.
  • Tested to 550 MHz.
  • Guaranteed for life!

  • Description

    GigaTrue® CAT6 Component 550-MHz Patch Cable, Molded Boots, Straight-Pinned, Yellow, 20-ft. (6.0-m)


    Quick Facts

  • Our best CAT6 patch cable.
  • Each cable is lab tested (includes report) for true CAT6 component performance.
  • Tested to 550 MHz.
  • Guaranteed for life!

  • Further Details

  • Use in our Black Box® GigaTrue® channel or mix with components from other manufacturers’.
  • For 1000BASE-T, 100BASE-TX, 100BASE-VG, 155-Mbps ATM, 100-Mbps FDDI/CDDI, and other high-speed applications.
  • Perfect for full broadband and baseband video.
  • Provides full-duplex operation for next-generation applications.
  • Delivers full Power Sum performance.
  • Meets or exceed all crosstalk and return loss specifications.
  • Meets balance requirements (LCL/LCTL), resulting in better transmission.
  • Improved attenuation provides cleaner data and video transmisions.
  • Also available in 25-packs.


  • Technical Specifications for GigaTrue® CAT6 Component 550-MHz Patch Cable, Molded Boots, Straight-Pinned, Yellow, 20-ft. (6.0-m):

    Attenuation — 23.9 dB at 100 MHz; 39.6 dB at 250 MHz
    Cable Diameter — 0.22"
    Cable Jacket — PVC
    Conductor Gauge — 24 AWG, stranded
    Delay Skew (Maximum) — 25 ns/100 m (328 ft.)
    Impedance — 100 ± 15 ohms at 1–250 MHz
    Mutual Capacitance — 56 pF/m (maximum)
    NEXT — 44.3 dB at 100 MHz; 38.3 dB at 250 MHz
    PS-NEXT — 42.3 dB at 100 MHz; 36.3 dB at 250 MHz
    Resistance (Maximum) — 9.38 ohms/100 m (328 ft.)
    Standards — TIA/EIA-568-B.2-1 Category 6
    The following products are part of our ETL-tested GigaTrue CAT6 channel:
  • GigaTrue CAT6 Component 550-MHz Patch Cable
  • GigaTrue 550 CAT6 Solid Bulk Cable
  • GigaTrue 550 CAT6 Stranded Bulk Cable
  • GigaTrue CAT6 Patch Panels
  • GigaTrue2 CAT6 Jacks
  • CAT6 Wiring Block Kit

  • This cable can also be used with other Giga or Giga2 products, such as:
  • GigaStation High-Density Multimedia Patch Panels
  • GigaTrue CAT6 Jacks
  • GigaStation Wallplates
  • GigaStation2 Wallplates
  • GigaStation2 Housings
  • Snap Fittings
  • GigaStation2 Snap Fittings
  • Questions? Contact our FREE Tech Support.

    NOTE: Technical specification weight is the unit weight. It is not the packaged shipping weight. For shipping weight, please contact Black Box customer service at 877-877-2269.
