EVNSL628-0003-25PAK

Photo may show similar product

Other views

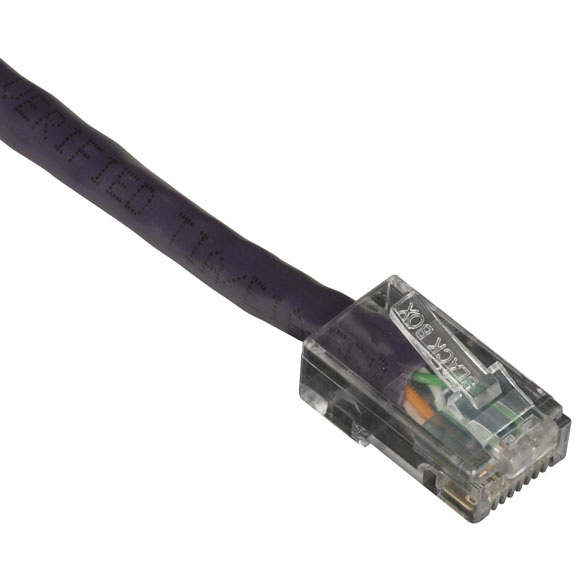

GigaTrue CAT6 Channel Patch Cable with Basic Connectors, Purple, 3-ft. (0.9-m), 25-Pack

Get CAT6 performance in an end-to-end Black Box® GigaTrue® channel.

EVNSL628-0003-25PAK

Extended Double Diamond™ Warranty Available
(Lifetime)

Product Highlights

  • Get high-level CAT6 performance in an end-to-end BLACK BOX® GigaTrue® channel.
  • Meets or exceeds CAT6 specifications.
  • Tested to 550 MHz.
  • Guaranteed for life!


  • Description

    GigaTrue CAT6 Channel Patch Cable with Basic Connectors, Purple, 3-ft. (0.9-m), 25-Pack


    Quick Facts

  • Get high-level CAT6 performance in an end-to-end BLACK BOX® GigaTrue® channel.
  • Meets or exceeds CAT6 specifications.
  • Tested to 550 MHz.
  • Guaranteed for life!

  • Further Details

  • Cable construction: stranded, 24 AWG copper wire, RJ-45 connectors, 4-pair, T568B, PVC jacket, straight-pinned.
  • Improved attenuation provides cleaner data and video transmissions.
  • For 1000BASE-T, 100BASE-TX, 100BASE-VG, 155-Mbps ATM, 100-Mbps FDDI/CDDI, and other high-speed applications.
  • Perfect for full broadband and baseband video.
  • Stranded cable delivers full Power Sum performance.
  • Provides full-duplex operation for next-generation applications.
  • Meets balance requirements (LCL/LCTL), resulting in better transmission.

  • NOTE: This product works with all standard jacks, wallplates, and other RJ-45 hardware. Questions? Contact our FREE Tech Support.

    This cable works with:
  • GigaStation High-Density Multimedia Patch Panels
  • GigaTrue CAT6 Patch Panels
  • GigaTrue CAT6 Jacks
  • GigaTrue2 CAT6 Jacks
  • GigaStation Wallplates
  • GigaStation2 Wallplates
  • GigaStation2 Surface-Mount Housings
  • Snap Fittings
  • GigaStation2 Snap Fittings
  • Questions? Contact our FREE Tech Support.


    Technical Specifications for GigaTrue CAT6 Channel Patch Cable with Basic Connectors, Purple, 3-ft. (0.9-m), 25-Pack:

    Attenuation 23.6 dB at 100 MHz; 39.1 dB at 250 MHz
    Conductor Gauge 24 AWG
    Delay Skew (Maximum) 25 ns/100 m (328 ft.)
    Impedance 100 ± 15 ohms at 100 MHz; 100 ± 22 ohms at 100–550 MHz
    Mutual Capacitance 56 pF/m (maximum)
    NEXT 45.0 dB at 100 MHz; 39.0 dB at 250 MHz
    PS-ACR 32 dB (typical) at 100 MHz
    PS-NEXT 43.0 dB at 100 MHz; 37.0 dB at 250 MHz
    Resistance (Maximum) 9.09 ohms/100 m (328 ft.)
    Return Loss 22.5 dB at 100 MHz; 20.5 dB at 250 MHz
    Standards TIA/EIA-568-B.2-1 Category 6
    Structured Return Loss 22.5 dB at 100 MHz; 20.5 dB at 250 MHz
    NOTE: This product works with all standard jacks, wallplates, and other RJ-45 hardware. Questions? Contact our FREE Tech Support.

    This cable works with:
  • GigaStation High-Density Multimedia Patch Panels
  • GigaTrue CAT6 Patch Panels
  • GigaTrue CAT6 Jacks
  • GigaTrue2 CAT6 Jacks
  • GigaStation Wallplates
  • GigaStation2 Wallplates
  • GigaStation2 Surface-Mount Housings
  • Snap Fittings
  • GigaStation2 Snap Fittings
  • Questions? Contact our FREE Tech Support.

    NOTE: Technical specification weight is the unit weight. It is not the packaged shipping weight. For shipping weight, please contact Black Box customer service at 877-877-2269.


    Connect your GigaTrue CAT6 Channel Patch Cable with Basic Connectors, Purple, 3-ft. (0.9-m), 25-Pack with:
