Cables > Copper Patch Cables


click photo to enlarge

EVNSL628

Photo may show similar product

Other views

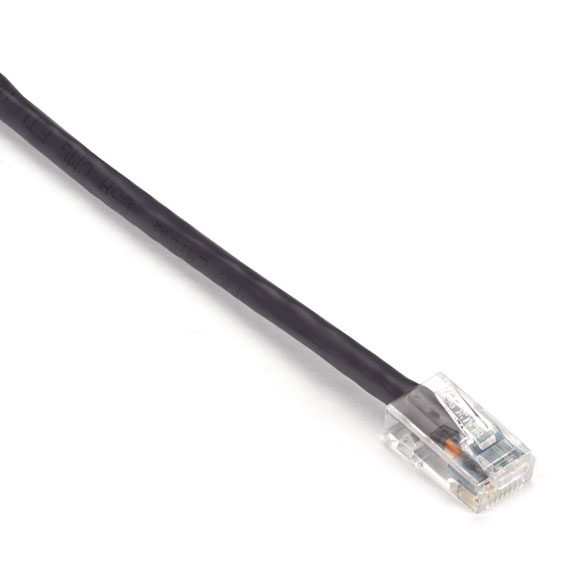

GigaTrue CAT6 Channel 550-MHz Patch Cable with Basic Connectors, Stranded, 24 AWG, RJ-45, 4-Pair, T568B, PVC, Straight-Pinned, Purple, Custom Lengths

The CAT6 cables for all high-performance applications.

EVNSL628

LIFETIME DoubleDiamond™ Warranty (Standard)

Product Highlights

  • New low prices!
  • Tested to 550 MHz.
  • Get high-level CAT6 performance in an end-to-end BLACK BOX® GigaTrue® channel.
  • Meet or exceed CAT6 specifications.
  • Guaranteed for life!


  • Further Details

  • Use in a BLACK BOX Guaranteed-for-Life Structured Cabling System with other GigaTrue components.
  • For 1000BASE-T, 100BASE-TX, 100BASE-VG, 155-Mbps ATM, 100-Mbps FDDI/CDDI, and other high-speed applications.
  • Perfect for full broadband and baseband video.
  • Stranded cable delivers full Power Sum performance.
  • Provide full-duplex operation for next-generation applications.
  • Meet balance requirements (LCL/LCTL), resulting in better transmission.
  • Improved attenuation provides cleaner data and video transmissions.


  • Attenuation 23.6 dB at 100 MHz; 39.1 dB at 250 MHz
    Conductor Gauge 24 AWG
    Delay Skew (Maximum) 25 ns/100 m (328 ft.)
    Impedance 100 ± 15 ohms at 100 MHz; 100 ± 22 ohms at 100–550 MHz
    Mutual Capacitance 56 pF/m (maximum)
    NEXT 45.0 dB at 100 MHz; 39.0 dB at 250 MHz
    PS-ACR 32 dB (typical) at 100 MHz
    PS-NEXT 43.0 dB at 100 MHz; 37.0 dB at 250 MHz
    Resistance (Maximum) 9.09 ohms/100 m (328 ft.)
    Return Loss 22.5 dB at 100 MHz; 20.5 dB at 250 MHz
    Standards TIA/EIA-568-B.2-1 Category 6
    Structured Return Loss 22.5 dB at 100 MHz; 20.5 dB at 250 MHz
    These cables work with:
  • GigaStation High-Density Multimedia Patch Panels
  • GigaTrue CAT6 Patch Panels
  • GigaTrue CAT6 Jacks
  • GigaTrue2 CAT6 Jacks
  • GigaStation Wallplates
  • GigaStation2 Wallplates
  • GigaStation2 Surface-Mount Housings
  • GigaStation Snap Fittings
  • GigaStation2 Snap Fittings
    Questions? Contact our FREE Tech Support.

    NOTE: Technical specification weight is the unit weight. It is not the packaged shipping weight. For shipping weight, please contact Black Box customer service at 1-800-316-7107.

  • Double Diamond Warranty
    LIFETIME DoubleDiamond™ Warranty (Standard)
    Diamond

    Double Diamond™ Warranty (Standard)

    Coverage:

    Take the risk out of equipment purchases with the Double Diamond™ Warranty from Black Box Network Services.


    The Double Diamond Warranty is our warranty that protects your Black Box® brand products* from accidental damage, including drops, water, and power surges.

    The GigaTrue CAT6 Channel 550-MHz Patch Cable with Basic Connectors, Stranded, 24 AWG, RJ-45, 4-Pair, T568B, PVC, Straight-Pinned, Purple, Custom Lengths comes with a standard Lifetime warranty already included.

    During the warranty period, Black Box Network Services will repair or replace your damaged equipment within one week of receipt at NO CHARGE!*

    Plus, get an Extended Double Diamond Warranty.


    You can also extend your warranty or protect a previously purchased Black Box® brand product** for an additional year—for only 10% of the purchase price! Or, extend your coverage for a full three years for only 20% of the purchase price!

    Ordering an extended warranty is easy: When viewing a product in your shopping cart, just select the one or three years of additional coverage in the dropdown menu under “Warranty Options.” For details, contact Customer Service at 724-746-5500.

    * Warranty subject to certain exclusions and limitations
    ** Certain products may not be eligible.

    What’s more, we also have a 45-day return policy. Simply call Customer Service for a Return Authorization (RA) number, return your product in new condition and in the original package, and receive a full refund.

    Product SKU Price Quantity
    GigaTrue CAT6 Channel Patch Cable with Basic Connectors, Gray, 3-ft. (0.9-m) EVNSL620-0003 $8.55

    GigaTrue CAT6 Channel Patch Cable with Basic Connectors, Gray, 7-ft. (2.1-m) EVNSL620-0007 $10.60

    GigaTrue CAT6 Channel Patch Cable with Basic Connectors, Gray, 10-ft. (3.0-m) EVNSL620-0010 $12.60

    GigaTrue CAT6 Channel Patch Cable with Basic Connectors, Gray, 15-ft. (4.5-m) EVNSL620-0015 $13.60

    GigaTrue CAT6 Channel Patch Cable with Basic Connectors, Blue, 4-ft. (1.2-m) EVNSL621-0004 $9.05

    GigaTrue CAT6 Channel Patch Cable with Basic Connectors, Blue, 5-ft. (1.5-m) EVNSL621-0005 $9.55

    GigaTrue CAT6 Channel Patch Cable with Basic Connectors, Blue, 7-ft. (2.1-m) EVNSL621-0007 $10.60

    GigaTrue CAT6 Channel Patch Cable with Basic Connectors, Blue, 25-ft. (7.6-m) EVNSL621-0025 $18.15

    GigaTrue CAT6 Channel Patch Cable with Basic Connectors, Orange, 3-ft. (0.9-m) EVNSL629-0003 $8.55

    GigaTrue CAT6 Channel Patch Cable with Basic Connectors, White, 10-ft. (3.0-m) EVNSL630-0010 $12.60



    Kit Pricing

    Starting At: $10.80

    On Back Order

    To order please call
    1-800-316-7107

    Please Note: Once ordered, this product cannot be cancelled or returned for credit.

    Shipping Info

    Weight: NotAvailable
    HxWxD: 0.01 x 0.01 x 0.01 in.
