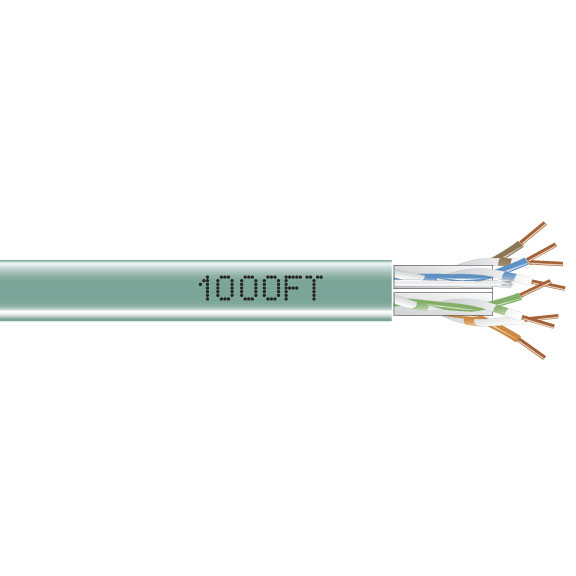

EYN878A-PB-1000

Photo may show similar product

Other views

GigaTrue® 550 CAT6, 550-MHz Solid Bulk Cable, 4-Pair, PVC, 1000-ft. (304.8-m), Pull Box, PVC, Green

Our 550-MHz cable exceeds CAT6 with plenty of headroom!

EYN878A-PB-1000

Extended Double Diamond™ Warranty Available
(Lifetime)

Product Highlights

  • This cable is part of our ETL-verfied GigaTrue® CAT6 channel solution.
  • Guaranteed for life!


  • Description

    GigaTrue® 550 CAT6, 550-MHz Solid Bulk Cable, 4-Pair, PVC, 1000-ft. (304.8-m), Pull Box, PVC, Green


    Quick Facts

  • This cable is part of our ETL-verfied GigaTrue® CAT6 channel solution.
  • Guaranteed for life!

  • Further Details

  • Guaranteed to meet or exceed ANSI/TIA/EIA-568-B.2-1 Category 6 and ISO/IEC 11801, Class E requirements.
  • Ideal for digital video, 100-Mbps TP-PMD, and 155-Mbps ATM networks, as well as applications such as Gigabit Ethernet and WideBand Ethernet.
  • Every master spool is tested for electrical performance.
  • Round cable features cross-web design for strength and performance.
  • Supports full- and half-duplex operation.
  • Features flame-retardant PVC jacket and polyolefin insulation.
  • 23 AWG.
  • Cable is marked in two-foot increments so you always know how much you have left.

  • This bulk cable features the Accu-Pull Measuring System: Descending sequential foot markings let you know exactly how much is left on the spool. No more guesswork or measuring to see how much cable you have left.


    Technical Specifications for GigaTrue® 550 CAT6, 550-MHz Solid Bulk Cable, 4-Pair, PVC, 1000-ft. (304.8-m), Pull Box, PVC, Green:

    ACR (Minimum) 29.9 dB at 100 MHz
    Attenuation (Maximum) 19.4 dB/100 m at 100 MHz; 49.9 dB/100 at 550 MHz
    Characteristic Impedance 1-550 MHz; 100 ± ohms
    Conductor 23 AWG, solid, bare copper
    Delay Skew (Maximum) 25 ns/100 m
    ELFEXT (Minimum) 29.8 dB at 100 MHz; 15 dB at 550 MHz
    Gauge 23 AWG, solid, bare copper
    Input Impedance 1-250 MHz: 100 ±15 ohms
    NEXT (Minimum) 49.3 dB at 100 MHz; 38.2 dB at 550 MHz
    PS-ACR (Minimum) 29.9 dB at 100 MHz
    PS-ELFEXT (Minimum) 26.8 dB at 100 MHz; 12 dB at 550 MHz
    PS-NEXT (Minimum) 47.3 dB at 100 MHz; 36.2 dB at 550 MHz
    Return Loss (Minimum) 20.1 dB at 100 MHz; 14.9 dB at 550 MHz
    Velocity of Propagation (Minimum) 62.2% at 550 MHz
    This product works with:
  • GigaStation High-Density Multimedia Patch Panels
  • GigaTrue CAT6 Patch Panels
  • GigaTrue CAT6 Jacks
  • GigaTrue2 CAT6 Jacks
    Questions? Contact our FREE Tech Support.

    NOTE: Technical specification weight is the unit weight. It is not the packaged shipping weight. For shipping weight, please contact Black Box customer service at 877-877-2269.

  • Resources for GigaTrue® 550 CAT6, 550-MHz Solid Bulk Cable, 4-Pair, PVC, 1000-ft. (304.8-m), Pull Box, PVC, Green:

    Product Data Sheets

    Application Diagrams

    Pdf Drawings

    • GigaTrue 550 CAT6, 550-MHz Solid Bulk Cable (4-Pair, PVC, Green) PDF Drawing
      PDF Drawing for the EYN878A-PB-1000 (1)

    Black Box Explains

    Videos


    Connect your GigaTrue® 550 CAT6, 550-MHz Solid Bulk Cable, 4-Pair, PVC, 1000-ft. (304.8-m), Pull Box, PVC, Green with:

    Accessory: FM630

    GigaTrue CAT6 Jack, Universal Wiring, Single-Pack, Blue

    GigaTrue CAT6 Jack, Universal Wiring, Single-Pack, Blue

    Accessory: JPM191A

    GigaStation High-Density Multimedia Patch Panel, 16-Port (1U)

    GigaStation High-Density Multimedia Patch Panel, 16-Port (1U)

    Accessory: WP456

    GigaStation Wallplate, 1-Port, Single-Gang, Office White

    GigaStation Wallplate, 1-Port, Single-Gang, Office White

    Accessory: WPT454

    GigaStation2 Wallplate, 1-Port Single-Gang, Ivory

    GigaStation2 Wallplate, 1-Port Single-Gang, Ivory

    Double Diamond Warranty

    Extended LIFETIME Warranty Available


    Protect your purchase with an additional LIFETIME Double Diamond™ warranty!
    Cost: $0.00

    Diamond

    Double Diamond™ Warranty (Standard)

    Coverage:

    Take the risk out of equipment purchases with the Double Diamond™ Warranty from Black Box Network Services.


    The Double Diamond Warranty is our warranty that protects your Black Box® brand products* from accidental damage, including drops, water, and power surges.

    The GigaTrue® 550 CAT6, 550-MHz Solid Bulk Cable, 4-Pair, PVC, 1000-ft. (304.8-m), Pull Box, PVC, Green comes with a standard Lifetime warranty already included.

    During the warranty period, Black Box Network Services will repair or replace your damaged equipment within one week of receipt at NO CHARGE!*

    Plus, get an Extended Double Diamond Warranty.


    You can also extend your warranty or protect a previously purchased Black Box® brand product** for an additional year—for only 10% of the purchase price! Or, extend your coverage for a full three years for only 20% of the purchase price!

    Ordering an extended warranty is easy: When viewing a product in your shopping cart, just select the one or three years of additional coverage in the dropdown menu under “Warranty Options.” For details, contact Customer Service at 724-746-5500.

    * Warranty subject to certain exclusions and limitations
    ** Certain products may not be eligible.

    What’s more, we also have a 45-day return policy. Simply call Customer Service for a Return Authorization (RA) number, return your product in new condition and in the original package, and receive a full refund.

    Product SKU Price Quantity
    GigaTrue 550 CAT6, 550-MHz Solid Bulk Cable, 4-Pair, PVC, Pull Box, 1000-ft. (304.8-m), Red EYN868A-PB-1000 $154.00

    GigaTrue® 550 CAT6, 550-MHz Solid Bulk Cable, 4-Pair, 1000-ft. (304.8-m), Pull Box, PVC, Blue EYN870A-PB-1000 $154.00

    GigaTrue 550 CAT6, 550-MHz Solid Bulk Cable, 4-Pair, PVC, Pull Box, 1000-ft. (304.8-m), Yellow EYN872A-PB-1000 $154.00

    GigaTrue® 550 CAT6, 550-MHz Solid Bulk Cable, 4-Pair, 1000-ft. (304.8-m), Pull Box, PVC, White EYN874A-PB-1000 $154.00

    GigaTrue 550 CAT6, 550-MHz Solid Bulk Cable, 4-Pair, 1000-ft. (304.8-m), Pull Box, PVC, Gray EYN876A-PB-1000 $154.00

    GigaTrue® 550 CAT6, 550-MHz Solid Bulk Cable, 4-Pair, 1000-ft. (304.8-m), Pull Box, PVC, Black EYN880A-PB-1000 $154.00

    You can find this product in the following subcategory(s)


    Add to Cart

    Price: $154.00

    Quantity Available: 335

    Quantity

    Warranty

    Total

    Shipping Info

    In Stock - orders received before 5PM ET ship same day

    Weight: 27 lbs.
    HxWxD: 16.75 x 9.75 x 16 in.

    What’s more, we also have a 45-day return policy. Simply call Customer Service for a Return Authorization (RA) number, return your product in new condition and in the original package, and receive a full refund.
