Infrastructure Hardware > Jacks & Wallplates

click photo to enlarge

FM920C

Photo may show similar product

Other views

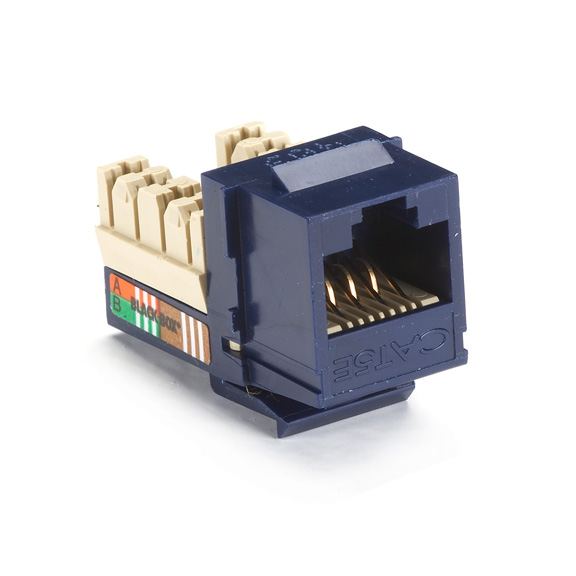

GigaBase Plus CAT5e Jack, Blue

The right jack for GigaBase Plus systems.

FM920C


Lifetime Warranty

Product Highlights

  • Provides a perfect fit for our GigaStation Plus Wallplates.
  • Meets TIA/EIA-568-B.2 CAT5e standards.
  • Data transmission rates up to 100 MHz.
  • Guaranteed for life!

  • Description

    GigaBase Plus CAT5e Jack, Blue


    Quick Facts

  • Provides a perfect fit for our GigaStation Plus Wallplates.
  • Meets TIA/EIA-568-B.2 CAT5e standards.
  • Data transmission rates up to 100 MHz.
  • Guaranteed for life!

  • Further Details

  • Provides excellent NEXT and PS-NEXT margins with superior reliability.
  • Low-profile wire cap protects against contamination and provides secure connections.
  • A wide channel enables advanced conductor placement and termination.
  • Universal termination for both T568A and T568B wiring schemes.
  • Completely backward compatible with CAT5 and CAT3 components.
  • Jack and outlet contacts are gold/nickel-plated copper alloy for outstanding transmission.
  • IDC contacts are tin-plated beryllium copper.
  • Terminate with a D-style impact tool or a wire cap.

  • This product works with:
    • GigaStation Plus Wallplates
    • GigaBase Plus CAT5e Cable
    Questions? Contact our FREE Tech Support.


    Technical Specifications for GigaBase Plus CAT5e Jack, Blue:

    Insertion Contacts — Jack and outlet: gold/nickel-plated copper alloy;
    IDCs: Tin-plated beryllium copper
    Standards — Category 5e
    Wire Gauge — 24 AWG stranded copper; 22–26 AWG solid copper
    This product works with:
    • GigaStation Plus Wallplates
    • GigaBase Plus CAT5e Cable
    Questions? Contact our FREE Tech Support.

    NOTE: Technical specification weight is the unit weight. It is not the packaged shipping weight. For shipping weight, please contact Black Box customer service at 877-877-2269.
