Jacks, Panels, & Hardware > Jacks


click photo to enlarge

FM921

Photo may show similar product

Other views

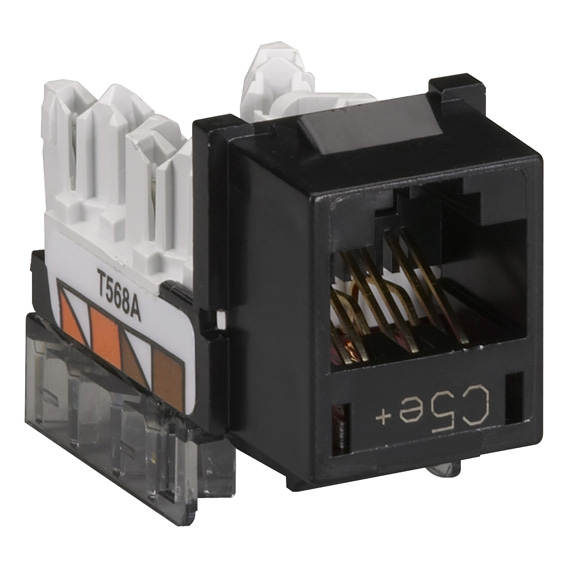

GigaBase CAT5e Jack, Universal Wiring, Single-Pack, Black

The right jack for GigaBase CAT5e performance.

FM921

LIFETIME DoubleDiamond™ Warranty (Standard)

Product Highlights

  • Standard keystone design enables mounting in GigaStation and GigaStation+ Wallplates.
  • Make easy, tool-less terminations. Use the termination retention stuffer cap. Or use a 110 tool if you prefer.
  • High-density, compact design is ideal for multimedia applications.
  • 25-packs are available.
  • Guaranteed for life!


  • Further Details

  • Angled, staggered IDC 110 contacts and printed circuit board design provide optimum performance.
  • No-confusion terminations. The unique universal wiring system labels clearly display T568A and T568B wiring schemes, eliminating confusion and simplifying termination.
  • The termination retention stuffer cap provides strain relief while enabling you to easily check terminations. It also serves as a 110 termination platform.
  • An innovative, dual-plane nose contact design improves performance.
  • A Hinged Dust Cover (FM931) protects your termination from dust and other environmental hazards.


  • Get ready to make the best—and easiest—terminations ever! Our jacks feature an innovative design with multiple, patent-pending features. You'll get better performing, stronger terminations in less time and with less confusion than ever.

    Color-coded.
    You'll find the termination process to be the fastest and easiest you've ever experienced. By using the universal wiring system, all you have to do is follow the easy-to-read labels on the jack. T568B is illustrated on the top of the jack for easy visibility when terminating. T568A is illustrated on both sides. Just follow the colors, and you'll eliminate pair confusion.

    Towers of power.
    Reduce installation time and increase performance with these jacks. Each termination tower is separated and paired for easy wire lacing and increased pair separation. The top of each tower is peaked to make pair splitting easier. The towers are also set at a 30° angle, decreasing the angle of wire insertion. This 30° offset increases transmission performance and reduces wire lacing time.

    Making contact.
    Hidden beneath the towers is a unique nose and IDC contact design. We coupled that with state-of-the-art printed circuit-board technology. The result is enhanced compensation, which improves overall performance.

    Double-duty.
    The one-piece termination retention stuffer cap serves multiple purposes. When terminating with a 110 punchdown tool, the cap acts as a termination platform. Or if you prefer to do tool-less termination, use the cap as an aid. Once you finish the termination, snap the cap into place for strain relief.

    Backwards and forwards.
    Designed for speed and performance, GigaBase CAT5e jacks are perfect for your new systems. But you can also use them in systems combined with older jacks. They are completely backwards compatible and conform to TIA/EIA standards.

    Nose Contacts Beryllium copper with a minimum 50 micro-inch gold plating over nickel
    IDC Contacts 100 micro-inch tin-lead 60/40 plated over phosphorus bronze
    Standards Category 5e


    NOTE: Technical specification weight is the unit weight. It is not the packaged shipping weight. For shipping weight, please contact Black Box customer service at 1-800-316-7107.

    Accessory: WP456

    GigaStation Wallplate, 1-Port, Single-Gang, Office White

    GigaStation Wallplate, 1-Port, Single-Gang, Office White

    Accessory: FM630

    GigaTrue CAT6 Jack, Universal Wiring, Single-Pack, Blue

    GigaTrue CAT6 Jack, Universal Wiring, Single-Pack, Blue

    Accessory: WP460

    GigaStation Wallplate, 2-Port, Single-Gang, Electric Ivory

    GigaStation Wallplate, 2-Port, Single-Gang, Electric Ivory

    Accessory: WP462

    GigaStation Wallplate, 2-Port, Single-Gang, Office White

    GigaStation Wallplate, 2-Port, Single-Gang, Office White

    Accessory: WP463

    GigaStation Wallplate, 2-Port, Single-Gang, Telco Ivory

    GigaStation Wallplate, 2-Port, Single-Gang, Telco Ivory

    Accessory: WP468

    GigaStation Wallplate, 3-Port, Single-Gang, Office White

    GigaStation Wallplate, 3-Port, Single-Gang, Office White

    Accessory: WP472

    GigaStation Wallplate, 4-Port, Single-Gang, Electric Ivory

    GigaStation Wallplate, 4-Port, Single-Gang, Electric Ivory

    Accessory: WP474

    GigaStation Wallplate, 4-Port, Single-Gang, Office White

    GigaStation Wallplate, 4-Port, Single-Gang, Office White

    Accessory: WP476

    GigaStation Wallplate, 4-Port, Single-Gang, White

    GigaStation Wallplate, 4-Port, Single-Gang, White

    Accessory: WP480

    GigaStation Wallplate, 6-Port, Single-Gang, Office White

    GigaStation Wallplate, 6-Port, Single-Gang, Office White

    Double Diamond Warranty
    LIFETIME DoubleDiamond™ Warranty (Standard)
    Diamond

    Double Diamond™ Warranty (Standard)

    Coverage:

    Take the risk out of equipment purchases with the Double Diamond™ Warranty from Black Box Network Services.


    The Double Diamond Warranty is our warranty that protects your Black Box® brand products* from accidental damage, including drops, water, and power surges.

    The GigaBase CAT5e Jack, Universal Wiring, Single-Pack, Black comes with a standard Lifetime warranty already included.

    During the warranty period, Black Box Network Services will repair or replace your damaged equipment within one week of receipt at NO CHARGE!*

    Plus, get an Extended Double Diamond Warranty.


    You can also extend your warranty or protect a previously purchased Black Box® brand product** for an additional year—for only 10% of the purchase price! Or, extend your coverage for a full three years for only 20% of the purchase price!

    Ordering an extended warranty is easy: When viewing a product in your shopping cart, just select the one or three years of additional coverage in the dropdown menu under “Warranty Options.” For details, contact Customer Service at 724-746-5500.

    * Warranty subject to certain exclusions and limitations
    ** Certain products may not be eligible.

    What’s more, we also have a 45-day return policy. Simply call Customer Service for a Return Authorization (RA) number, return your product in new condition and in the original package, and receive a full refund.

    Product SKU Price Quantity
    GigaBase CAT5e Jack, Universal Wiring, Single-Pack, Blue FM920 $8.05

    GigaBase CAT5e Jacks, Universal Wiring, 25-Pack, Blue FM920-25PAK $156.50

    GigaBase CAT5e Jack, Universal Wiring, Single-Pack, Electric Ivory FM922 $8.05

    GigaBase CAT5e Jack, Universal Wiring, Single-Pack, Gray FM923 $8.05

    GigaBase CAT5e Jack, Universal Wiring, Single-Pack, Green FM924 $8.05

    GigaBase CAT5e Jacks, Universal Wiring, 25-Pack, Office White FM925-25PAK $156.50

    GigaBase CAT5e Jack, Universal Wiring, Single-Pack, Orange FM926 $8.05

    GigaBase CAT5e Jack, Universal Wiring, Single-Pack, Red FM927 $8.05

    GigaBase CAT5e Jack, Universal Wiring, Single-Pack, White FM929 $8.05

    GigaBase CAT5e Jack, Universal Wiring, Single-Pack, Yellow FM930 $8.05

    You can find this product in the following subcategory(s)


    Add to Cart

    Price: $8.05

    Quantity Available: 214

    Quantity

    Warranty

    Total

    Shipping Info

    In Stock - orders received before 5PM ET ship same day

    Weight: 0.031 lbs.
    HxWxD: 0.6 x 0.6 x 1 in.
