EYN0739A-R

Photo may show similar product

Other views

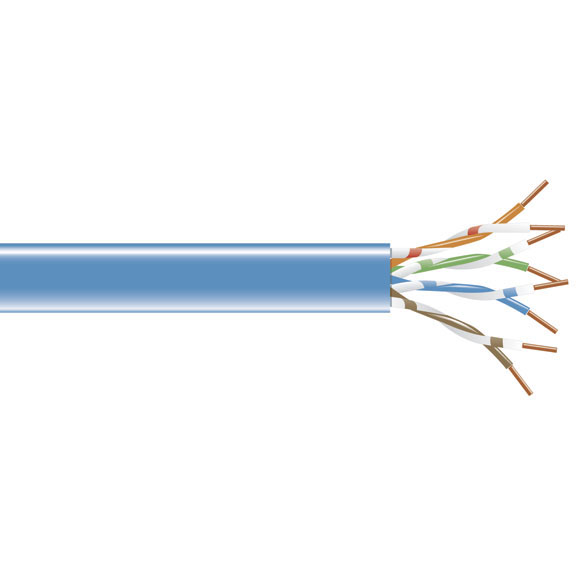

GigaBase 200 CAT5e, 200-MHz Bulk Cable, PVC, Blue, 1000-ft. (304.8-m)

High-quality CAT5e cable for 200-MHz runs.

EYN0739A-R

Extended Double Diamond™ Warranty Available
(Lifetime)

Product Highlights

  • The right cable for long horizontal and backbone CAT5e runs.
  • 24-AWG, solid conductor.
  • Guaranteed for life!

  • Description

    GigaBase 200 CAT5e, 200-MHz Bulk Cable, PVC, Blue, 1000-ft. (304.8-m)


    Quick Facts

  • The right cable for long horizontal and backbone CAT5e runs.
  • 24-AWG, solid conductor.
  • Guaranteed for life!

  • Further Details

  • Supports applications such as 10BASE-T, 100BASE-TX, 155-Mbps ATM as well as applications such as 622-Mbps ATM and Gigabit Ethernet. Certified for use in the WideBand™ networking system.
  • Meets or exceeds minimum standards for CAT5e.
  • Tested to 200 MHz.
  • For custom colors, contact our FREE Tech Support.


  • NOTE: Cable comes on spools unless otherwise noted.

    This product works with:
  • GigaStation High-Density Multimedia Patch Panels
  • GigaBase CAT5e Patch Panels
  • GigaBase CAT5e Jacks
  • GigaBase2 CAT5e Jacks
  • GigaStation Wallplates
  • GigaStation2 Wallplates
  • CAT5e Termination Kit
  • CAT5e Modular Plugs
  • Color-coded Flex Plugs and Pre-Plugs
  • Questions? Contact our FREE Tech Support.


    Technical Specifications for GigaBase 200 CAT5e, 200-MHz Bulk Cable, PVC, Blue, 1000-ft. (304.8-m):

    Attenuation (Maximum) 22 dB/100 m typical at 100 MHz
    Cable Type 4-pair UTP
    Capacitance (Nominal) 15 pF/ft. at 1 kHz
    Conductors — 24 AWG, solid copper
    Delay Skew (Maximum) — 45 ns/100 m
    Impedance 100 ± 15 ohms at 100 MHz; 100 ± 25 ohms at 200 MHz
    NEXT (Minimum) 35.3 dB at 100 MHz
    PS-ACR — 11 dB at 100 MHz
    PS-ELFEXT (Minimum) 20.8 dB/100 m at 100 MHz
    PS-NEXT (Minimum) — 32.3 dB at 100 MHz
    Return Loss (Minimum) 20.1 dB at 100 MHz
    Velocity of Propagation (Nominal) 70%
    Weight 22 lb./1000 ft. (10 kg/304.8 m)

    NOTE: Cable comes on spools unless otherwise noted.

    This product works with:
  • GigaStation High-Density Multimedia Patch Panels
  • GigaBase CAT5e Patch Panels
  • GigaBase CAT5e Jacks
  • GigaBase2 CAT5e Jacks
  • GigaStation Wallplates
  • GigaStation2 Wallplates
  • CAT5e Termination Kit
  • CAT5e Modular Plugs
  • Color-coded Flex Plugs and Pre-Plugs
  • Questions? Contact our FREE Tech Support.

    NOTE: Technical specification weight is the unit weight. It is not the packaged shipping weight. For shipping weight, please contact Black Box customer service at 877-877-2269.
